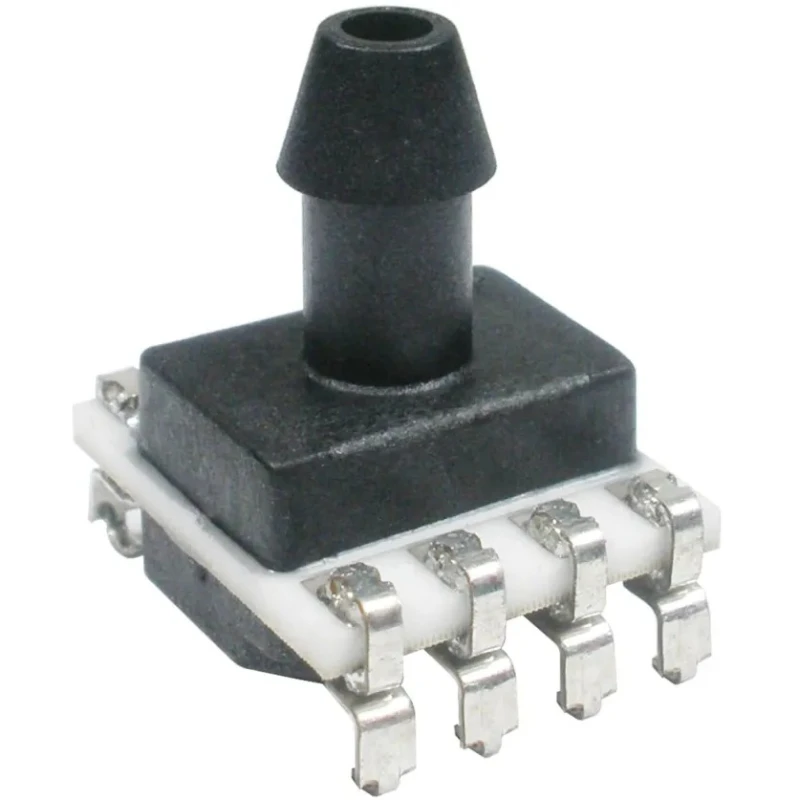

Honeywell Technologies Absolute Pressure Sensor Board 8 SMT, Piezoresistive, 3.3-5V, ±0.25% Accuracy, 60 psi HSCMAND060PA3A3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 60 psi |
| Height | 13.75mm |
| Length | 10mm |
| Model | HSCMAND060PA3A3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 13.3mm |
| Mount Type | Board |
| Series | HSC |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO 9001 |
| Pin Count | 8 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 120psi |
Key Features
- Operates from a single 3.3V or 5V supply voltage suitable for common systems.
- Compact SMT board mount design with 8 pins enables easy PCB integration.
- Temperature range from -20°C to +85°C for versatile deployment.
- Supports ratiometric analogue or 14-bit digital output compatible with I2C or SPI.
- Low power consumption of less than 10 mW extends battery life in portable applications.
- Maximum overload pressure rating of 120 psi ensures robustness against pressure spikes.
- Designed for measuring absolute pressure of non-corrosive, non-ionic gases and select liquids.
- ISO 9001 certified manufacturing ensuring quality and reliability.
Product Description
Honeywell Technologies HSCMAND060PA3A3 Absolute Pressure Sensor Board 8 SMT is a high-precision piezoresistive sensor designed to measure absolute pressure with a maximum operating pressure of 60 psi and accuracy of ±0.25%. It operates from a single supply voltage between 3.3V and 5V and provides ratiometric analogue or digital outputs, suitable for interfacing with microcontrollers via I2C or SPI communication protocols.
The sensor board features a compact surface-mount technology (SMT) package with an 8-pin configuration, enabling straightforward integration into compact electronic assemblies and PCB designs. It is temperature characterized for reliable operation in harsh environments ranging from -20°C to +85°C. The unit's low power consumption of under 10 milliwatts is ideal for battery-powered and portable devices.
Honeywell's HSC series sensor provides stable and accurate pressure readings for non-corrosive, non-ionic gases and certain liquid media when used with appropriate ports. The maximum overload pressure rating of 120 psi allows for protection against pressure surges. The device meets ISO 9001 quality standards, ensuring consistent manufacturing quality.
Applications for the HSCMAND060PA3A3 sensor include medical respiratory monitoring equipment, HVAC flow monitoring and clogged-filter detection systems, gas flow instrumentation, chromatography, barometry, environmental monitoring, and industrial pneumatic control systems. Its robust design makes it suitable for a broad range of industrial, laboratory, HVAC, and environmental use cases.
Operates on a single 3.3V to 5V supply voltage compatible with common power systems. Provides both ratiometric analogue output and 14-bit digital output with I2C/SPI interfaces. Compact SMT board mount design with 8-pin package for easy PCB integration.
Temperature range of -20°C to +85°C supports harsh environment deployment. Low power consumption under 10 mW extends operational time on battery-powered equipment. Maximum overload handling of 120 psi for enhanced reliability.
Approved to ISO 9001 standards ensuring high-quality manufacturing. Explore other advanced sensor ICs in the Electronics & Electricals category at EnvMart for comprehensive industrial and laboratory solutions.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 60 psi.
It has an accuracy of ±0.25%.
This sensor operates with a supply voltage range of 3.3V to 5V.
It provides both ratiometric analogue output and 14-bit digital output compatible with I2C or SPI interfaces.
The operating temperature range is from -20°C to +85°C.
The SMT board features an 8-pin configuration.
The maximum overload pressure rating is 120 psi.
The height of this model is 13.75 mm.
It is designed for measuring absolute pressure of non-corrosive, non-ionic gases and select liquids.
The sensor comes in a surface-mount technology (SMT) package.
It is manufactured according to ISO 9001 standards.
It is suitable for applications such as medical respiratory monitoring, HVAC flow monitoring, and environmental monitoring.
