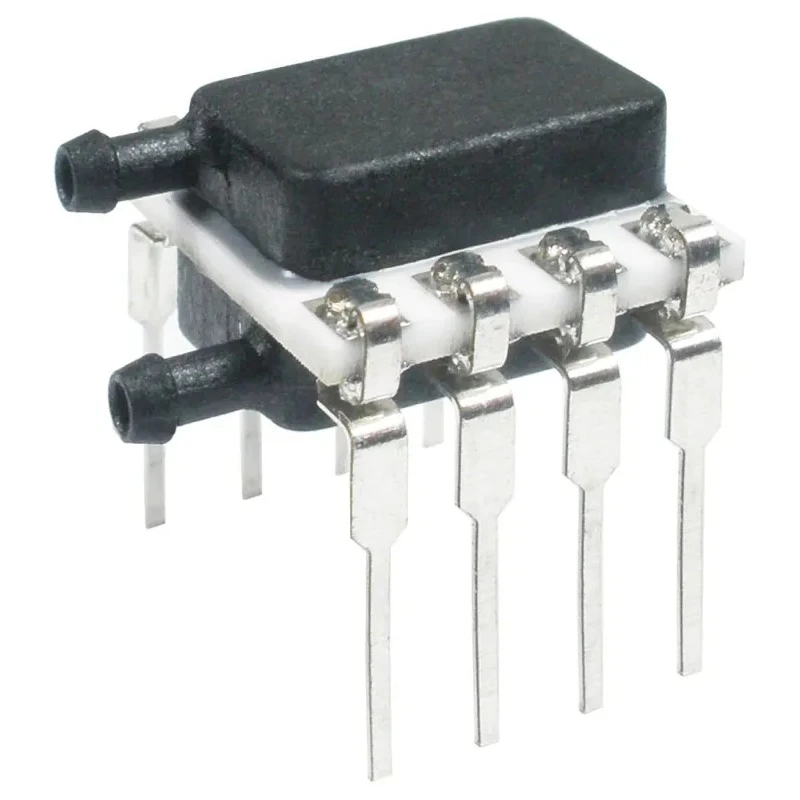

Honeywell Technologies Pressure Sensor Board, Piezoresistive, 8 Pin DIP, ±0.25% Accuracy, Dual Radial Barbed HSCDRRD002NDAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 2 in/H2O |
| Height | 13.75mm |
| Length | 10mm |
| Model | HSCDRRD002NDAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 13.3mm |
| Mount Type | Board |
| Series | HSC |
| Maximum Operating Temperature | +85°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO 9001 |
| Pin Count | 8 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | -2in/H2O |
Key Features
- Provides ±0.25% accuracy reducing software calibration requirements.
- Operates from a single 3.3 V to 5 V supply for easy integration.
- Dual radial barbed ports simplify tubing connections.
- Temperature compensated via on-board ASIC for stable readings between -20°C and +85°C.
- Suitable for airflow monitoring, HVAC filter clog detection, and medical instruments.
- Offers ratiometric analogue and 14-bit digital outputs compatible with I2C or SPI interfaces.
- Compact board-mount DIP package with 8 pins and dimensions 13.75mm height, 13.3mm width, 10mm length.
- Complies with ISO 9001 standards ensuring reliability and quality.
Product Description
Honeywell Technologies HSCDRRD002NDAA5 is a differential pressure sensor board designed for precise measurement of pressure differences in non-corrosive, non-ionic gases and selected liquids. This piezoresistive sensor utilizes an onboard ASIC for temperature compensation across a wide operating range from -20°C to +85°C, ensuring stable and accurate pressure readings with ±0.25% accuracy.
The sensor operates from a minimum supply voltage of 3.3 V up to 5 V, making it straightforward to integrate into various industrial and medical systems. Its dual radial barbed pressure ports allow for easy and secure tubing connections, while the 8-pin DIP package provides compatibility with standard PCB mounting methods.
Its applications include airflow monitoring in respiratory equipment, HVAC filter clog detection, gas flow instrumentation, chromatography, ventilation control, variable air volume (VAV) systems, and life sciences instrumentation. The sensor outputs both ratiometric analogue and 14-bit digital signals compatible with I2C or SPI communication protocols for direct microprocessor interfacing.
Built to meet ISO 9001 quality standards, this pressure sensor withstands industry-standard vibration and shock tests and is rated for long lifecycle reliability with specified overpressure and burst limits. Its compact form factor with dimensions of 13.75 mm height, 13.3 mm width, and 10 mm length fits versatile PCB layouts.
±0.25% accuracy reduces calibration efforts. Single 3.3 V to 5 V supply simplifies integration. Dual radial barbed ports for ease of tubing connectivity. Wide temperature range compensation via onboard ASIC. Suitable for medical, HVAC, and industrial monitoring applications.
Ratiometric analogue and digital outputs with I2C/SPI interfaces. Compact DIP package with 8 pins and small footprint. ISO 9001 certified quality and reliability.
This product is ideal for use in industrial, medical, HVAC, and laboratory environments requiring reliable differential pressure measurement. Explore more Pressure Sensor ICs and related electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor provides an accuracy of ±0.25%.
It operates within a temperature range of -20°C to +85°C.
It features dual radial barbed pressure ports for easy tubing connections.
The dimensions are 13.75 mm in height, 13.3 mm in width, and 10 mm in length.
The sensor operates from a minimum supply voltage of 3.3 V up to a maximum of 5 V.
It offers both ratiometric analogue and 14-bit digital outputs compatible with I2C or SPI interfaces.
The maximum operating pressure is 2 in/H2O.
It is designed for board mounting with an 8-pin DIP package.
It is suitable for airflow monitoring, HVAC filter clog detection, and medical instruments.
It complies with ISO 9001 standards, ensuring reliability and quality.
The minimum operating pressure is -2 in/H2O.
It utilizes a piezoresistive pressure sensor type.
