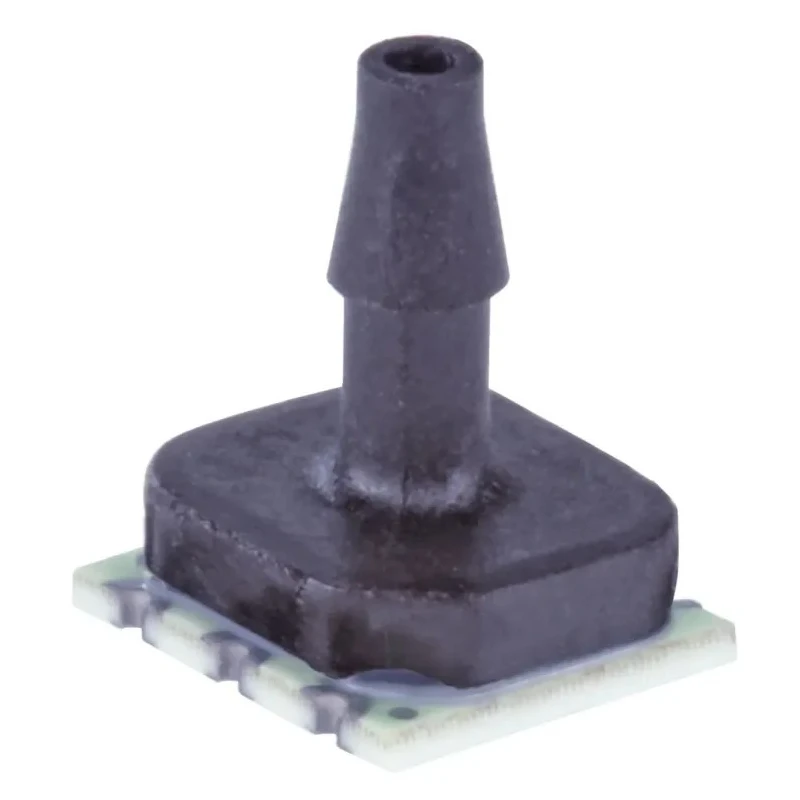

Honeywell Technologies ABP Series Gauge Pressure Sensor Board 6 Leadless SMT, 30 psi Max Operating Pressure ABPLANT030PG2A3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 30 psi |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPLANT030PG2A3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | Leadless SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 250psi |
Key Features
- Provides precise pressure measurement relative to ambient pressure.
- Operates from a single 3.3V or 5V supply, suitable for board mounting.
- Features onboard signal conditioning and temperature compensation.
- Supports measurement of dry gases and, with gel coating, compatible with non-corrosive liquids.
- Compact 6-pin leadless SMT package for space-efficient integration.
- Offers sleep mode to reduce power consumption for battery-powered applications.
- Digital update rate up to 2 kHz for fast pressure reporting.
- Certified food-safety materials with BPA Free, LFGB, NSF-169 standards.
Product Description
Honeywell Technologies ABPLANT030PG2A3 is a gauge pressure sensor board with a 6-pin leadless SMT package, designed for precise pressure measurement up to 30 psi with ±0.25% accuracy. It operates on a single 3.3V or 5V supply, making it highly suitable for compact board-mount applications in industrial, commercial, and medical systems.
This sensor integrates silicon piezoresistive technology with onboard signal conditioning and temperature compensation, ensuring reliable output under varying environmental conditions. The device supports measurement of dry gases and, when equipped with a silicone-based gel coating, can interface with non-corrosive liquids and condensating environments, broadening its usability.
The compact form factor with 6 leadless SMT pins facilitates efficient PCB integration. Its fast digital update rate of 2 kHz ensures real-time pressure monitoring, while sleep mode capability optimizes power consumption for portable and battery-operated devices.
The ABP series sensor meets stringent food safety requirements with BPA Free, LFGB, and NSF-169 certifications, harnessing high-quality material standards. It operates reliably across a wide temperature range from -40°C to +85°C and is manufactured under ISO 9001 quality standards, suitable for automotive and other demanding applications.
Precise gauge pressure measurement with ±0.25% accuracy. Compatible with dry gases and non-corrosive liquids using gel coating. Compact 6-pin leadless SMT mounting for PCB integration. Operates on 3.3V or 5V single supply voltages.
Fast 2 kHz digital update rate for responsive monitoring. Sleep mode reduces power consumption for battery operations. Wide operating temperature range from -40°C to +85°C. Food-safe materials certified to BPA Free, LFGB, and NSF-169 standards.
Manufactured under ISO 9001 quality management system. Suitable for industrial, commercial, medical, and automotive systems.
This pressure sensor board is ideal for applications including CPAP and ventilator pressure monitoring, coffee machines, water appliance controls, pneumatic systems, valve positioners, process gas monitoring, and patient monitoring equipment. Its high accuracy and compact design facilitate integration into sophisticated sensor systems requiring reliable low-pressure measurement.
Explore more Pressure Sensor ICs and related components in our Electronics & Electricals category on EnvMart for diverse industrial and laboratory applications. Enhance your designs with high-quality Honeywell sensor technology trusted globally.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 30 psi.
It has an accuracy of ±0.25%.
This sensor operates on a single supply voltage of either 3.3V or 5V.
It features a digital update rate of up to 2 kHz for fast pressure reporting.
The sensor has a height of 10.63 mm, a length of 7.3 mm, and a width of 6.3 mm.
It is designed for board mounting with a leadless SMT package.
The operating temperature range is from -40°C to +85°C.
It is made from food-safe materials and is certified to BPA Free, LFGB, and NSF-169 standards.
It supports measurement of dry gases and, with a gel coating, can measure non-corrosive liquids.
The maximum overload pressure is 250 psi.
It is manufactured under the ISO 9001 quality management system.
It is suitable for applications including CPAP and ventilator pressure monitoring, coffee machines, and water appliance controls.
