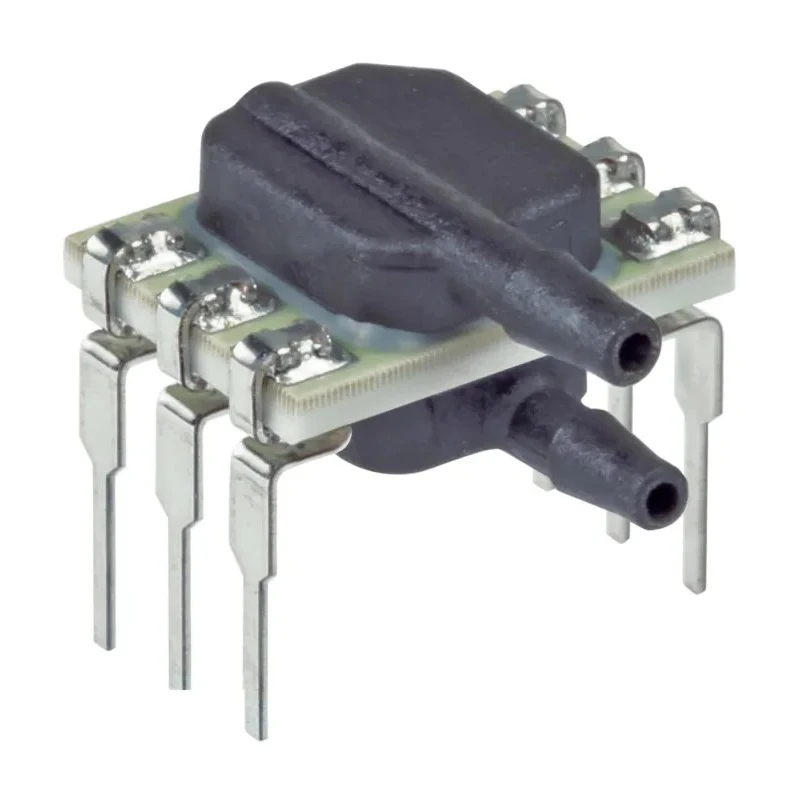

Honeywell Technologies Gauge Pressure Sensor Board, ±0.25% Accuracy, 60 mbar, DIP 6 Pin Package ABPDRRV060MGAA5

Honeywell Technologies ABPDRRV060MGAA5 is a precision gauge pressure sensor board designed for accurate low-pressure measurement up to 60 mbar. Featuring a 6-pin DIP package, this sensor is engineered for board-mounted systems and includes an on-board ASIC for calibration and temperature compensation. It operates on supply voltages between 3.3 V and 5 V, providing design flexibility for embedded applications.

The sensor offers ±0.25% full scale span accuracy and a total error band ±1.5% across the compensated temperature range, ensuring reliable measurements. Its temperature range spans from -40°C to +85°C, making it suitable for various environmental conditions. Mechanical connectivity is provided via dual radial barbed ports, facilitating secure tubing connections.

The ABPDRRV060MGAA5 supports both ratiometric analog output and a 12-bit digital interface compatible with I2C and SPI communication protocols, enabling seamless integration with microcontrollers and electronic systems. The device is designed for long-term stability with a ±0.25%FSS drift over extended use and features a sleep mode that reduces current consumption to microamp levels, optimizing battery-powered applications.

This pressure sensor board is applicable in medical devices such as CPAP and ventilator pressure monitoring, pneumatic control and valve positioning systems, process gas monitoring in various industries, blood analysis, patient monitoring equipment, as well as household appliances like coffee makers. The sensor is manufactured according to ISO 9001 standards under the ABP series and conforms to BPA Free, LFGB, and NSF-169 standards.

±0.25% accuracy for precise pressure measurement. Maximum operating pressure is 60 mbar with 2000 mbar overload protection. Temperature-compensated for operation between -40°C and +85°C. Dual radial barbed ports facilitate secure mechanical connections.

Supply voltage range from -0.3 V minimum to 5 V maximum. 6-pin DIP package suitable for board mounting. Meets ISO 9001 automotive standards ensuring quality and reliability. Robust against vibration and shock; rated for at least one million pressure cycles.

This Honeywell ABP series sensor board is ideal for industrial, laboratory, medical, HVAC, and consumer product applications requiring reliable and precise pressure sensing capabilities. Explore additional sensor options and components through EnvMart for your electronic and measurement system needs.
