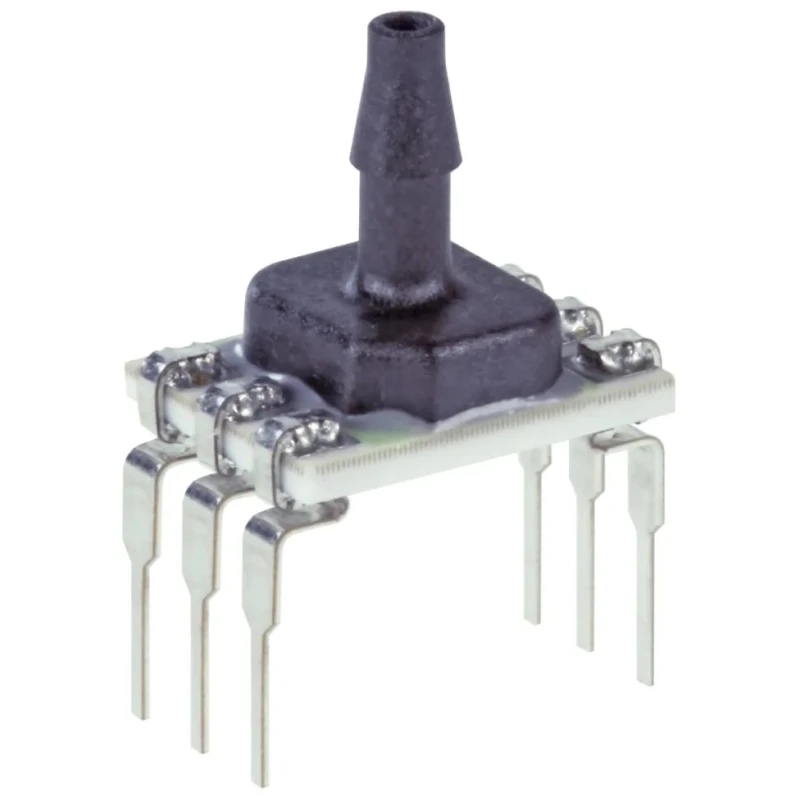

Honeywell Technologies ABPDANV060PGAA5 Piezoresistive Pressure Sensor Board 6-Pin DIP 60 psi ±0.25% Accuracy ABPDANV060PGAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 60 psi |
| Height | 3.63mm |
| Length | 7.3mm |
| Model | ABPDANV060PGAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 250psi |
Key Features
- Compact 6-pin DIP package board mount for easy PCB integration.
- Supports operating voltages from -0.3V to 5V for versatile power supply options.
- Wide operating temperature range from -40°C to +85°C suitable for industrial and medical environments.
- Single axial barbed port for secure and reliable fluid or gas connections.
- Calibrated with on-board ASIC for temperature compensation and offset correction.
- Compliant with BPA Free, LFGB, and NSF-169 standards for safe food-contact applications.
- Robust ISO 9001 automotive-grade quality certification ensures reliability.
- Designed for applications including ventilators, pneumatic controls, CPAP devices, and industrial gas monitoring.
Product Description
Honeywell Technologies ABPDANV060PGAA5 is a highly accurate piezoresistive pressure sensor board designed for precision pressure measurement up to 60 psi. It features a compact 6-pin DIP package optimized for board mounting, simplifying integration into PCB systems. The sensor delivers a conditioned ratiometric output with calibrated compensation for temperature and offset effects, maintaining stable readings across its operating span while requiring only a single 5V supply voltage.
This sensor supports a broad operating temperature range from -40°C to +85°C, making it suitable for diverse industrial and medical applications. The single axial barbed port enables secure tubing connection compatible with dry, non-corrosive gases, or silicone gel for liquid media tolerance. Its certifications including BPA Free, LFGB, and NSF-169 highlight its suitability in food-contact and hygienic applications.
The ABPDANV060PGAA5 is compliant with ISO 9001 automotive standards, ensuring consistent quality and durability. Applications include ventilators and patient monitoring equipment, pneumatic valve position feedback, CPAP and sleep-apnea devices, coffee and washing machine pressure control, and industrial process gas monitoring.
The device supports both ratiometric analog outputs and 12-bit digital outputs compatible with I2C and SPI interfaces. Output updates occur at approximately 1 kHz analog and 2 kHz digital, providing rapid response for control systems.
Compact 6-pin DIP board mount for easy integration. Wide operating temperature from -40°C to +85°C. ±0.25% accuracy ensures precise measurements. Single axial barbed port for reliable fluid connections. BPA Free, LFGB, NSF-169 compliant for food contact safety.
Calibrated ASIC compensates for temperature and offset. ISO 9001 certified quality for automotive and industrial use. Suitable for medical devices, pneumatic controls, and industrial gas monitoring. Explore more from Honeywell and related Pressure Sensor ICs on EnvMart for industrial, medical, and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Honeywell ABPDANV060PGAA5 pressure sensor is 60 psi.
This model has an accuracy of ±0.25%.
The operating temperature range is from -40°C to +85°C.
It provides both ratiometric analog outputs and 12-bit digital outputs compatible with I2C and SPI interfaces.
The sensor supports a supply voltage range from -0.3V to 5V.
It features a single axial barbed port for secure tubing connections.
The dimensions are 7.3mm in length, 6.3mm in width, and 3.63mm in height.
It is compliant with BPA Free, LFGB, NSF-169 standards and has ISO 9001 automotive-grade certification.
This sensor is suitable for applications including ventilators, pneumatic controls, CPAP devices, and industrial gas monitoring.
It is calibrated with an on-board ASIC for temperature compensation and offset correction.
The maximum overload pressure is 250 psi.
This model is designed for board mounting in a compact 6-pin DIP package.
