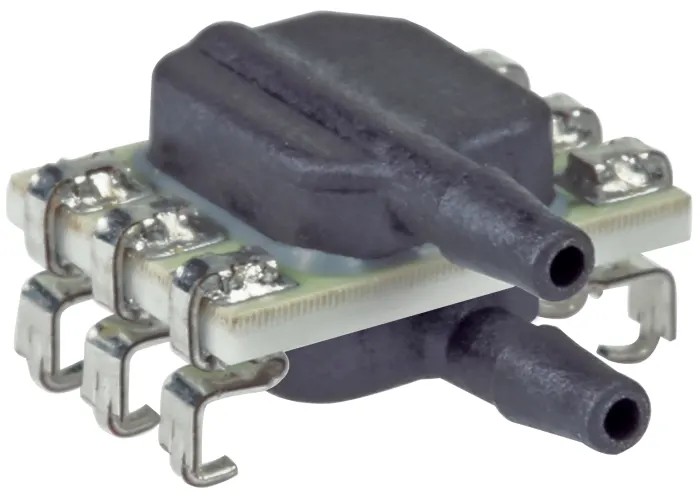

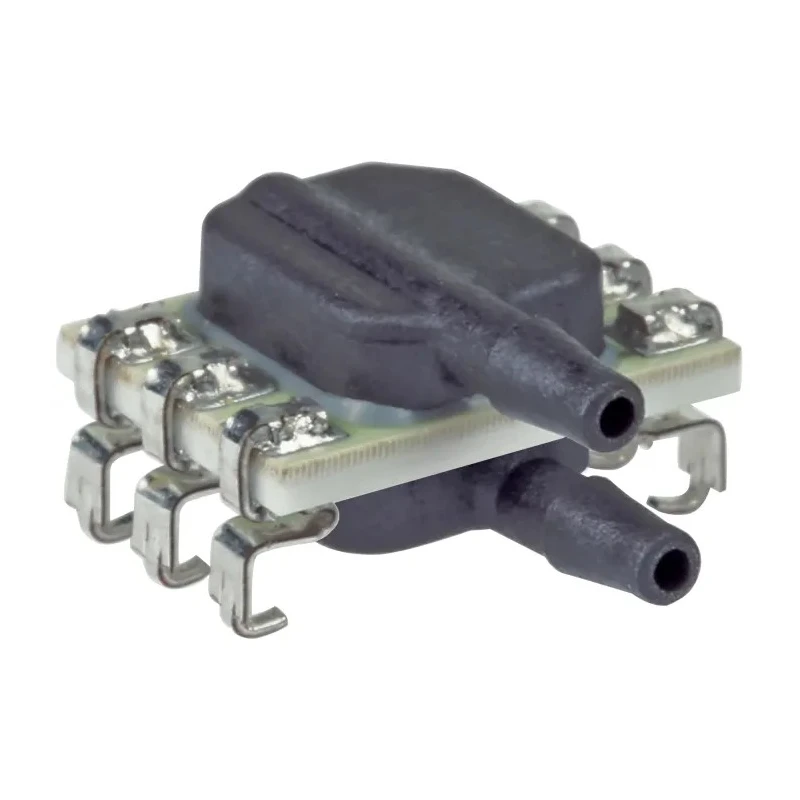

Honeywell Technologies Differential Pressure Sensor Board 6 SMT 5 psi Operating Pressure ±0.25% Accuracy ABPMRRN005PD2A3

Honeywell ABPMRRN005PD2A3 Differential Pressure Sensor Board 6 SMT is a high precision gauge pressure sensor designed to measure differential pressure with ±0.25% accuracy. It operates with a supply voltage range from 3 to 6 V and supports a maximum operating pressure of 5 psi, making it suitable for compact PCB integration through its SMT package with six pins.

This sensor is calibrated and temperature compensated to reduce drift, functioning reliably across a wide temperature range from -40°C to 85°C. The device offers both ratiometric analogue and 12-bit digital output with fast update rates of up to 1 kHz analogue and 2 kHz digital over I2C or SPI interfaces, supporting real-time pressure monitoring in demanding applications.

With dual radial barbed ports, the sensor can perform wet-wet differential sensing and is designed to work with dry gases or non-corrosive liquids when equipped with a silicone-gel coating for condensation tolerance. The robust design supports a high maximum overload pressure of 250 psi, ensuring operational durability under harsh mechanical stress.

Measuring just 7.3 mm in length, 6.3 mm in width, and 10.63 mm in height, this compact sensor is ideal for integration in industrial instruments used in HVAC regulation, medical ventilators, patient monitoring systems, portable oxygen concentrators, CPAP and sleep apnea equipment, as well as process gas monitoring in various industrial environments.

The sensor features a board-mount SMT package with six pins for compact PCB integration. Operates on a low voltage range of 3 to 6 volts for flexible electronic designs. Includes dual radial barbed ports allowing wet-wet differential sensing capability.

Calibrated and temperature compensated for stable readings over a -40°C to 85°C operating temperature range. Measures gauge and differential pressures with a high update rate of approximately 1 kHz analogue and 2 kHz digital output.

Designed for use with dry gases or non-corrosive liquids with optional silicone-gel coating for condensation tolerance. Compact dimensions of 7.3 mm length, 6.3 mm width, and 10.63 mm height. High maximum overload pressure of 250 psi ensures durability in harsh environments.

Ideal for medical ventilators, HVAC systems, pneumatic control, and industrial gas monitoring. Explore more advanced Pressure Sensor ICs and related solutions at EnvMart's Electronics & Electricals Sensors category.
