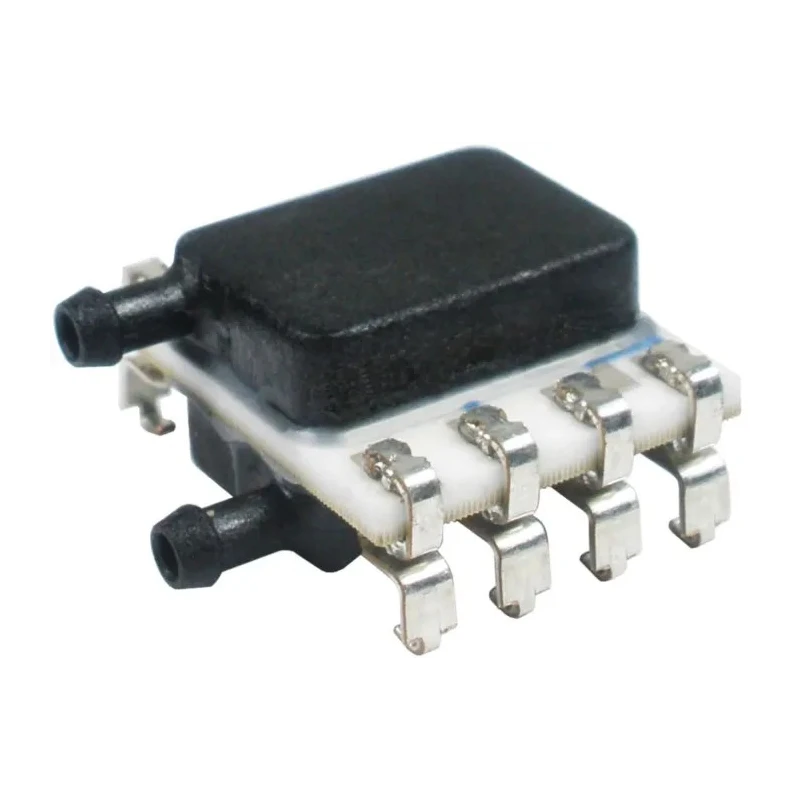

Honeywell Technologies Differential Pressure Sensor Board SMT 3.3-5V 8-Pin ±0.25% Accuracy HSCMRRN001PD2A3

Honeywell Technologies HSCMRRN001PD2A3 is a high-precision differential pressure sensor board designed for reliable pressure monitoring applications in industrial, medical, HVAC, and laboratory equipment. With an 8-pin SMT package mount, this piezoresistive pressure sensor operates between a 3.3V to 5V supply voltage and provides an amplified, compensated output that simplifies system integration on compact electronic assemblies.

The sensor measures differential pressure through dual radial barbed ports, accommodating non-corrosive and non-ionic gases such as air. It supports low-range detection with a minimum operating pressure of 1 psi and can withstand a maximum pressure of 6.89 kPa with an overload tolerance up to 200 kPa for protection against incidental pressure spikes. The device’s accuracy is ±0.25%, minimizing software calibration efforts and ensuring precise measurements.

Temperature compensation is handled by an internal ASIC, which stabilizes offset, sensitivity, and non-linearity across the device’s operating temperature range of -20°C to +85°C. This makes it well-suited for critical environments, including ventilator and respiratory machine pressure sensing, HVAC systems for filter clog detection and VAV controls, gas flow instrumentation, chromatography analyzers, and oxygen concentrator applications.

Its compact surface mount design enables direct board mounting on printed circuit boards, optimizing space and assembly efficiency. The sensor’s low power requirements support battery-powered applications while maintaining consistent performance. The component complies with ISO 9001 automotive standards, ensuring quality and reliability in demanding operational conditions.

Provides compensated and amplified differential pressure output for accurate monitoring. Dual radial barbed ports facilitate convenient tubing connections. Wide operating temperature range supports diverse environmental conditions.

Low minimum supply voltage enables flexible power integration. Robust construction with 200 kPa overload pressure protection. Ideal for medical, HVAC, industrial, and laboratory pressure sensing applications. Compliant with ISO 9001 quality standards ensuring consistent reliability.

This Honeywell differential pressure sensor board is an essential component for precise pressure measurement tasks in varied industrial, laboratory, HVAC, and medical contexts. EnvMart offers this sensor with guaranteed quality and technical support for seamless integration into your systems.
