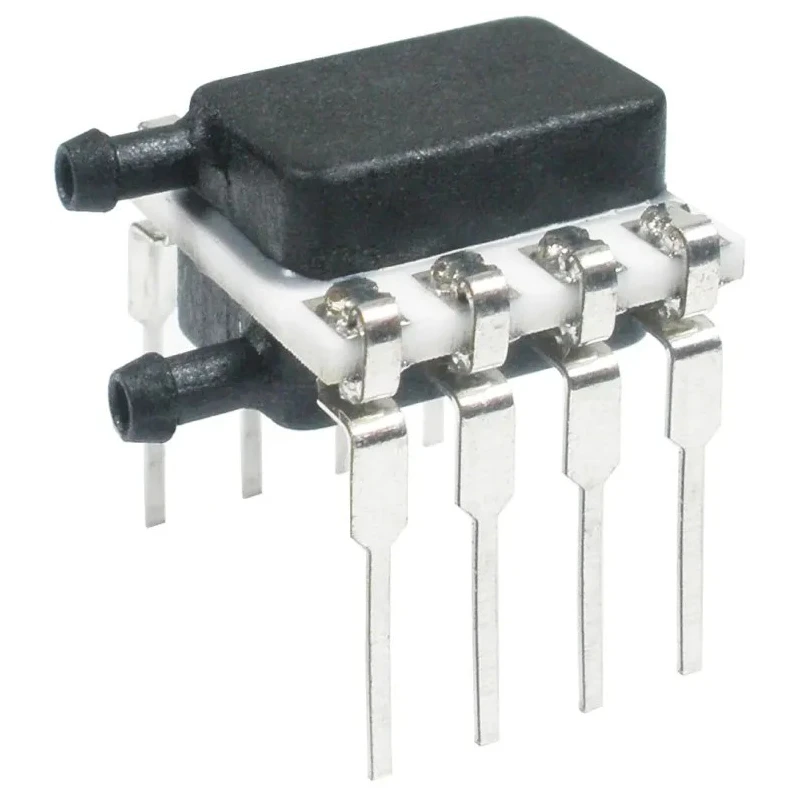

Honeywell Technologies Gauge Pressure Sensor Board 8 DIP, Piezoresistive, ±0.25% Accuracy, 3.3V Min Supply HSCDRRV001PGSA3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 6.89 kPa |
| Height | 13.75mm |
| Length | 10mm |
| Model | HSCDRRV001PGSA3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 13.3mm |
| Mount Type | Board |
| Series | HSC |
| Maximum Operating Temperature | +85°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO 9001 |
| Pin Count | 8 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 69kPa |
Key Features
- The sensor is designed for low-pressure gas and compatible liquid measurement.
- Provides calibrated, temperature-compensated output for reliable integration.
- Dual radial barbed port simplifies tubing connections for instrument assemblies.
- DIP package allows easy through-hole PCB mounting and integration.
- Operates over a temperature range from -20°C to +85°C for versatile applications.
- Offers a maximum overload pressure of 69 kPa ensuring safety margin in usage.
- ISO 9001 certified product ensuring quality and manufacturing standards.
- Suitable for respiratory monitoring, HVAC, gas flow instrumentation, and indoor air quality measurement.
Product Description
Honeywell HSCDRRV001PGSA3 is a gauge pressure sensor board, packaged in an 8-pin DIP configuration, designed for precision measurement of low-pressure gases and compatible liquids. Operating at a minimum supply voltage of 3.3V and supporting a maximum supply voltage of 5V, it provides a highly stable and calibrated output with ±0.25% accuracy. This piezoresistive sensor offers temperature compensation and onboard ASIC calibration, ensuring stability and minimal drift over long-term use.
This pressure sensor features dual radial barbed ports that simplify tubing connections, enhancing ease of use in various instrument and control assemblies.
With an operating temperature range from -20°C to +85°C and a maximum operating pressure of 6.89 kPa, the device suits diverse industrial environments, including HVAC filter clogging detection, ventilator and respiratory monitoring devices, gas flow measurement, and indoor air quality monitoring. It is compliant with ISO 9001 manufacturing standards, ensuring product reliability and quality assurance.
The sensor supports ratiometric analogue output and offers digital variants with SPI or I2C-compatible 14-bit output, accommodating various electronic interface needs. This sensor is intended for use with non-corrosive, non-ionic gases and select liquids over 40 mbar, providing accurate monitoring in critical applications such as oxygen concentrators and anesthesia machines.
The sensor is ideal for industrial, laboratory, medical, HVAC, and environmental monitoring applications. The high overload pressure rating of 69 kPa increases safety and durability under transient conditions. The compact size of 13.75mm height, 13.3mm width, and 10mm length supports integration in space-constrained equipment.
This product enhances precision control and monitoring in manufacturing and testing instrumentation. Packaged for board-level mounting, it facilitates easier assembly and maintenance in production lines.
Choose Honeywell HSCDRRV001PGSA3 for demanding pressure sensing needs where accuracy, reliability, and form factor are critical. Explore EnvMart’s comprehensive selection of sensor ICs to find complementary components for your instrumentation and control projects.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor offers an accuracy of ±0.25%.
The maximum operating pressure is 6.89 kPa.
It operates within a temperature range of -20°C to +85°C.
The sensor supports ratiometric analogue output and digital variants with SPI or I2C-compatible 14-bit output.
The minimum supply voltage is 3.3V, while the maximum is 5V.
The dimensions are 13.75mm in height, 13.3mm in width, and 10mm in length.
It features dual radial barbed ports for easy tubing connections.
The sensor is designed for board mounting in a DIP package.
Yes, it is compliant with ISO 9001 manufacturing standards.
It is suitable for respiratory monitoring, HVAC, gas flow instrumentation, and indoor air quality measurement.
The maximum overload pressure is 69 kPa, providing a safety margin in usage.
It is intended for use with non-corrosive, non-ionic gases and select liquids over 40 mbar.
