Omron Panel Power Relay 240V AC Coil 10A Switching Current SPDT G2R-1-T AC240

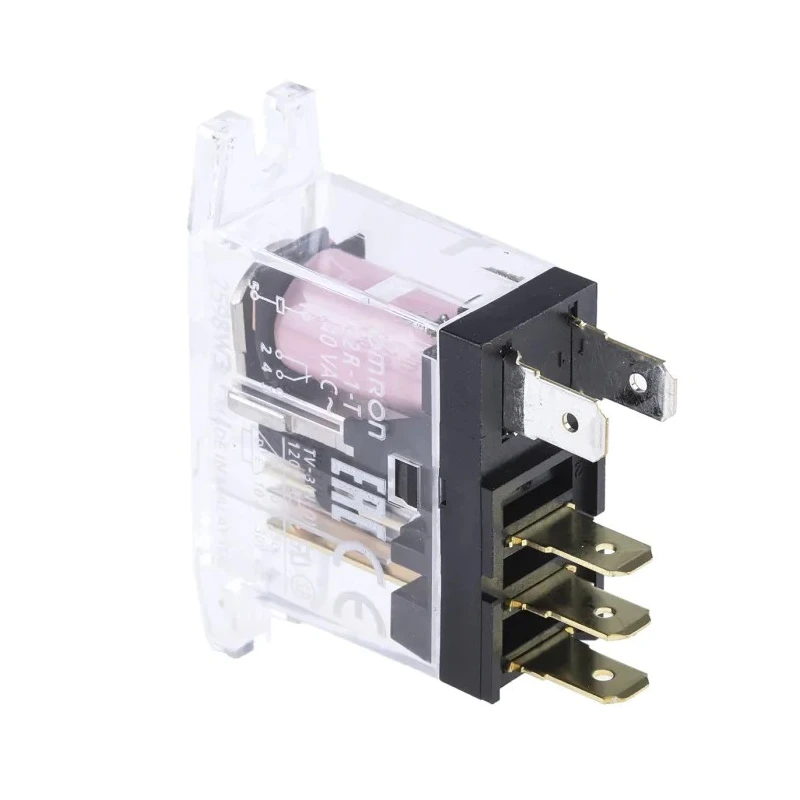

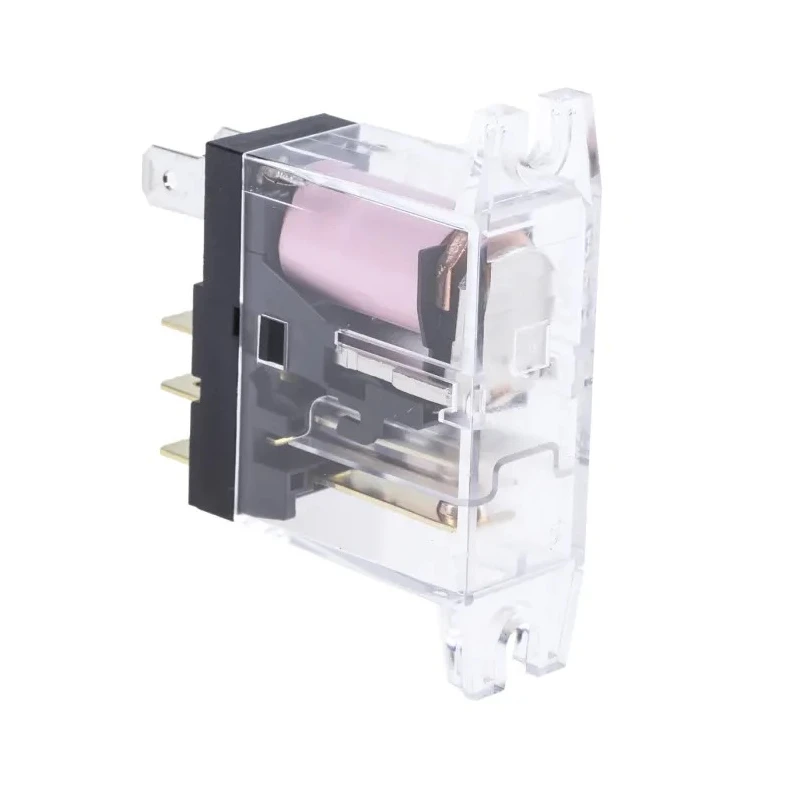

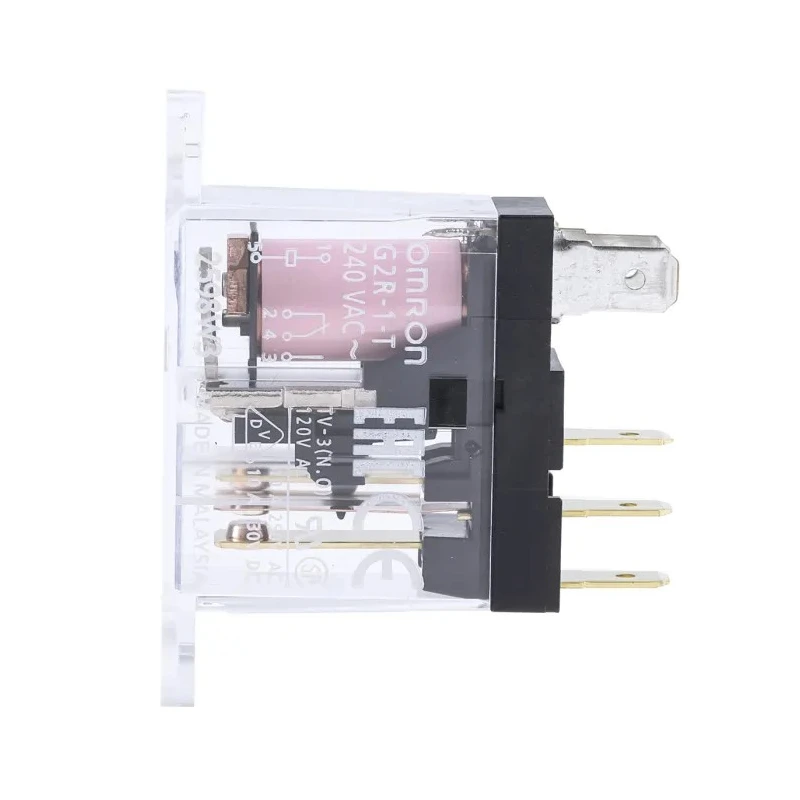

Omron G2R-1-T AC240 Panel Power Relay is a general purpose, non-latching power relay designed for versatile industrial applications requiring reliable switching performance. It features a 240V AC coil voltage and supports a switching current rating of 10A with SPDT contact configuration.

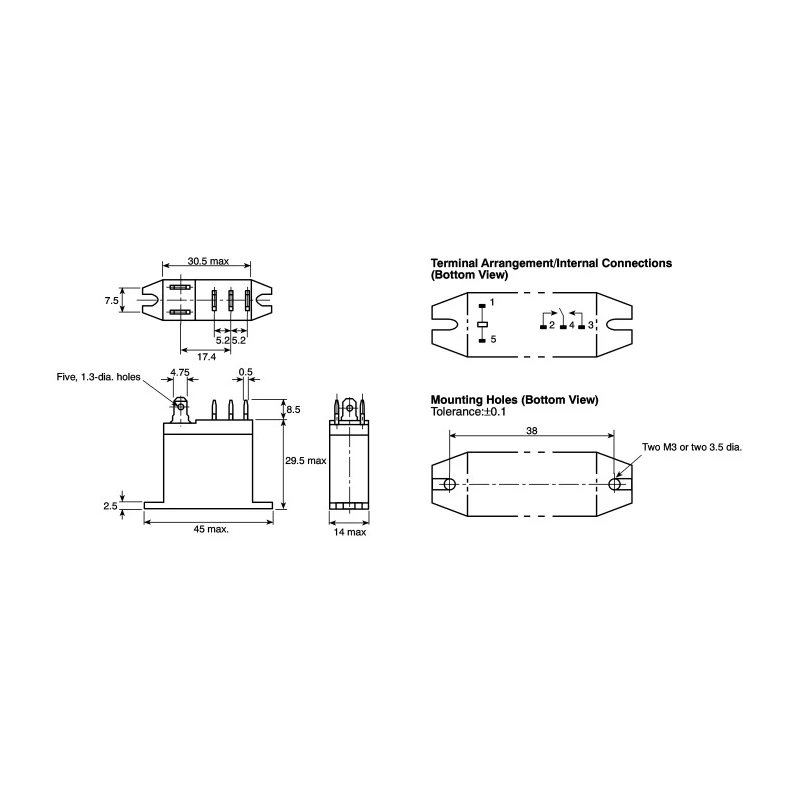

This relay incorporates quick-connect terminals, facilitating fast and secure panel mounting connections. Its compact size - measuring 45mm in length, 38mm in height, and 14mm in width - makes it suitable for integration in electrical control panels, automation systems, and instrumentation setups.

The contact material is high-quality silver alloy ensuring low contact resistance (30mΩ max) and high conductivity, thus enhancing switching efficiency and operational longevity. The coil power consumption is low at 900mW, improving energy efficiency.

Designed to operate reliably in harsh environments, it supports a wide temperature range from -40°C to 70°C, with vibration and shock resistances ensuring durability in demanding industrial settings. It also provides dielectric strength up to 5000V AC between coil and contacts, ensuring robust electrical isolation and safety.

Typical applications include industrial automation, manufacturing equipment, HVAC systems, power supply switching circuits, and panel controls where precise and dependable switching is required. This relay complies with RoHS standards, underscoring its environmental compatibility.

General purpose power relay suitable for industrial applications. Features SPDT (Single Pole Double Throw) contact configuration. Coil voltage rated at 240V AC with 900mW coil power consumption. Rated switching current of 10A and switching AC voltage up to 380V AC.

Compact dimensions: 45mm length, 38mm height, 14mm width. Quick connect terminals ensure easy and secure wiring. Silver alloy contact material for optimal conductivity and durability. Operational temperature range from -40°C to 70°C without icing.

Contact resistance max 30mΩ and dielectric strength up to 5000V AC. Lightweight design approximately 20 g with plug-in terminal.
