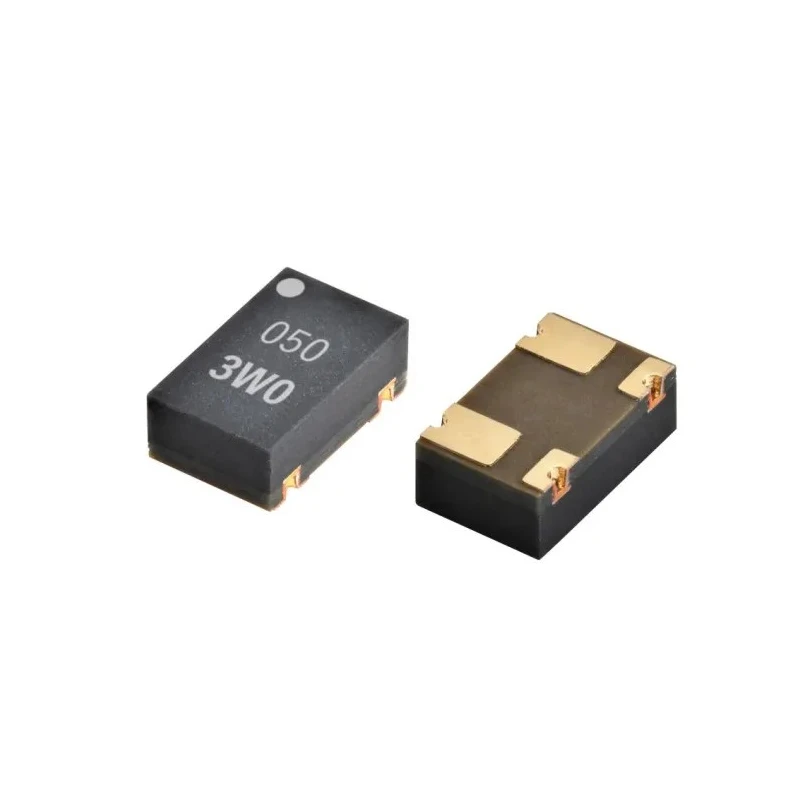

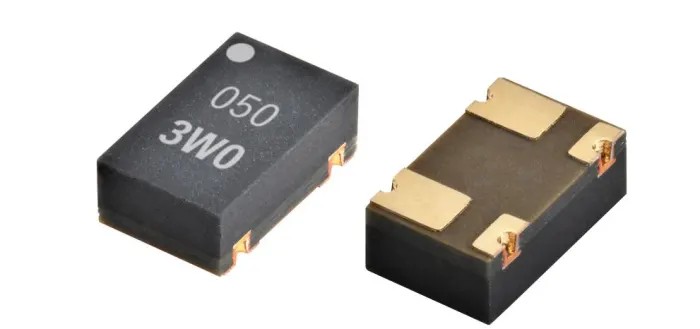

Omron Solid State Relay G3VM MOSFET Output, 2A Load Current, 100V Load Voltage, Surface Mount

The Omron G3VM-101WR(TR05) Solid State Relay incorporates a MOSFET output type, offering a maximum load current of 2 amps and maximum load voltage of 100 volts suitable for surface mount PCB applications.

This MOSFET relay series is characterized by its compact size and low on resistance, ensuring efficient operation and reduced heat generation. The relay achieves electrical isolation by converting input voltage into light signals and transmitting them optically, supporting superior input-output isolation up to 2,500 Vrms.

The relay features a Single Pole Single Throw (SPST) contact configuration with AC/DC switching function, making it suitable for controlling various loads in industrial and automation environments. It operates reliably across a wide temperature range from -40°C to +110°C, supporting applications with environmental variations.

Key electrical characteristics include a very low off-state leakage current of 1 microampere and capacitance of 170 picofarads, minimizing load interference when turned off. The device's compact surface mount format facilitates easy PCB assembly and reduces the overall footprint.

The MOSFET-based relay replaces traditional electromechanical contacts, eliminating switching noise and distortion, leading to enhanced longevity and silent operation. This makes it ideal for sensitive signal switching in electrical and automation circuits.

Manufactured in Japan under stringent quality controls, this product complies with the RoHS directive, ensuring environmental safety and sustainability. It represents an advanced solution for industrial, laboratory, HVAC, and manufacturing applications demanding reliable, noise-free relay performance.

Compact MOSFET relay type with low on resistance for high efficiency. Maximum load current rating of 2 amps and load voltage of 100 volts. Surface mount PCB terminal design for easy integration. SPST contact configuration with AC/DC switching functionality.

Wide operating temperature range from -40°C to 110°C for durability. Low off-state leakage current of 1 microampere and capacitance of 170 picofarads. Provides excellent isolation with MOSFET input-output principle for noise-free switching.

RoHS compliant and manufactured in Japan to high quality standards.

This Omron G3VM solid state relay is recommended for demanding applications in electrical automation, industrial control, machinery, and signal conditioning environments requiring efficient and durable switching components. Browse related Solid State Relays and Omron products at EnvMart for comprehensive solutions.
