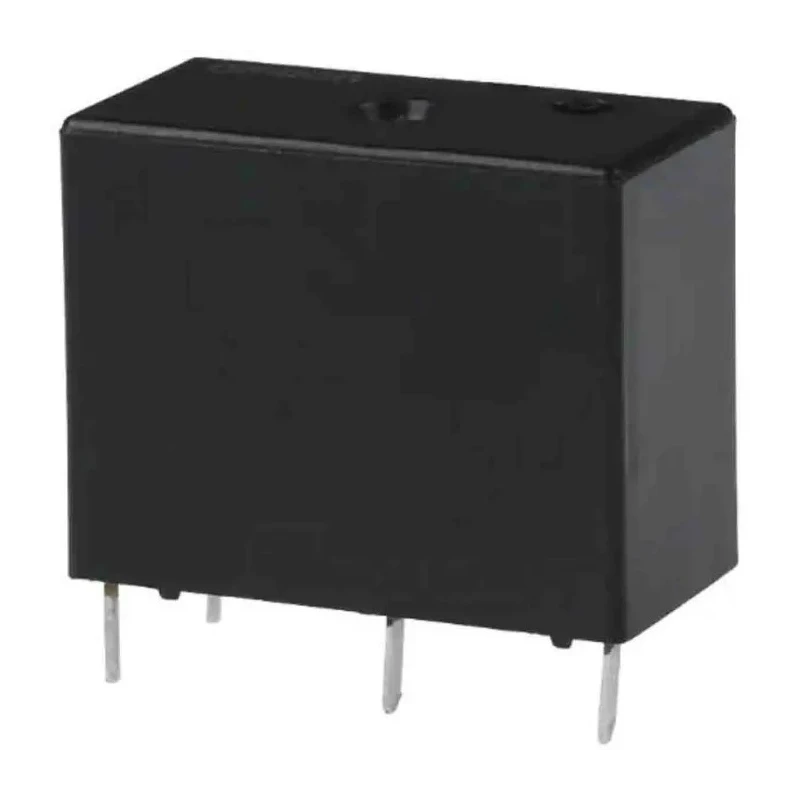

Omron PCB Power Relay SPST 5V DC Coil 10A Switching Current G5Q-1A-EU DC5 (TY)

Omron G5Q-1A-EU DC5 (TY) PCB Power Relay is a precision electrical component designed for reliable switching in industrial and automation systems. This power relay offers a 5V DC coil and a switching current capacity of 10A, making it suitable for control equipment output applications where dependable performance is required.

The relay features a Single Pole Single Throw (SPST) contact configuration and supports switching AC voltages up to 277V AC and a DC switching voltage of 30V. It is optimized for PCB mounting with PCB pin terminals, allowing seamless integration into electronic circuit boards.

The coil resistance is specified at 125 ohms and power consumption at a minimal 200mW, contributing to energy efficiency during operation. With an operating temperature range from -40°C to 105°C and rated to withstand high impulse voltage up to 8 kV, this relay is engineered for harsh industrial environments and variable conditions.

Constructed with silver alloy contact material and a contact resistance of 100 milliohms, the relay ensures excellent electrical conductivity and long service life. Its compact dimensions (20mm length, 10mm width, and 18.9mm height) facilitate space-saving designs in electronic assemblies.

Compliant with RoHS standards, this relay is environmentally friendly and suitable for use in industrial electronics, automation control, signal conditioning, and PCB-based circuit applications requiring reliable power relay switching.

Package contents typically include the relay unit ready for PCB mounting, ideal for engineers and technicians tasked with control system design and maintenance. The relay features a coil voltage of 5V DC suitable for low voltage control circuits.

Contact configuration is Single Pole Single Throw (SPST) ensuring straightforward switching action. It supports a switching current of up to 10A and switching AC voltage up to 277V AC. Designed with a coil resistance of 125 ohms and coil power consumption of 200mW.

Operates reliably within a temperature range from -40°C to 105°C. Constructed with silver alloy contacts and features a contact resistance of 100 milliohms. Compact size with dimensions 20mm length, 10mm width, and 18.9mm height allows space-saving PCB designs.

Complies with RoHS standards ensuring environmental compliance. Suitable for industrial, electronic control, automation, and signal conditioning applications. Manufactured in China with a coil insulation system of Class F and high impulse withstand voltage rating.
