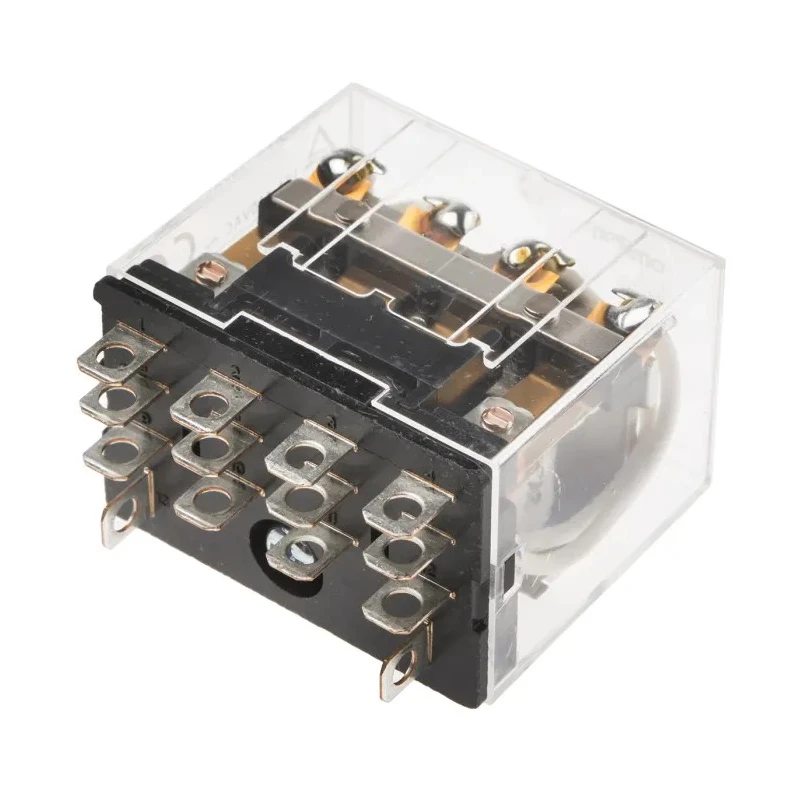

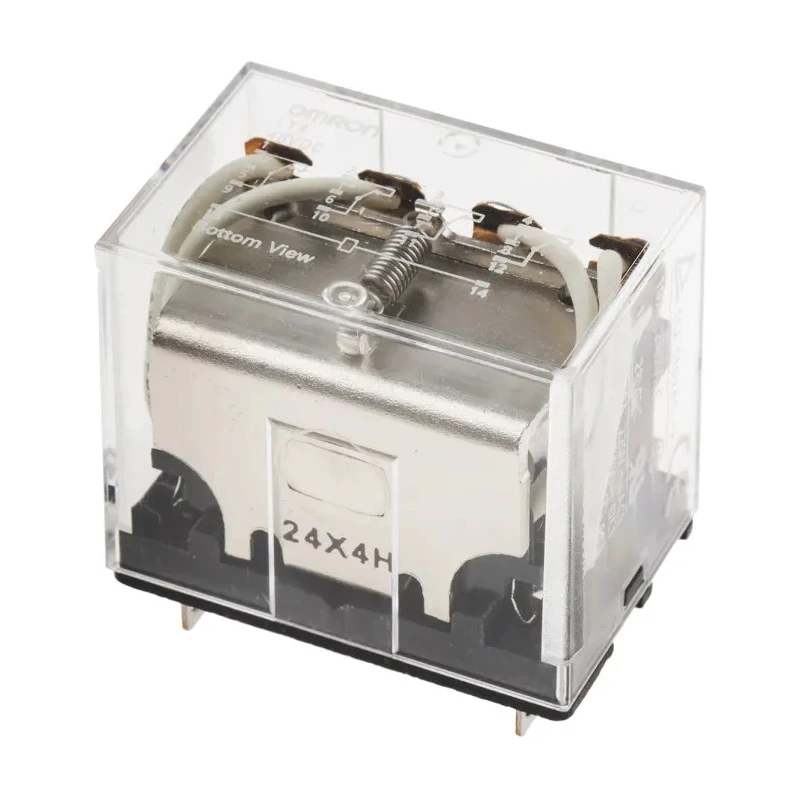

Omron Power Relay 48V DC Coil 10A Switching Current 4PDT PCB Mount LY4 48VDC

Omron LY4 48VDC power relay offers reliable switching for industrial automation and control panel applications. This relay features a 48V DC coil and is capable of switching currents up to 10A with a 4PDT contact configuration, allowing simultaneous control of multiple circuits. It is designed for efficient mechanical switching of AC loads with a rated switching voltage of 250V and a switching capacity of 1.1 kVA.

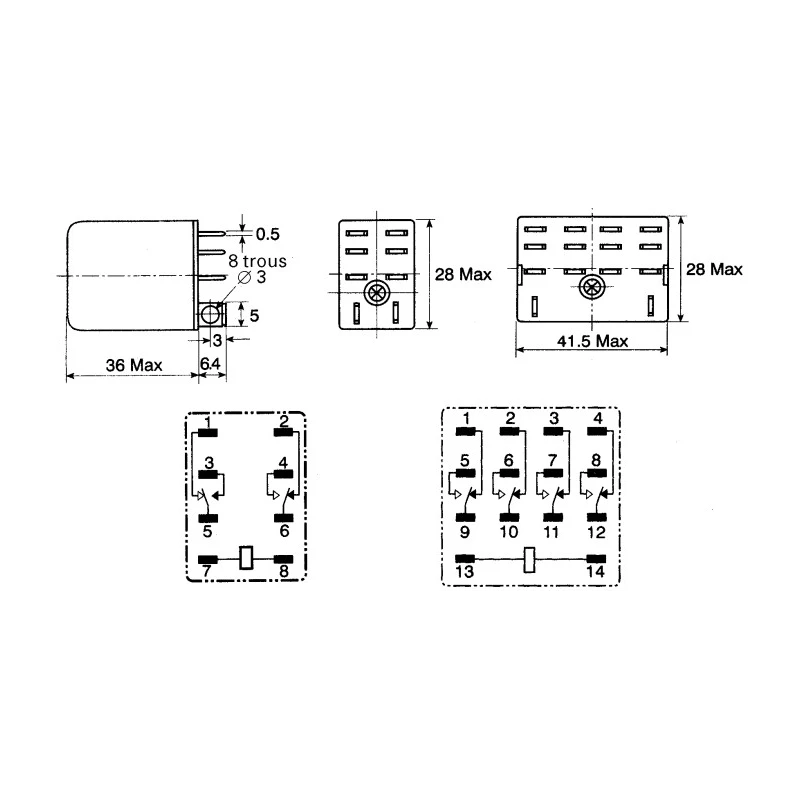

Constructed for PCB mounting, the compact form factor (42.4mm height, 28mm length, and 41.5mm width) with plug-in terminals facilitates dense PCB layouts and simplifies installation and servicing. Coil power consumption is low at 0.9W, reducing the burden on drive circuitry, with a coil resistance of 1.6 kΩ that determines current draw. The contact resistance of 30 mΩ ensures minimal voltage drop, enhancing performance reliability in control circuits.

The relay is suitable for various industrial uses including motor starter interlocks, PLC output interface requiring multiple changeover contacts, power distribution switching in compact switchgear, and as retrofit replacements in legacy relay boards. It operates within an environmental temperature range of -25°C to 40°C, making it appropriate for typical industrial ambient conditions.

Omron LY4 power relay complies with RoHS standards, ensuring environmentally responsible manufacture and application. This product is ideal for installations requiring compact, robust, and efficient switching solutions in Power Relay applications.

Designed for industrial control panel contact switching applications. Equipped with four-pole double throw contacts for independent multi-circuit control. Coil consumption is low at 0.9 W to reduce drive power requirements.

Supports switching capacity of 1.1 kVA with rated switching voltage of 250 V AC. Compact PCB mount form factor with plug-in terminals for easy installation and maintenance. Operates reliably in ambient temperatures from -25°C to 40°C.

Coil resistance of 1.6 kΩ optimizes current draw at 48 V DC coil voltage. Low contact resistance of 30 mΩ minimizes voltage drop under load. Suitable for automation systems, motor starter interlocks, and retrofit replacements.

Manufactured to RoHS standards for environmental compliance. Explore a wide range of industrial relays and electrical components at EnvMart for your automation and control needs.
