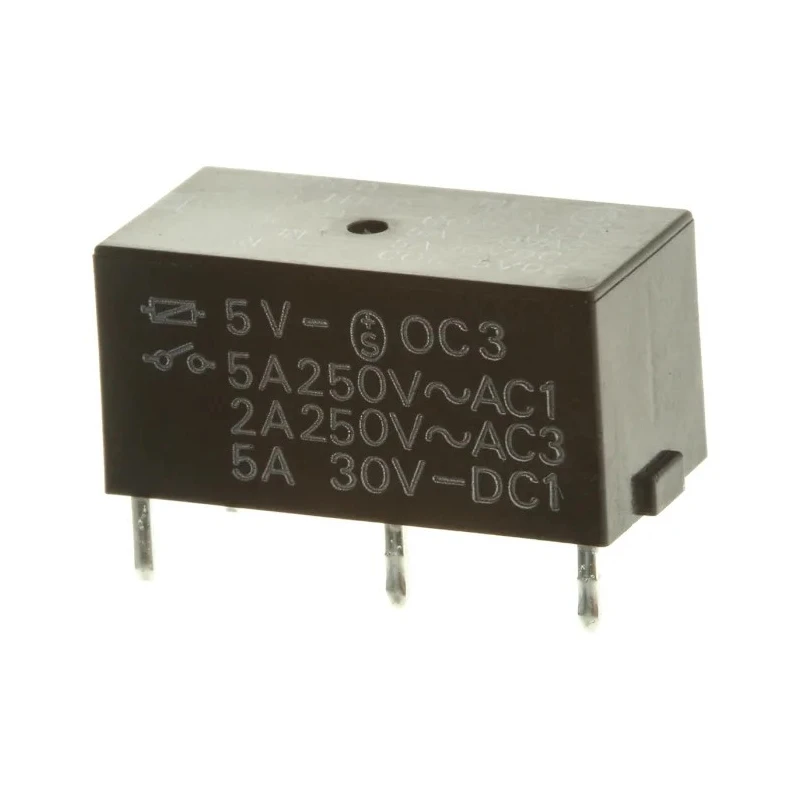

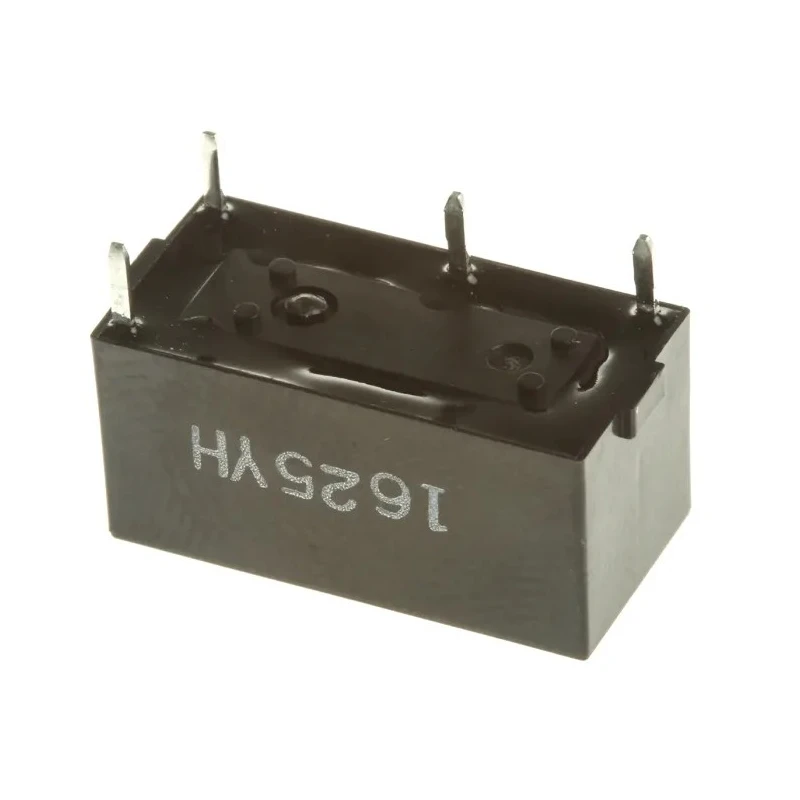

Omron PCB Power Relay 5V DC Coil 5A Switching Current SPST G6B-1114P-US-SV DC5
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 21mm |
| Model | G6B-1114P-US-SV DC5 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
| Subminiature | 20x10x10mm |
Key Features
- The relay operates with a coil voltage of 5V DC and consumes low coil power of 200mW.
- It supports a maximum switching DC voltage of 125V and AC voltage of 380V.
- The relay has a compact subminiature size of 20x10x10mm suitable for PCB mounting.
- Contact material is silver alloy ensuring low contact resistance of 30mΩ.
- The device operates reliably between -25°C and 70°C ambient temperatures.
- Terminal type is solder with a unique moving loop armature design to reduce magnetic interference.
- High dielectric strength with impulse withstand voltage of 6kV enhances its durability.
- The relay is fully sealed and RoHS compliant with a coil resistance of 125Ω.
Product Description
Omron G6B-1114P-US-SV DC5 PCB Power Relay is a compact and low power consumption subminiature relay designed for reliable switching operations in control and automation equipment. This power relay features a 5V DC coil voltage and supports a switching current of 5A with SPST contact configuration, making it suitable for various industrial electronics applications.
Its unique moving loop armature design reduces size, magnetic interference, and contact bounce time, enhancing performance. The relay has a contact material of silver alloy providing low contact resistance of 30mΩ, and it is fully sealed to ensure durability and protection against environmental factors.
With dimensions of 20x10x10mm, this relay is ideal for PCB mounting. It operates efficiently within a temperature range of -25°C to 70°C and handles switching DC voltages up to 125V and AC voltages up to 380V. The coil power consumption is only 200mW with a coil resistance of 125Ω, contributing to energy-efficient operation.
The G6B series meets RoHS standards and is certified for UL recognition and CSA certification, ensuring compliance with industry safety and quality requirements. Its high dielectric strength and impulse withstand voltage of 6kV further guarantee operational reliability in demanding environments.
This relay is widely used in industrial automation, electrical control systems, and similar applications requiring precise and dependable PCB-mounted switching solutions. The relay operates with a coil voltage of 5V DC and low coil power consumption.
SPST contact configuration supports 5A switching current effectively. Compact subminiature form factor suits PCB mounting. Silver alloy contacts ensure low resistance and high reliability. Operational ambient temperature range from -25°C to 70°C.
Coil resistance and power support energy-efficient switching. Complies with RoHS and recognized safety certifications. Fully sealed construction provides protection against environment. Ideal for output control in automation and electrical applications.
Explore more options in Power Relays category at EnvMart for diverse industrial automation and electrical control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It supports a maximum switching current of 5A.
This relay has dimensions of 20mm in length, 10mm in width, and 10mm in height.
The relay features a single pole, single throw (SPST) contact configuration.
It can switch a maximum DC voltage of 125V.
The coil power consumption is 200mW.
The contact material is silver alloy, which provides low contact resistance.
It operates reliably within a temperature range of -25°C to 70°C.
This relay is designed for PCB mounting.
The contact resistance is 30mΩ.
Yes, this relay is RoHS compliant.
The relay has an impulse withstand voltage of 6kV.
