Omron Panel Power Relay 24V AC Coil 25A Switching Current DPST G7L-2A-T AC24

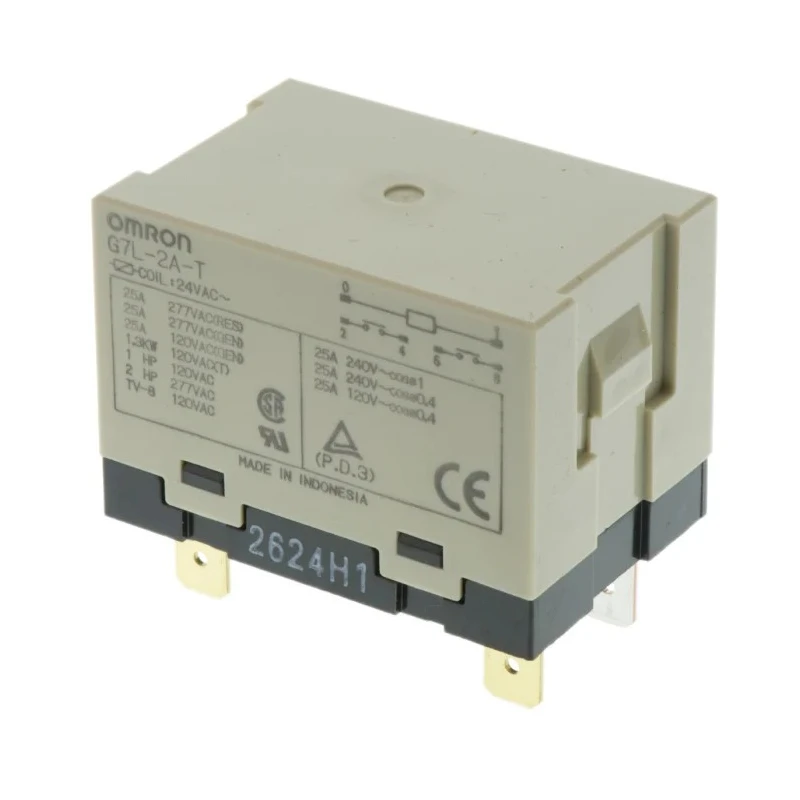

Omron G7L-2A-T AC24 Panel Power Relay is engineered for high performance in electrical automation and control systems. Featuring a 24V AC coil and DPST contact configuration, it delivers a dependable switching current rated at 25A with 5.5 kVA switching power. This relay is designed for panel mounting, with quick connect terminals facilitating straightforward installation and maintenance.

Operating temperature spans from -25°C to 60°C, making it suitable for a broad range of industrial environments. The relay body is constructed with flame-resistant UL94V-0 insulation material, enhancing safety and durability. Its compact dimensions of 53mm (H) x 52.5mm (L) x 33.5mm (W) allow easy integration into electrical panels.

The contact resistance is low at 50mΩ, ensuring minimal power loss and efficient switching. This relay can withstand momentary voltage drops of up to 50% of the rated coil voltage without malfunction, ensuring reliable operation under fluctuating supply conditions. It complies with RoHS standards, underlining its environmental compliance.

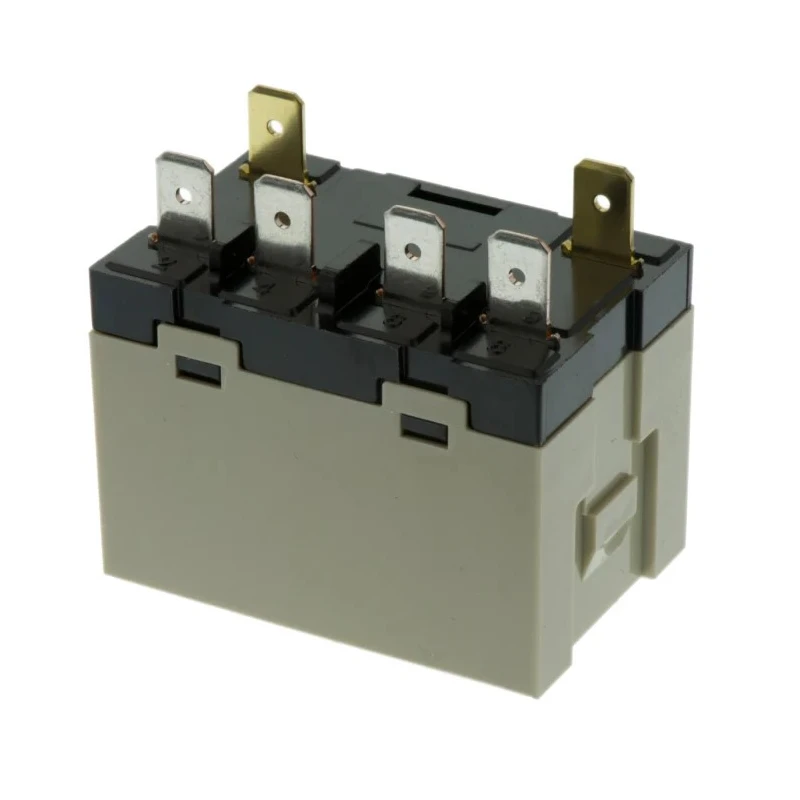

Suitable for industrial, laboratory, manufacturing, and control panel applications, this power relay offers high capacity switching with robust construction. It is compatible with DIN rail and surface socket mounting accessories (sold separately) for enhanced installation flexibility.

Panel power relays like the Omron G7L-2A-T AC24 are widely used in electrical, automation, and signal conditioning circuits requiring reliable switching of high currents and voltages. This product is designed to meet industrial standards and provide long service life in demanding applications.

Category specialists can find more Power Relays and related components by browsing the Electronics & Electricals section at EnvMart for quality and variety. The relay operates reliably between -25°C and 60°C for diverse environments.

Offers high switching power capacity of 5.5 kVA and switching AC voltage up to 250V AC. Quick connect terminal type ensures easy and secure installation. Constructed with flame-resistant UL94V-0 insulation material for enhanced safety.

The compact design measures 53mm height, 52.5mm length and 33.5mm width for panel mounting. Contact resistance is low at 50mΩ, supporting efficient electrical performance. Designed to tolerate momentary voltage drops up to 50% of rated voltage.

Complies with RoHS standards to meet environmental regulations. Ideal for industrial automation, electrical control panels, and signal conditioning applications.
