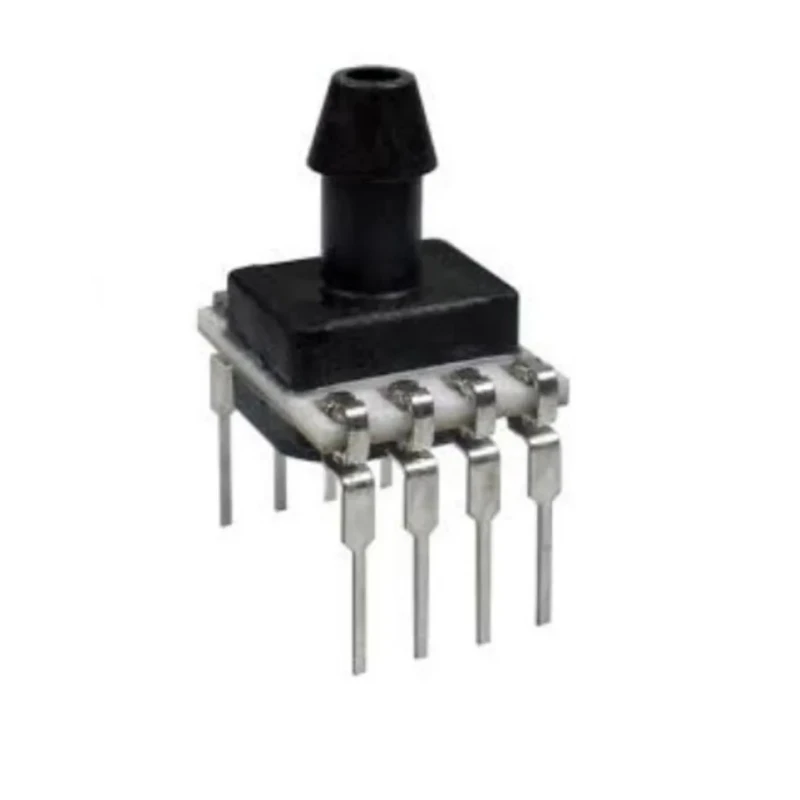

Honeywell Technologies Piezoresistive Differential Pressure Sensor Board 6-Pin DIP Package 3.3V-5V Operation HSCDRRV001PDAA5

Honeywell HSCDRRV001PDAA5 is a high-precision piezoresistive differential pressure sensor board designed to accurately measure pressure differentials between two ports. It is suitable for non-corrosive, non-ionic gases and selected liquids and comes in a compact, six-pin DIP package offering ease of board mounting.

The device supports operation from a single supply voltage between 3.3V and 5V and delivers factory-calibrated ratiometric analogue or digital signals with a fast update rate of up to 2 kHz. This sensor achieves a high accuracy of ±0.25% full-scale span (FSS) and features temperature compensation across a compensated temperature range of 0°C to 50°C, ensuring stable performance in varied environmental conditions.

With dual radial barbed ports and a robust mechanical package, HSCDRRV001PDAA5 is tailored for use in industrial, laboratory, medical, and HVAC environments. Typical applications include airflow monitoring in respiratory devices, variable air volume (VAV) systems, clogged-filter detection, gas flow instrumentation, oxygen concentrators, and ventilators.

The sensor’s protected design allows it to withstand maximum overload pressure of 68.9 kPa and maximum operating pressure up to 6.9 kPa. It operates reliably within an ambient temperature range from -20°C to +85°C and is compliant with ISO 9001 quality standards.

On-board ASIC calibration and temperature compensation reduce measurement drift and lower the need for frequent recalibration, making it ideal for long-term deployment in demanding applications.

Designed for differential pressure measurement in non-corrosive gases and select liquids. High accuracy of ±0.25% FSS to minimize calibration requirements. Supports supply voltages from 3.3V to 5V for flexible interfacing.

Fast output update rates up to 2 kHz for rapid response. Temperature compensation ensures performance stability between 0°C and 50°C. Dual radial barbed ports and 6-pin DIP package for board mounting. Low power consumption suitable for battery-operated devices.

Compliant with ISO 9001 quality standard for reliable manufacturing.

This Honeywell differential pressure sensor IC is an excellent choice for electronic engineers and system designers requiring precise pressure measurement solutions in industrial, laboratory, HVAC, medical, and commercial air quality and gas flow applications. Explore additional sensors and pressure measurement products in the Electronics & Electricals Sensors Pressure Sensor ICs category on EnvMart.
