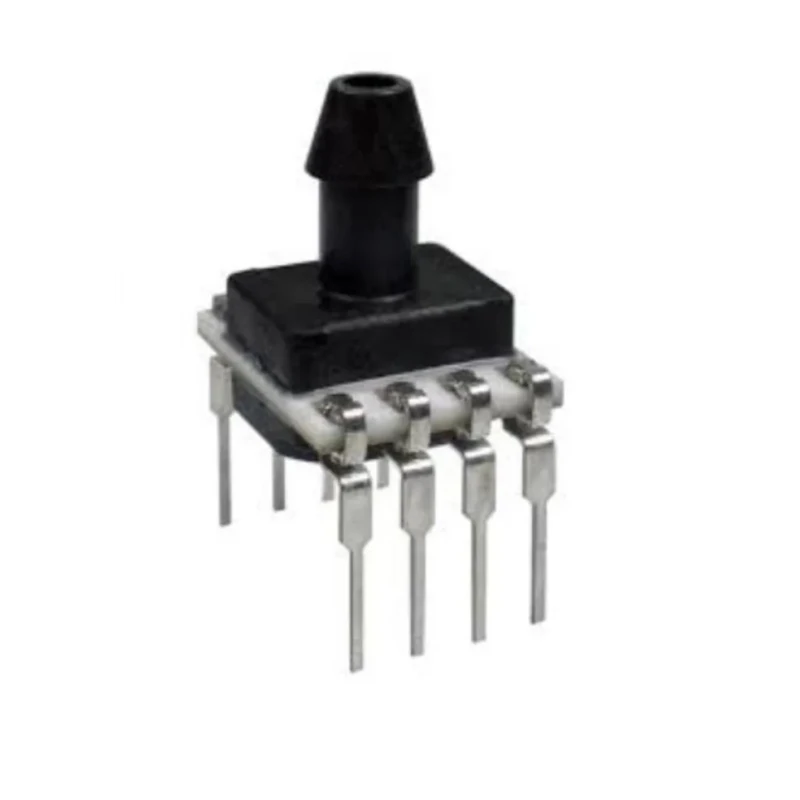

Honeywell Technologies Pressure Sensor Board DIP Package 6 Pin, Piezoresistive, 3.3V to 5V, ±0.25% Accuracy HSCDRRV001PDSA3

Honeywell HSCDRRV001PDSA3 is a precision differential pressure sensor designed for board mounting with a DIP package and 6-pin configuration. It provides accurate piezoresistive measurements with ±0.25% accuracy, operating reliably between supply voltages of 3.3V and 5V. This sensor uses dual radial barbed ports facilitating straightforward tubing connections for pressure differential evaluation in a compact 13.75mm height, 13.3mm width, and 10mm length package.

Fully temperature compensated for operational ranges from -20°C to +85°C, it limits offset and sensitivity drift, ensuring output stability under varying thermal conditions. The sensor supports ratiometric analogue outputs and fast 14-bit digital outputs with update rates up to 2kHz, compatible with both I2C and SPI communications, which is vital for dynamic system-level controls.

Key industrial and medical applications include respiratory monitoring in ventilators and spirometers, HVAC filter clog detection and volume air velocity (VAV) control, gas flow instrumentation, oxygen concentrator pressure sensing, as well as use in anesthesia machines and nebulizers. Its on-board ASIC calibration minimizes the need for software correction, enhancing measurement precision and reliability.

Manufactured under ISO 9001 quality standards and sourced from China, this sensor is suitable for environments requiring dependable pressure differential sensing for non-corrosive and non-ionic gases. Its design prioritizes low power consumption, thereby extending battery life for portable systems.

Measures differential pressure using dual radial barbed ports for reliable tubing connections. Calibrated on-board ASIC delivers rapid and stable output updates ideal for real-time applications. Supports ratiometric analog or 14-bit digital output compatible with I2C or SPI interfaces.

Designed to operate over a wide temperature range from -20°C to +85°C with compensated output stability. Suitable for non-corrosive, non-ionic gases in medical, HVAC, and industrial applications. Has board mount DIP package with 6 pins for easy integration into electronic designs.

Certified to ISO 9001 standards ensuring consistent quality and performance reliability. Explore the full range of professional sensor ICs designed for precision measurement in industrial and medical sectors at EnvMart.
