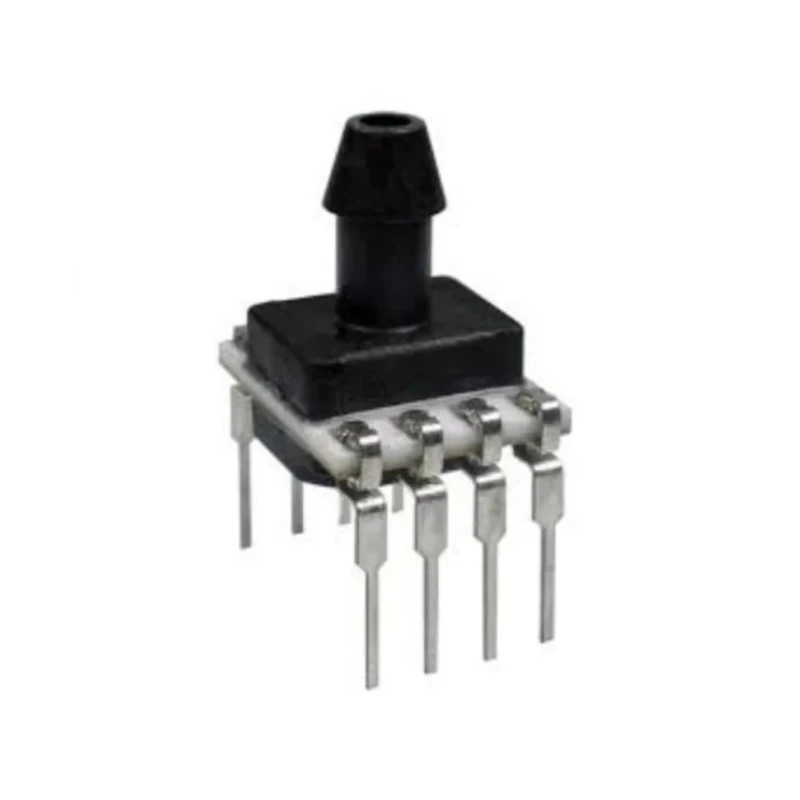

Honeywell Technologies Piezoresistive Pressure Sensor Board DIP Package 6-Pin, ±0.25% Accuracy, 3.3V - 5V HSCDRRD005NDSA3
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 34.5 kPa |
| Height | 13.75mm |
| Length | 10mm |
| Model | HSCDRRD005NDSA3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 13.3mm |
| Mount Type | Board |
| Series | HSC |
| Maximum Operating Temperature | +85°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO 9001 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | -5in/H2O |
| Maximum Overload Pressure | 2068kPa |
Key Features
- Measures pressure differential with ±0.25% accuracy for precise applications.
- Operates from a single 3.3V to 5V power supply compatible with common systems.
- Supports dual radial barbed ports simplifying fluid connection for non-corrosive gases.
- Designed for harsh environments with operating temperature from -20°C to +85°C.
- Low power consumption under 10 mW enables extended battery-powered use.
- Provides rapid sampling capabilities with output updated up to 2 kHz.
- Suitable for medical respiratory, HVAC control, gas flow instrumentation, and industrial pneumatic control.
- Complies with ISO 9001 manufacturing standards ensuring reliable quality.
Product Description
Honeywell Technologies HSCDRRD005NDSA3 is a high-precision piezoresistive pressure sensor board designed for differential pressure measurement between two ports. Housed in a 6-pin DIP package suitable for straightforward PCB mounting, it operates reliably over a voltage range of 3.3V to 5V with ±0.25% accuracy. This sensor features dual radial barbed ports facilitating easy connection to fluid lines carrying non-corrosive, non-ionic gases such as air.
Engineered to tolerate harsh industrial and medical environments, it supports operating temperatures from -20°C to +85°C and withstands maximum operating pressure up to 34.5 kPa with an overload pressure capability of 2068 kPa. Low power consumption, less than 10 mW, allows use in battery-powered and portable applications. The calibrated output updates up to 2 kHz, enabling rapid sampling for real-time monitoring systems.
This sensor is ideal for medical respiratory and ventilator pressure monitoring, HVAC filter clog detection, variable air volume (VAV) control systems, gas flow instrumentation, flow calibrators, barometry, indoor air quality monitoring, industrial pneumatic controls, and gas chromatography.
The sensor’s digital versions offer I2C or SPI interface compatibility with resolutions of 12 to 14 bits, enhancing integration flexibility. Manufactured under ISO 9001 quality standards, Honeywell ensures consistent performance and reliability for demanding electronics designs.
Measures differential pressure with high accuracy of ±0.25%. Compatible with 3.3V to 5V supplies and low power consumption under 10 mW. Dual radial barbed ports simplify fluid connections for non-corrosive gases. Wide operating temperature range from -20°C to +85°C for harsh environments.
Rapid calibrated output update rate up to 2 kHz. 6-pin DIP package designed for easy PCB mounting. Applications include medical devices, HVAC control, gas flow measurement, and industrial pneumatic systems. Manufactured to ISO 9001 quality standards.
Explore similar Honeywell sensor ICs and precision pressure sensors within EnvMart for diverse electronic and industrial measurement needs.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of this model is ±0.25%.
It operates within a voltage range of 3.3V to 5V.
The maximum operating pressure is 34.5 kPa.
The sensor has a height of 13.75 mm, a length of 10 mm, and a width of 13.3 mm.
It features dual radial barbed ports for fluid connection.
The operating temperature range is from -20°C to +85°C.
The calibrated output updates at a rate of up to 2 kHz.
The power consumption is less than 10 mW, making it suitable for battery-powered applications.
This pressure sensor is designed for board mounting in a 6-pin DIP package.
It complies with ISO 9001 manufacturing standards.
It is suitable for applications such as medical respiratory monitoring, HVAC control, and industrial pneumatic systems.
The maximum overload pressure capability is 2068 kPa.
