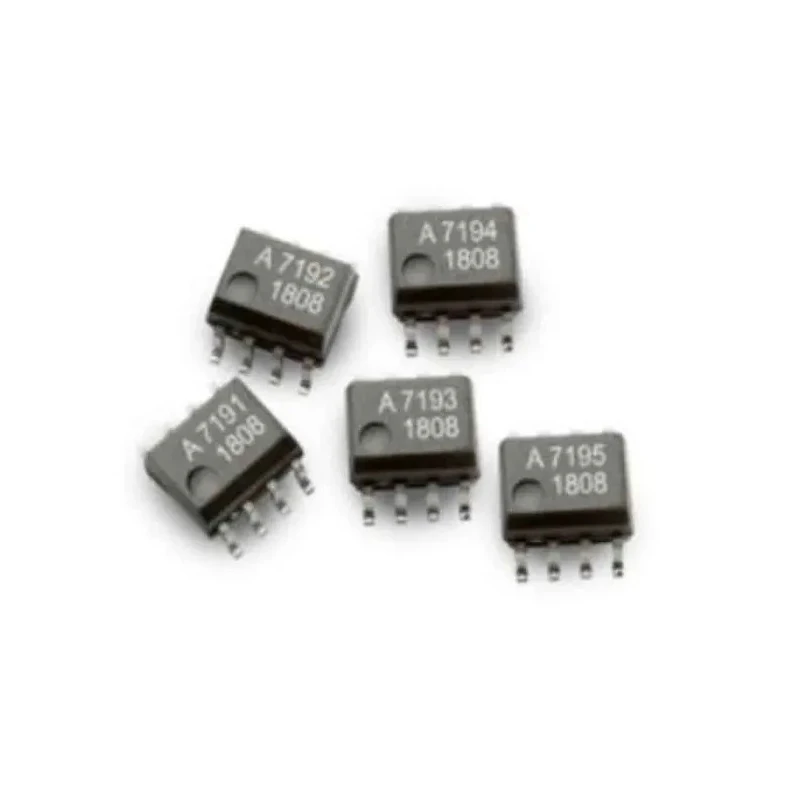

Broadcom Surface Mount 8-Pin Hall Effect Current Sensor, Bandwidth 80kHz, 5.08mm Length ACHS-7192-000E
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Height | 1.9mm |
| Length | 5.08mm |
| Model | ACHS-7192-000E |
| Mount Type | Surface |
| Bandwidth | 80kHz |
| Series | ACHS-719x |
| Maximum Operating Temperature | 110°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 500mV |
| Minimum Supply Voltage | -0.5V |
Key Features
- Features an 8-pin SO package for surface mounting on PCBs.
- Supports bandwidth up to 80kHz, suitable for fast current sensing.
- Operates within a supply voltage range from -0.5V to 500mV.
- Designed to work reliably in extreme temperatures from -40°C to 110°C.
- Compact size with a length of 5.08mm and height of 1.9mm for space-efficient designs.
- Meets RoHS compliance and Automotive AEC-Q100 standard for quality assurance.
- Ratiometric output ensures stable and precise current measurements.
- Effective in industrial, commercial, communications, and automotive electronics.
Product Description
Broadcom ACHS-7192-000E is a fully integrated Hall-effect based Current Sensor IC designed for accurate AC and DC current measurements. Packaged in a compact 8-pin SO form factor, it enables easy surface mounting on circuit boards, ideal for space-constrained electronic designs.
The sensor supports a bandwidth of 80kHz, making it suitable for fast dynamic current sensing applications. Operating within a supply voltage range from -0.5V to 500mV, it delivers a ratiometric output proportional to the supply voltage, ensuring output stability.
Designed to meet automotive grade AEC-Q100 standards and RoHS compliance, the ACHS-7192-000E performs reliably across a wide temperature range from -40°C to 110°C. With a physical footprint measuring 5.08mm in length and 1.9mm in height, it offers a compact solution for embedded current sensing in industrial, commercial, communication, and automotive electronic systems.
This current sensor is manufactured in the Philippines under strict quality controls, supporting applications requiring high accuracy and stability with near-zero magnetic hysteresis. Its design provides excellent isolation and precision for monitoring current in complex electronic environments.
Features an 8-pin SO package for surface mounting. Bandwidth of 80kHz for dynamic current sensing. Wide operational temperature range from -40°C to 110°C. Ratiometric output for stable, accurate measurements. Complies with RoHS and Automotive AEC-Q100 standards.
Compact dimensions: length 5.08mm, height 1.9mm. Ideal for industrial, commercial, communications, and automotive applications. Explore more semiconductor current sensors and sensors from Broadcom on EnvMart for reliable electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ACHS-7192-000E supports a bandwidth of 80kHz, making it suitable for fast dynamic current sensing applications.
This model has a length of 5.08mm and a height of 1.9mm, providing a compact solution for surface mounting on PCBs.
It operates reliably within a temperature range from -40°C to 110°C, suitable for various environmental conditions.
The sensor operates within a supply voltage range from -0.5V to 500mV, ensuring flexibility in different applications.
It provides a ratiometric output, which ensures stable and precise current measurements proportional to the supply voltage.
This current sensor meets RoHS compliance and the Automotive AEC-Q100 standard, ensuring quality assurance for automotive applications.
The current sensor features an 8-pin configuration, designed for surface mounting on circuit boards.
It is manufactured in the Philippines under strict quality controls, ensuring reliable performance.
This model is effective in industrial, commercial, communications, and automotive electronic systems, providing accurate current measurements.
The maximum operating temperature for the ACHS-7192-000E is 110°C, allowing it to function in high-temperature environments.
The minimum supply voltage for this current sensor is -0.5V, enabling operation in low-voltage applications.
It supports surface mounting, making it ideal for space-constrained electronic designs.
