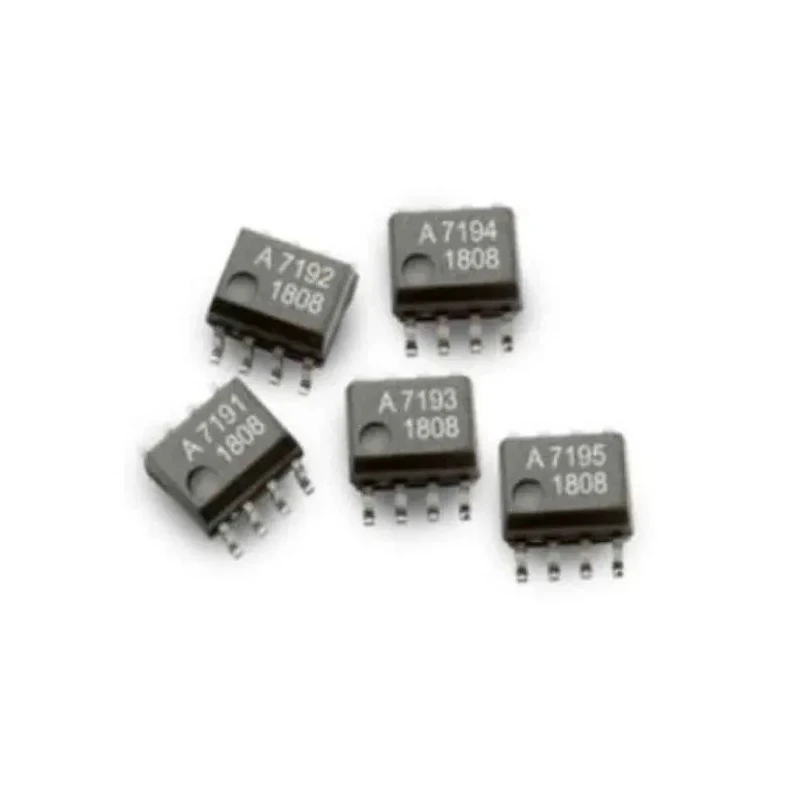

Broadcom Hall-Effect Based Isolated Linear Current Sensor 8-Pin SO Package ACHS-7192-000E
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Height | 1.9mm |
| Length | 5.08mm |
| Model | ACHS-7192-000E |
| Mount Type | Surface |
| Bandwidth | 80kHz |
| Series | ACHS-719x |
| Maximum Operating Temperature | 110°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 500mV |
| Minimum Supply Voltage | -0.5V |
Key Features
- The sensor provides a bandwidth of 80 kHz suitable for dynamic current measurement.
- It supports surface mount technology for modern PCB assembly.
- Operates reliably in temperatures from -40°C to 110°C.
- Minimum supply voltage is -0.5 V, with a maximum of 500 mV.
- Compact dimensions with a length of 5.08 mm and height of 1.9 mm.
- RoHS compliant and adheres to automotive standard AEC-Q100 for robust automotive applications.
- Ideal for industrial, commercial, and communications system current sensing.
- Manufactured in the Philippines ensuring quality production standards.
Product Description
Broadcom ACHS-7192-000E is a fully integrated Hall-effect based isolated linear current sensor in an 8-pin SO package. Designed for precision AC and DC current sensing, it is suited for industrial, commercial, and communications system applications. The device delivers ratiometric output relative to the supply voltage and features an extremely stable output offset voltage with near-zero magnetic hysteresis, ensuring high accuracy.
It supports a wide bandwidth of 80 kHz enabling fast response to current changes. The sensor is surface mount compatible facilitating integration into modern electronic assemblies. This sensor operates over a wide temperature range of -40°C to 110°C, making it suitable for harsh environments including automotive applications, supported by AEC-Q100 qualification.
With a compact footprint of 5.08 mm length and 1.9 mm height, it occupies minimal PCB space while maintaining robust performance. As RoHS compliant, it meets environmental safety standards, and its manufacturing origin is the Philippines, reflecting high production quality. The device's precise current sensing capabilities enable its use in power monitoring, motor controls, communications equipment, and various industrial control systems.
The sensor's isolated design protects measurement circuitry from high voltages. Stable output offset minimizes measurement drift over time and temperature. Broadband response allows accurate sensing of transient and AC signals.
Surface mount form factor simplifies assembly and reduces overall system size. Automotive grade compliance ensures reliable operation in demanding automotive electronics. Ratiometric output enables easy interface with microcontrollers and signal processing units.
Applications include industrial process control, energy metering, and communications system power monitoring. Explore more Current Sensor ICs at EnvMart for your industrial and electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ACHS-7192-000E provides a bandwidth of 80 kHz, suitable for dynamic current measurement.
This model operates reliably in temperatures ranging from -40°C to 110°C.
The sensor has compact dimensions with a length of 5.08 mm and a height of 1.9 mm.
The minimum supply voltage is -0.5 V, with a maximum supply voltage of 500 mV.
Yes, it adheres to the automotive standard AEC-Q100, making it suitable for automotive applications.
It supports surface mount technology, facilitating integration into modern PCB assemblies.
This sensor is ideal for industrial, commercial, and communications system current sensing.
The ACHS-7192-000E features an 8-pin configuration.
The isolated design protects the measurement circuitry from high voltages, enhancing safety and reliability.
The sensor is RoHS compliant, meeting environmental safety standards.
It delivers a ratiometric output relative to the supply voltage, ensuring high accuracy in current sensing.
This current sensor is manufactured in the Philippines, ensuring adherence to quality production standards.
