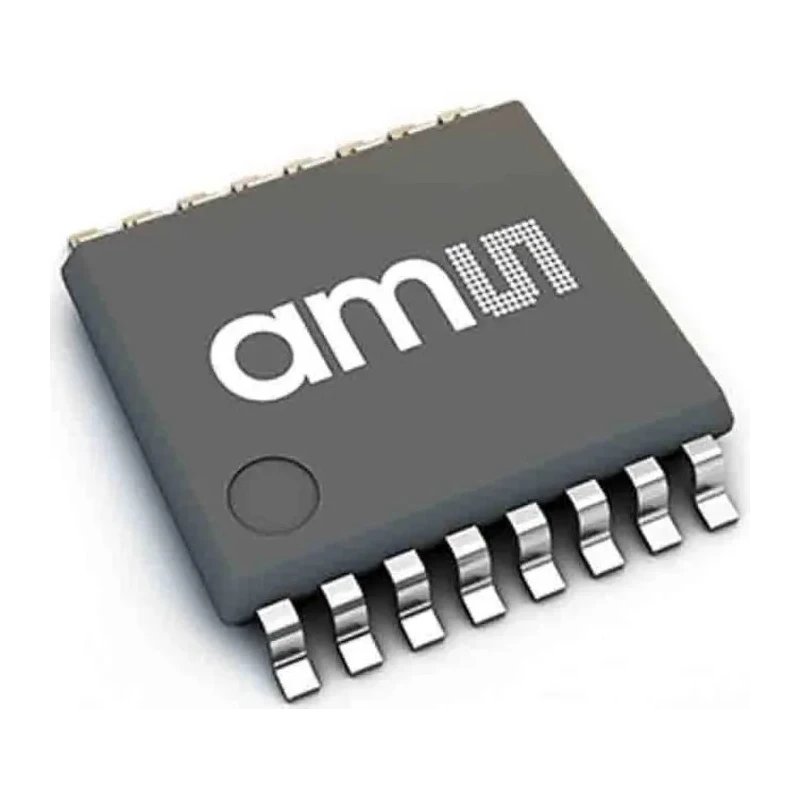

ams OSRAM Absolute Encoder AS5145B Series, Digital Signal, 3V Supply, 4096 PPR, 30,000 RPM, Surface Mount AS5145B
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | ams OSRAM |
| Model | AS5145B |
| Mount Type | Surface |
| Series | AS5145B |
| Overall Width | 6.2mm |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Overall height | 7.8mm |
| Interface Type | SSI |
| Pulses per Revolution | 4096ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 3V |
| Overall Depth | 1.86mm |
| Encoder Technology | Absolute |
| Maximum Revolutions | 30000rpm |
| Output Signal Type | Digital |
Key Features
- Utilizes contactless magnetic sensing for reliable operation.
- Supports a maximum rotational speed of 30,000 RPM.
- Outputs 4096 pulses per revolution (PPR) with digital SSI interface.
- Operates over a wide temperature range from -40°C to 150°C.
- Compact surface mount design measuring 7.8mm height, 6.2mm width, and 1.86mm depth.
- Designed with integrated Hall elements, analogue front-end, and digital signal processing.
- Supplies voltage at a maximum of 3V for low power consumption.
- Compliant with RoHS environmental standards.
Product Description
The ams OSRAM AS5145B Absolute Encoder AS5145B is a high-performance 12-bit programmable magnetic rotary encoder designed for precise angular measurement over a full 360-degree rotation. It features contactless magnetic sensing technology that ensures accurate and reliable operation without physical wear.
Equipped with embedded Hall sensors, an integrated analogue front end, and advanced digital signal processing, this System-on-Chip device delivers digital SSI output signals with high resolution of 4096 pulses per revolution. It supports rational speeds up to 30,000 revolutions per minute, suitable for demanding industrial and motion control applications.
This Absolute Encoder operates on a low maximum supply voltage of 3V and performs reliably across a broad temperature range from -40°C to 150°C. Its compact design with overall dimensions of 7.8 mm height, 6.2 mm width, and 1.86 mm depth allows for space-efficient integration onto surfaces.
The AS5145B's robust surface mount construction and RoHS compliance make it ideal for industrial, automation, and manufacturing environments requiring precise rotary position sensing. It is manufactured in Austria, reflecting high-quality engineering standards.
Utilizes contactless magnetic sensing for reliable operation. Supports a maximum rotational speed of 30,000 RPM. Outputs 4096 pulses per revolution with digital SSI interface. Operates over a wide temperature range from -40°C to 150°C.
Compact surface mount design measuring 7.8mm height, 6.2mm width, and 1.86mm depth. Designed with integrated Hall elements, analogue front-end, and digital signal processing. Supplies voltage at a maximum of 3V for low power consumption.
Compliant with RoHS environmental standards. Manufactured in Austria ensuring quality and reliability.
This encoder is highly suited for use in industrial automation, motion control systems, robotics, and precision measurement instrumentation. Explore more high-quality motion control sensors at EnvMart to meet your engineering and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AS5145B supports a maximum rotational speed of 30,000 RPM.
It outputs a digital signal using the SSI interface.
The encoder provides 4096 pulses per revolution (PPR).
The overall dimensions are 7.8 mm in height, 6.2 mm in width, and 1.86 mm in depth.
It operates reliably over a temperature range from -40°C to 150°C.
The AS5145B operates at a maximum supply voltage of 3V.
It utilizes contactless magnetic sensing technology for reliable operation.
This model features a surface mount design.
Yes, it is compliant with RoHS environmental standards.
The encoder is manufactured in Austria.
It is suited for industrial automation, motion control systems, robotics, and precision measurement instrumentation.
It includes embedded Hall elements, an integrated analogue front end, and digital signal processing.
