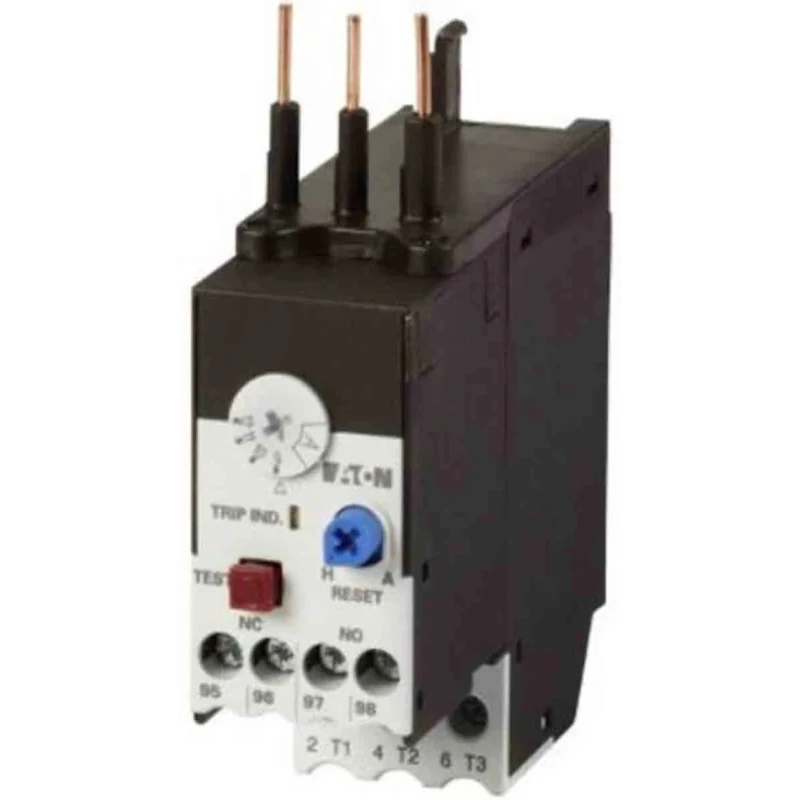

Eaton ZBT Overload Relay 1 NO/1 NC 0.16-0.24A F.L.C 240mA Contact Rating 60W 690V AC 190960 ZBT12-0,24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Length | 97mm |
| Model | 190960 ZBT12-0,24 |
| Depth | 87.5mm |
| IP Rating | IP20 |
| Width | 27mm |
| Mount Type | Direct |
| Series | ZBT |
| Power Rating | 60W |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | GB14048, IEC/EN 60947 |
| Contact Voltage | 690V |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 240mA |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 1P |
| Control Voltage | 690V ac |
| FLC Motor Rating | 0.16, 0.24A |
| Adjustable Current Range | 0.16 → 0.24 A |
Key Features
- Features a 1 pole and throw configuration with 1 normally open and 1 normally closed contact.
- Supports a relay contact current rating of 240 mA for reliable protection.
- Adjustable current range from 0.16 to 0.24 amperes allowing precise motor load control.
- Equipped with screw-type terminals for secure mounting and wiring.
- IP20 rated enclosure suitable for protected indoor environments.
- Operating temperature range from -25°C to 55°C ensures durability in various industrial settings.
- Compact dimensions with width 27 mm, length 97 mm, and depth 87.5 mm for easy integration.
- Complies with GB14048 and IEC/EN 60947 quality and safety standards.
Product Description
Eaton 190960 ZBT12-0,24 Thermal Overload Relay is engineered for precise motor protection in industrial and commercial automation applications. It features a 1-pole design with 1 normally open and 1 normally closed contact, providing reliable overload detection and prompt motor disconnect. The relay supports adjustable current ratings between 0.16 and 0.24 amperes, making it versatile for various motor sizes.
This overload relay has a power rating of 60 watts and operates at a control voltage of 690 volts AC, ensuring compatibility with common industrial power systems. Screw terminal connections provide secure wiring, while the IP20 rated housing safeguards internal components from dust and accidental contact.
Designed for direct mounting and integration with compatible Eaton DILMT series motor starters, it ensures seamless installation into existing control panels. The device meets international standards GB14048 and IEC/EN 60947, underlining its safety and reliability in demanding environments.
Key operational features include a trip-free release mechanism, reset pushbutton for manual or automatic reset, and temperature operating range from -25 to 55 degrees Celsius, suitable for diverse ambient conditions. The relay weighs moderately and has compact dimensions to accommodate tight panel spaces.
Includes 2 auxiliary contacts for additional control functions. Test or off button enables functional verification without circuit removal. Trip-free release ensures motor protection even during manual reset attempts. Compatible with Eaton’s DILMT7, DILMT9, DILMT12, DILMT17, DILMT25, and DILMT32 starters.
Originates from China with strict quality controls ensuring consistent performance.
This Eaton ZBT series overload relay is ideal for industrial manufacturing, automation, HVAC controls, and electrical distribution applications requiring dependable motor overload protection. Explore similar high-quality overload relays and auxiliary contacts from trusted brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton ZBT12-0,24 overload relay features an adjustable current range from 0.16 to 0.24 amperes, allowing for precise motor load control.
This overload relay has compact dimensions: a width of 27 mm, a length of 97 mm, and a depth of 87.5 mm, facilitating easy integration into control panels.
The relay has a contact rating of 240 mA, ensuring reliable protection for connected motors.
This model has a power rating of 60 watts, suitable for various industrial applications.
The maximum operating temperature for this relay is 55°C, making it suitable for various industrial environments.
The Eaton ZBT12-0,24 complies with GB14048 and IEC/EN 60947 quality and safety standards, ensuring its reliability in demanding applications.
This overload relay is designed for direct mounting, allowing for straightforward installation in existing control panels.
It is equipped with screw-type terminals, providing secure wiring connections for reliable operation.
The normal state configuration of this overload relay is 1 normally open (NO) and 1 normally closed (NC) contact, facilitating effective motor protection.
Yes, the Eaton ZBT12-0,24 includes 2 auxiliary contacts for additional control functions.
The minimum operating temperature for this relay is -25°C, allowing it to function effectively in colder environments.
The Eaton ZBT12-0,24 operates at a control voltage of 690 volts AC, making it compatible with common industrial power systems.
