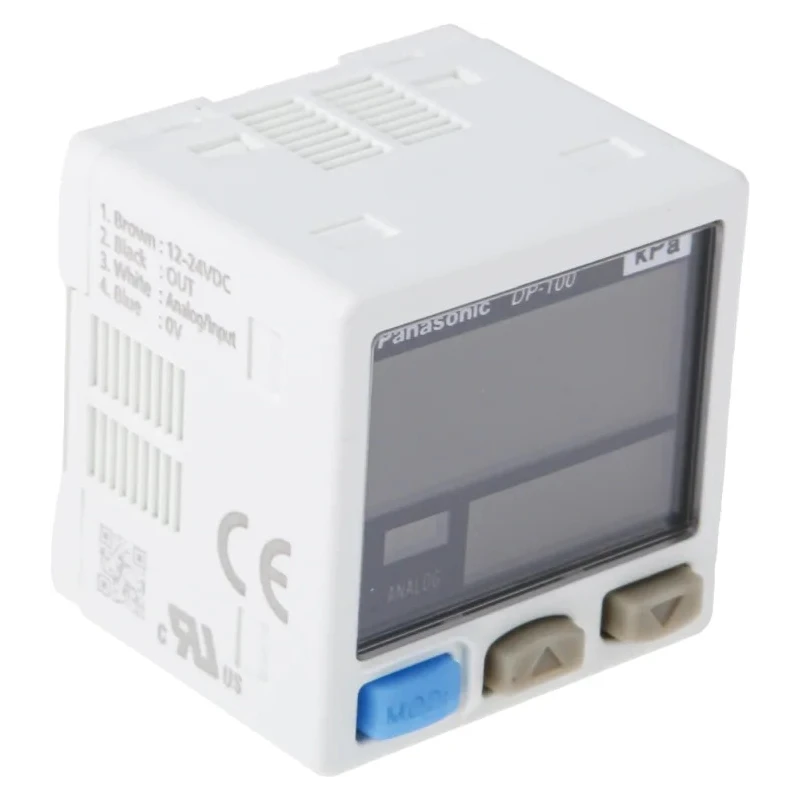

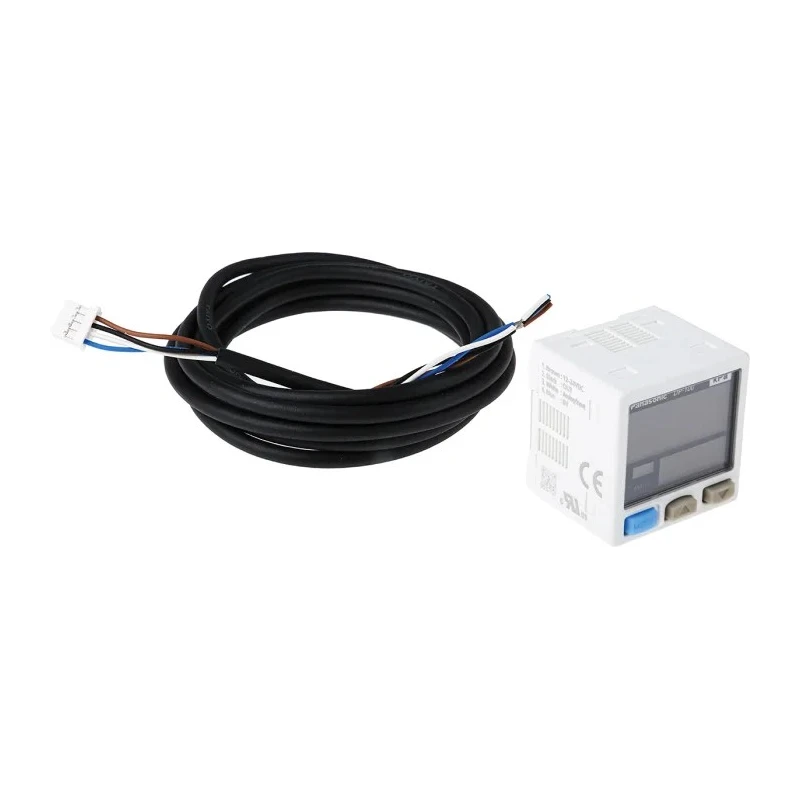

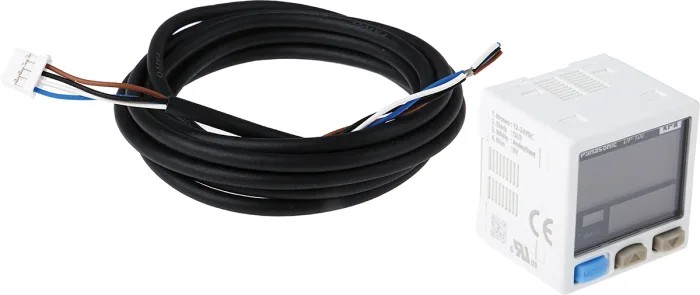

Panasonic DP2 Series Digital Pressure Sensor, Gauge Reading, NPN/PNP Output, -1 bar to 1 bar, Panel Mount DP-101A-M-P

Panasonic DP-101A-M-P digital pressure sensor from the DP2 series provides gauge reading pressure measurement from -1 bar to 1 bar with high precision and reliability. Featuring NPN/PNP output types and panel mount housing made of polybutylene terephthalate, this sensor integrates easily into automation and control systems requiring non-corrosive gas measurement.

The sensor offers a quick response time of 2.5 milliseconds, ensuring timely and precise pressure monitoring. It operates at a supply voltage range of 12 to 24 V dc, suitable for varied industrial devices. Its robust construction includes an IP40 rating and an operating temperature range from -10°C to 50°C, making it well-suited for demanding industrial environments.

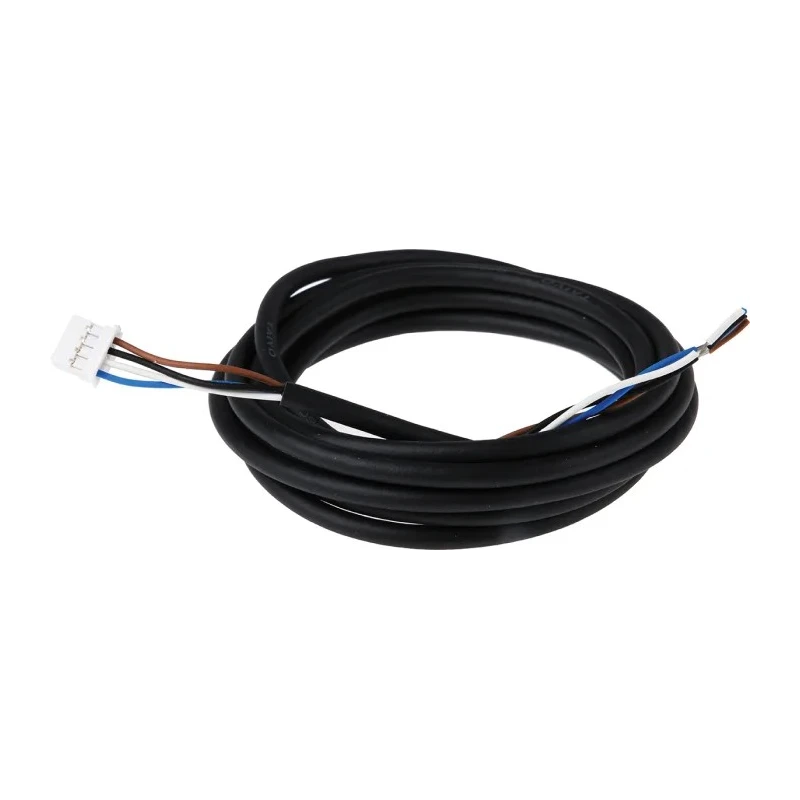

Panasonic's redesigned circuitry improves energy efficiency by lowering power consumption by 14%, and additional energy savings can be achieved by managing the display brightness and shut-off. The dual display enables simultaneous monitoring of current and threshold pressure values, while a key lock function prevents accidental changes. Installation is streamlined with a one-touch cable connection system.

This compact sensor is ideal for applications in industrial automation, manufacturing process control, HVAC systems, laboratories, and electrical equipment requiring precise pressure monitoring. It complies with multiple standards including EN 50082-2, EN 50081-2, EN 61000-6-2, SEMI S2-0200, CE marking, and UL certifications, guaranteeing high safety and electromagnetic compatibility.

This sensor features a fast 2.5ms response time for accurate pressure detection. It operates within a supply voltage range of 12 to 24 V dc to suit various control systems. The housing is made from durable polybutylene terephthalate for reliable panel mounting.

It supports measurement of non-corrosive gases with high accuracy of 0.2% full scale. The device includes multiple standard certifications like CE, UL 61010C-1, and UL 991. Operating temperature ranges from -10°C to 50°C with an IP40 rating for protection.

Energy efficient with redesigned circuitry reducing power consumption by 14% and additional savings with display management. Equipped with dual display showing current and threshold values simultaneously along with a key lock function.

Easy installation with one-touch cable connection and a compact design for precise pressure management. Suitable for automation, electrical control gear, HVAC, manufacturing, and laboratory applications. Explore Panasonic products and related Pressure Sensors categories on EnvMart for high-performance, reliable sensing solutions for industrial and laboratory use.
