Assemtech SPST-NO PCB Reed Switch 1 A 200 V ac/dc RI-46 Kit

Free Delivery in India | Lowest Global Shipping Charges

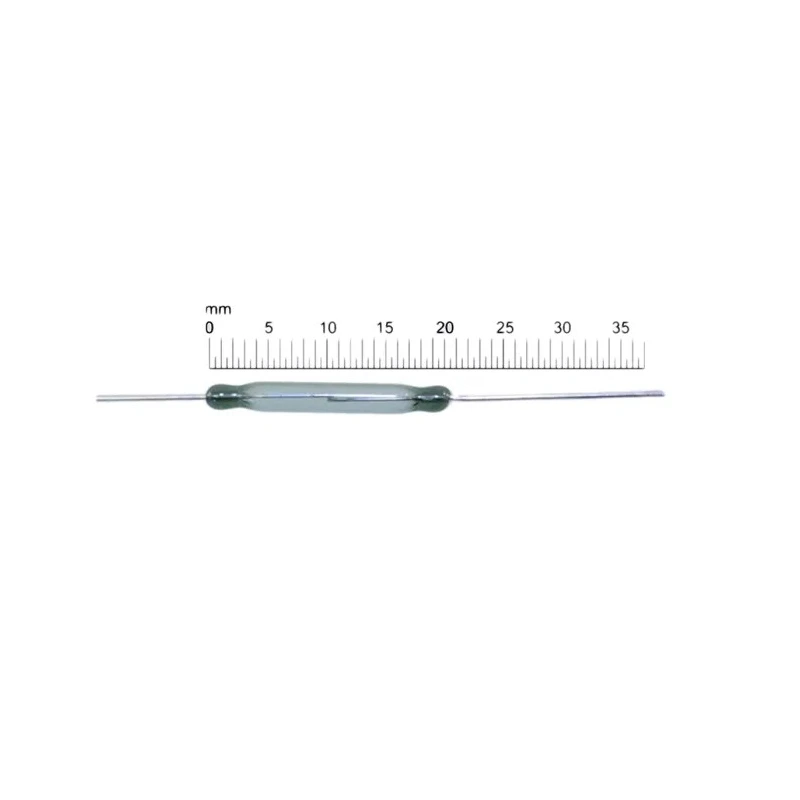

Assemtech SPST-NO PCB Reed Switch 1 A 200 V ac/dc RI-46 Kit

Name: Assemtech SPST-NO PCB Reed Switch 1 A 200 V ac/dc RI-46 Kit
Brand: Assemtech
SKU: 272487
Price: 558.49 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Belgium
Brand	Assemtech
Length	20.5mm
Model	RI-46 Kit
Width	2.7mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	1A
Maximum Operating Temperature	125°C
Contact Configuration	SPST-NO
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	2Ω
Maximum Switching Power	30W
Standards/Approvals	ISO
Maximum Switching Voltage	200V ac/dc
Maximum Release Time	30μs
Operating Time Including Bounce	0.35ms
AT Value Range	46 to 70 AT

Key Features

Hermetically sealed glass envelope providing high reliability and long life.
Single pole, single throw, normally open contact configuration.
Contact material ruthenium on gold ensures low contact resistance of 2 ohms.
Capable of switching power up to 30 W with a maximum switching voltage of 200 V ac/dc.
Mechanical life expectancy of 100 million operations for durable performance.
Compact size with width 2.7 mm and length 20.5 mm suitable for PCB mounting.
Wide operating temperature range from -55°C to 125°C for diverse industrial environments.
Includes various sensitivity levels ranging from 46 to 70 AT for design flexibility.

Product Description

Assemtech RI-46 Kit SPST-NO PCB Reed Switch is a hermetically sealed, gas-filled glass envelope reed switch designed for reliable switching in electronic equipment and automation systems.

This switch features single pole, single throw, normally open contacts with ruthenium on gold contact plating that ensures low resistance and long lifecycle. The switch supports a maximum switching current of 1 ampere and voltage of up to 200 volts AC/DC, making it suitable for moderate power switching tasks.

Mechanical life of up to 100 million operations meets demanding industrial and commercial application needs, while fast release and operating times ensure efficient switching with minimal delay and bounce.

Its PCB mount type with wire terminal connection and compact dimensions (2.7 mm width x 20.5 mm length) allow easy integration into printed circuit boards. Hermetically sealed for protection against environmental contaminants.

Form A switch configuration offering normally open operation. Wide temperature range of -55°C to 125°C enables usage in varied climate and industrial environments. Contact resistance of 2 ohms helps maintain signal integrity.

Suitable for use with electro-magnets or permanent magnets for actuation. Available in kit form with sensitivity range 46 to 70 AT for prototype testing and design optimization. Commonly used in industrial automation, electronic devices, instrumentation, and control systems where reliable magnetic switching is required.

Set includes a range of reed switches in the RI series providing versatility for various switching sensitivities and form factors. Country of origin: Belgium. Explore more Reed Switches and related electrical components at EnvMart for your industrial and electronic design needs.
