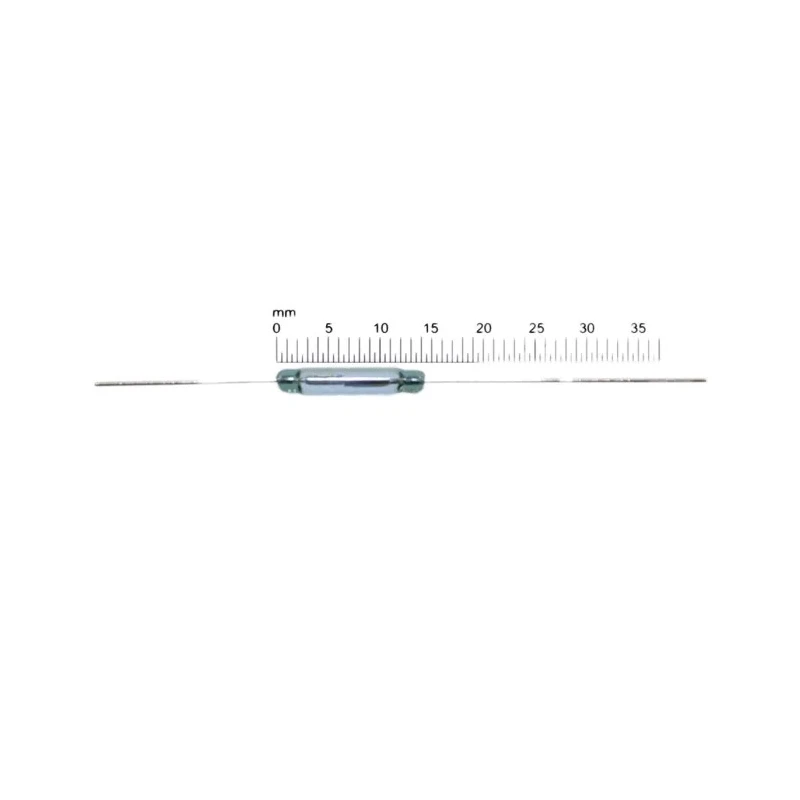

Assemtech SPST-NO PCB Reed Switch 500 mA 200 V RI-03AA

Assemtech RI-03AA SPST-NO PCB Reed Switch is a high-quality component designed for electronic switching, automation, and sensing applications. This reed switch features a single pole, single throw, normally open contact arrangement, making it suitable for control circuits requiring precise opening and closing.

With a maximum switching current of 500 mA and a maximum switching power of 10 W, it is ideal for low-power switching tasks. The contact resistance of 120 milliohms combined with ruthenium on gold contacts ensures excellent electrical performance and durability. The switch is hermetically sealed with a gas-filled glass envelope providing protection from environmental contaminants, thereby enhancing longevity.

Designed for PCB mounting, the switch has wire terminals allowing straightforward integration into circuit boards. It measures 14.5 mm in length and 2.54 mm in width, making it compact and suitable for space-constrained applications. The device operates reliably in a temperature range from -55°C to 125°C, supporting a variety of industrial and commercial environments.

The reed switch operates with rapid switching characteristics including a maximum release time of 30 ms and an operating time including bounce of 0.25 ms. It withstands mechanical stresses with a long lifecycle rated at 100 million operations, ensuring dependable performance over time.

These features, along with compliance to ISO standards and manufacturing in Belgium, make the Assemtech RI-03AA reed switch a robust choice for precise and dependable switching in industrial automation, instrumentation, and instrumentation panels.

This switch features SPST-NO contact configuration suitable for various electronic circuits. It supports a maximum switching current of 500 mA and maximum switching power of 10 W. The contact resistance is low at 120 milliohms due to ruthenium on gold plating ensuring reliable conductivity.

It has a robust operating temperature range from -55°C to 125°C for versatile usage. The reed switch is hermetically sealed in a gas-filled glass envelope for enhanced durability. The device is designed for PCB mounting with wire terminal type facilitating easy integration.

Its compact dimensions include a length of 14.5 mm and width of 2.54 mm. The maximum switching voltage rating is 200 V. Mechanical life expectancy is rated at 10^8 operations, ensuring long-term reliability. Contact material is ruthenium on gold for corrosion resistance.

This Reed Switch complies with ISO standards and is manufactured in Belgium.

For users seeking reliable switching components for electronics manufacturing, automation, or control systems, Assemtech’s RI-03AA offers excellent performance with durable construction and certified compliance. Explore more Assemtech switches and electrical components on EnvMart for your project requirements.
