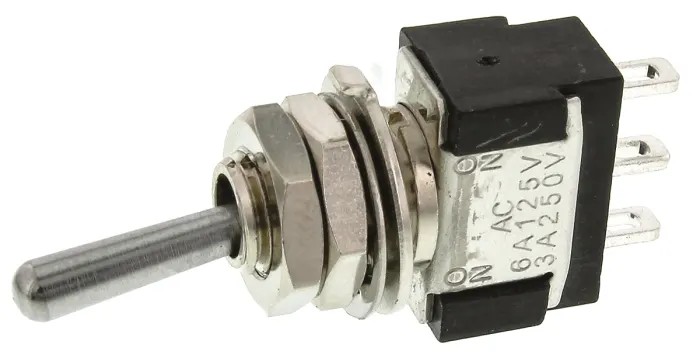

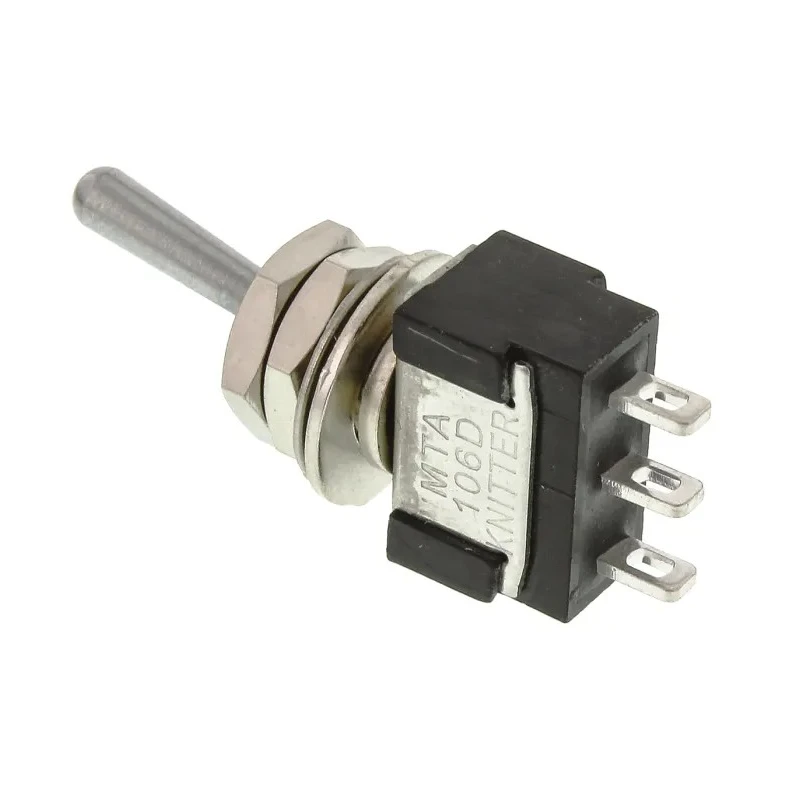

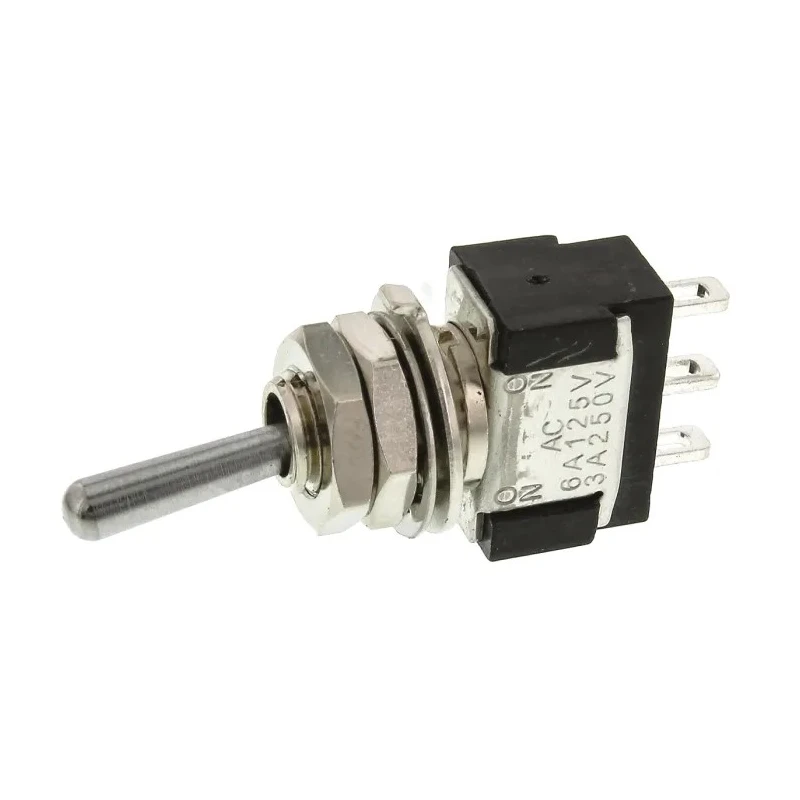

KNITTER-SWITCH Toggle Switch Panel Mount SPDT On-On 30V DC 250V AC Solder Terminal MTA 106 D

KNITTER-SWITCH MTA 106 D toggle switch is a high-quality panel mount toggle switch designed for industrial and commercial electrical applications. It features a single pole double throw (SPDT) On-On switch operation, capable of handling DC voltages up to 30V and AC voltages up to 250V, with a maximum contact current of 4A. This switch is well suited for automation systems, control panels, and various electronic devices requiring reliable switching mechanisms.

The switch includes solder terminals made of copper alloy with silver plating to ensure robust and stable solder connections. The actuator is chrome plated brass providing both durability and corrosion resistance, while the insulating case is made from Diallyl Phthalate compliant with UL 94 V-0 flammability standards, enhancing safety during operation.

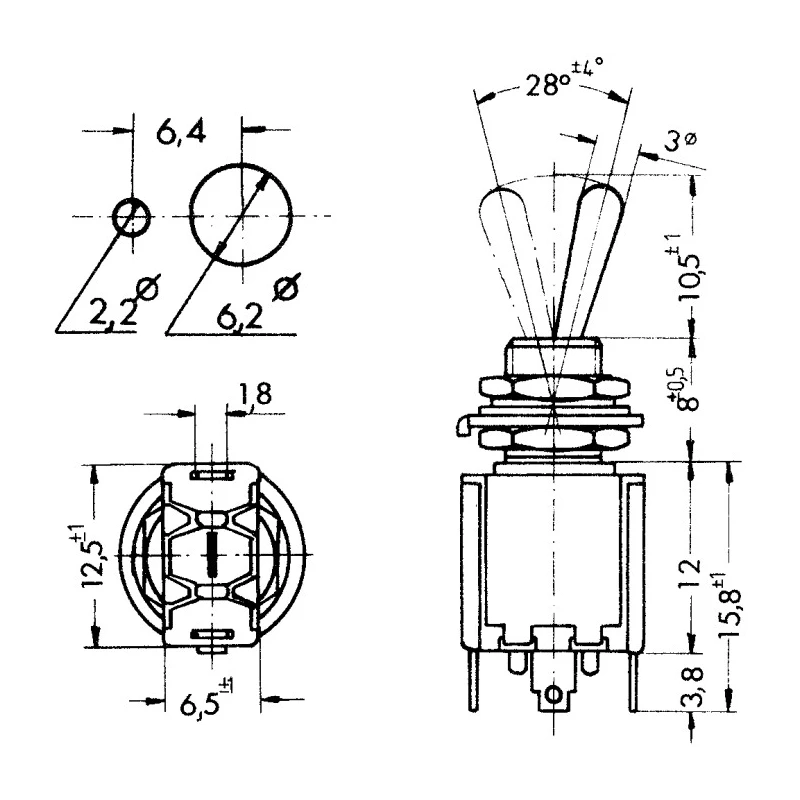

Physically compact, the switch measures 32.5 mm in height, 13 mm in length, and 8 mm in width, with a panel cutout size of 6.2 mm. It features an actuator length of 10.5 mm and a mounting mechanism comprising an M6 x 0.75 bushing with locking plate keyed at 9 mm to securely fix the component in place. It is designed to operate reliably within a wide temperature range of -45°C to 140°C, and it is rated for 200000 mechanical operation cycles, highlighting its long-lasting performance.

Electrical safety is further assured by an insulation resistance exceeding 1000 MΩ at 500 Vdc and a dielectric strength of 1500 V at 50 Hz for 1 minute, making this toggle switch suitable for demanding environments. It is RoHS compliant and UL certified, making it an excellent choice for manufacturers focused on quality and regulatory compliance. The switch is manufactured in China under the MTA series by KNITTER-SWITCH.

Designed for panel mounting with a 6.2 mm cutout size. Operates up to 30V DC and 250V AC with a 4A contact current rating. Features solder terminals for secure electrical connections. Construction includes copper alloy components and a chrome plated brass actuator.

Rated for a mechanical life of 200000 cycles, ensuring durability. Operates reliably in temperatures from -45°C to 140°C. Compact dimensions of 32.5mm height, 13mm length, and 8mm width. Includes M6 x 0.75 bushing with locking plate and key 9 mm.

Complies with RoHS and UL standards for safety and quality. Insulation resistance greater than 1000 MΩ at 500 Vdc for electrical safety. Explore the full range of Toggle Switches and components at EnvMart for all your electrical installation and automation requirements.
