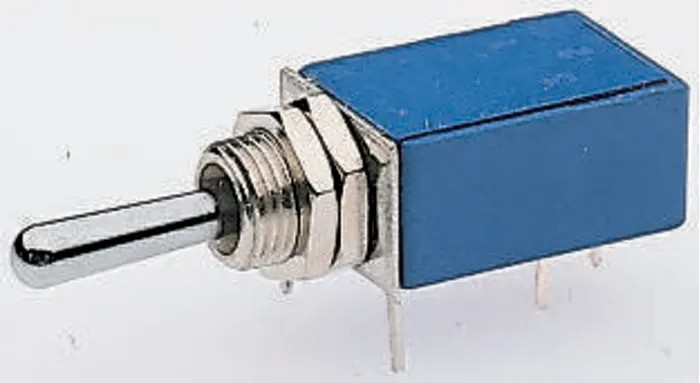

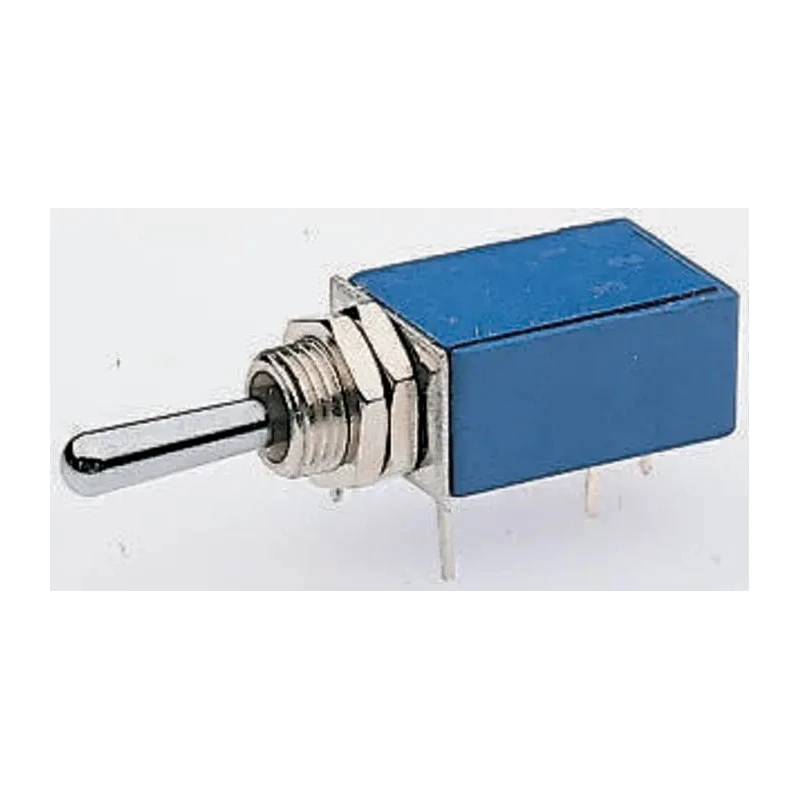

APEM Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 30V dc 125V ac 21146NA
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 35.5mm |
| Length | 11mm |
| Model | 21146NA |
| Width | 11.3mm |
| Mount Type | PCB |
| Series | 21000N |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Minimum Load | 100mA @ 10V |

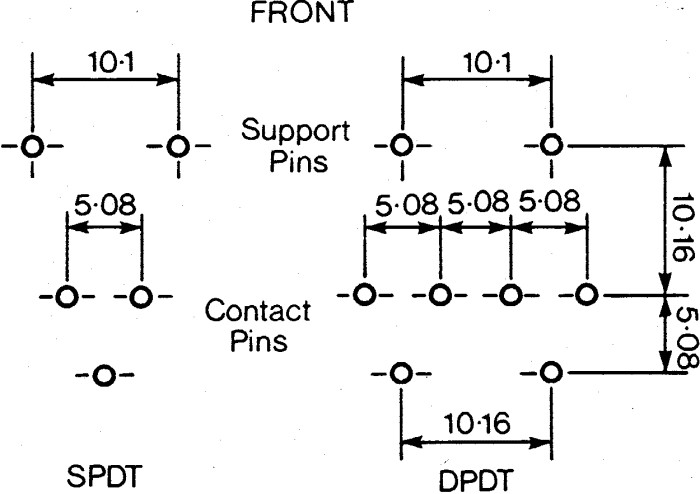

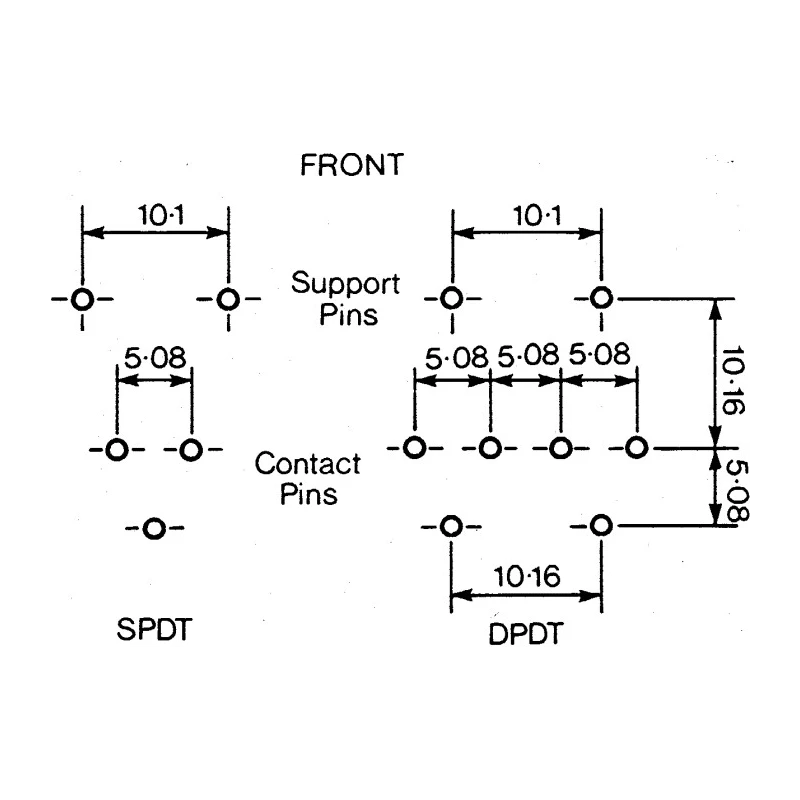

| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 11.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 125V ac |
| Actuator Material | Brass |
Key Features
- Designed for PCB mounting with through hole terminals for secure connection.
- Double Pole Double Throw (DPDT) switch configuration for versatile circuit control.
- On-On switch operation ensures stable switching between two circuits.
- Durable brass actuator and chrome-plated contacts ensure long service life.
- Compact size with 11mm length and 11.3mm width fits various PCB layouts.
- Mechanical life rated for 100000 operations and electrical life for 20000 operations.
- Operating temperature range from -40°C to 85°C for wide environmental compatibility.
- Panel cutout size of 6.5 mm for neat and easy installation.
Product Description
APEM 21146NA Toggle Switch is a robust PCB mount switch designed for industrial and electrical applications requiring reliable On-On DPDT operation. Featuring a 4A contact current rating and voltage limits of 30V DC and 125V AC, this switch suits control circuits in automation, instrumentation, and manufacturing equipment.
The switch uses through hole terminals ensuring secure mounting on PCBs, with a compact footprint of 11 mm by 11.3 mm and a panel cutout size of 6.5 mm, allowing space-efficient integration.
A durable brass actuator paired with chrome plated silver contacts offers enhanced longevity and low contact resistance for consistent performance under mechanical and electrical stress.
This toggle switch delivers an extended mechanical life of 100000 operations and electrical life of 20000 operations, making it suitable for frequent switching environments. It operates reliably in temperature ranges from -40°C to 85°C, supporting demanding industrial and laboratory conditions.
Manufactured in France with RoHS compliance, the APEM 21146NA ensures environmental safety and high-quality standards. Designed for PCB mounting with secure through hole terminals. DPDT switch type offering versatile circuit control options.
On-On operation mode supports dual circuit switching. Durable materials including brass actuator and silver contacts. Compact and precise dimensions for integration on standard PCBs. High mechanical and electrical lifespan suited for industrial use.
Wide operating temperature tolerance from -40°C to 85°C. Panel cutout of 6.5 mm for easy installation. Manufactured in France with RoHS compliance.
This Toggle Switch is ideal for industrial electronics, automation systems, manufacturing controls, and other electrical applications requiring robust and reliable switching performance. Browse EnvMart for a wide range of compatible switches and components from top brands including APEM.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is Double Pole Double Throw (DPDT), allowing for versatile circuit control.
This unit has a contact DC voltage rating of 30V and an AC voltage rating of 125V.
The switch contact current rating is 4A, suitable for various control circuits.
It operates within a temperature range of -40°C to 85°C, making it suitable for a wide variety of environments.
The mechanical life of this model is rated for 100,000 operations, ensuring longevity in frequent use.
This toggle switch features through hole terminals, which provide secure mounting on PCBs.
The required panel cutout size for installation is 6.5 mm, allowing for neat integration into panels.
This toggle switch is manufactured in France, ensuring compliance with high-quality standards.
The actuator is made of brass, and the contacts are chrome-plated silver, providing enhanced longevity and performance.
The minimum load requirement is 100mA at 10V, which is necessary for proper operation.
This model is RoHS compliant, ensuring it meets environmental safety standards.
It is ideal for industrial electronics, automation systems, and manufacturing controls, where reliable switching is required.
