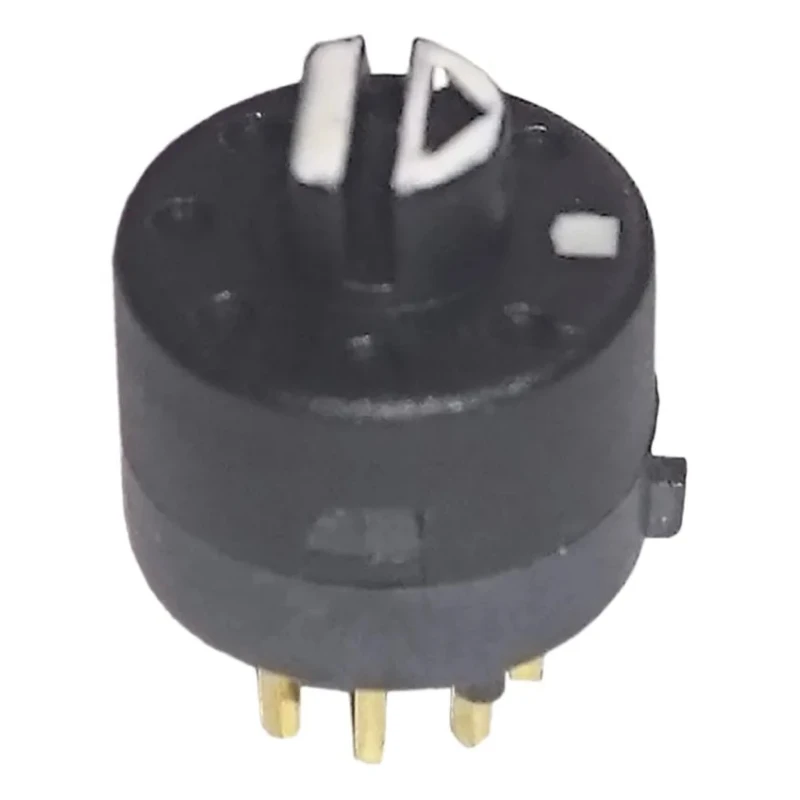

Lorlin MT SP3T Rotary Switch 500mA PCB Terminal Fibreglass Reinforced Polybutylene Terephthalate Housing 9.2mm Diameter SP3T

Lorlin MTS-11-30 is a subminiature TO-5 SP3T rotary switch designed for compact PCB mounting applications with a 500mA switch contact current capacity. This rotary switch features a moulded 9.2mm diameter case made from Fibreglass Reinforced Polybutylene Terephthalate housing material, ensuring durability and excellent electrical insulation.

It supports a maximum AC voltage rating of 500V and a maximum DC voltage of 24V, making it suitable for various low power switching tasks. The switch has 8 contact poles, configured for an off position with a 90° throw angle and 45° indexing that provides positive action for reliable switching performance.

With a mechanical life rated for over 5000 cycles, this switch is engineered for long-lasting operation. It functions reliably across a wide operating temperature range from -30°C to 65°C, suitable for industrial, electronic, and automation environments.

The rotary switch comes equipped with PCB terminal pins spaced at 2.54mm between pins and 5.08mm between rows, facilitating standard PCB integration. The actuator is black for clear visibility without illumination. Ideal for isolating and controlling electrical circuits on PCBs, it is widely used in electrical, automation, and electronic equipment.

The switch’s subminiature form factor and robust housing provide compactness with durability. High current rating for its size ensures effective control of circuits up to 500mA. The 8 poles and multiple positions support complex switching needs.

Positive indexing and operation angle deliver precise switching action. Wide temperature tolerance allows use in industrial and commercial applications. PCB mounting type simplifies design and assembly in electronic devices.

Meets RoHS standards ensuring compliance and environmental safety.

Whether used in industrial automation, laboratory equipment, or consumer electronics, the Lorlin MTS-11-30 SP3T rotary switch offers a reliable, durable solution for precise electrical switching needs. Explore more Rotary Switches and related electrical components in the Electronics & Electricals category at EnvMart.
