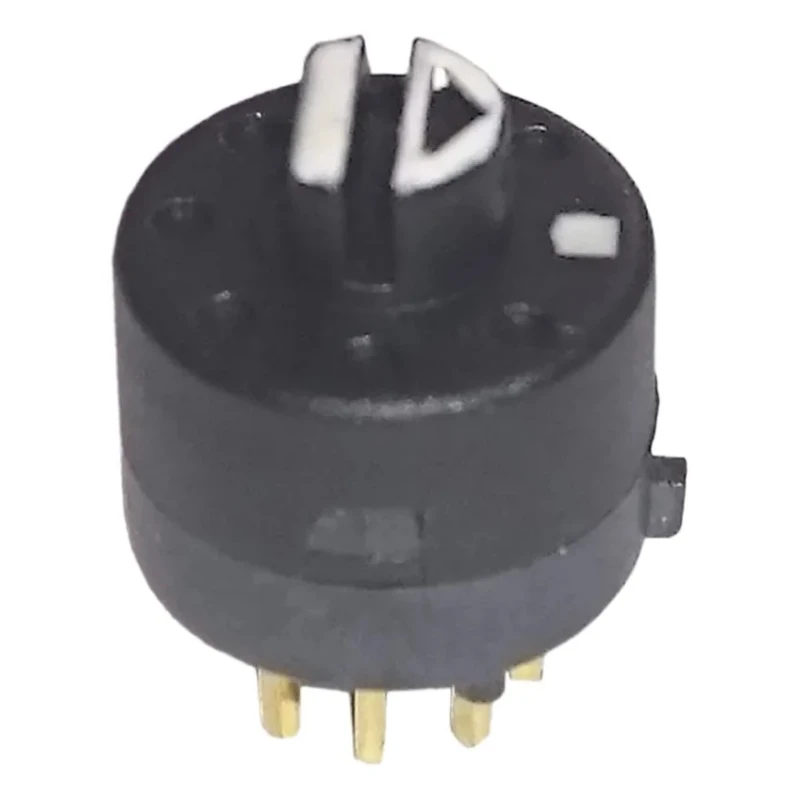

Lorlin MT SP5T Rotary Switch, 500mA Current Rating, 9.2mm TO-5 Package, PCB Terminal SP5T

Lorlin SP5T Rotary Switch model from the MT series is a subminiature rotary switch designed for precise switching tasks in electronics and electrical engineering. This compact switch is housed in a moulded 9.2mm diameter TO-5 package, making it suitable for space-constrained circuit assemblies.

It features a SP5T contact configuration with a high switch contact current rating of 500mA at 24V DC. The switch is designed with a housing made of fibreglass reinforced polybutylene terephthalate, ensuring durability and excellent electrical insulation.

The rotary switch has 8 poles and offers an angle of throw of 180°, with a mechanical life expectancy of over 5000 cycles. The unit’s operating temperature range from -30°C to +65°C allows it to perform reliably in a variety of environments.

With PCB mounting type and PCB terminal connectors featuring 2.54mm pin spacing and 5.08mm row spacing, installation on printed circuit boards is straightforward. The actuator is black colored, contributes to ease of operation, and the device’s footprint includes 9.2mm width and depth dimensions with a height of 6.47mm.

Compact moulded rotary switch ideal for panel and PCB mounting applications. High current rating of 500mA at 24V DC ensures durable electrical performance. Constructed with fibreglass reinforced polybutylene terephthalate housing for robust insulation.

Features 8 poles and SP5T contact configuration with 180° angle of throw. Mechanical life rated at 5000 cycles providing reliable operation over time. Operates effectively between -30°C to +65°C temperature range. Includes PCB terminals with 2.54mm pin spacing and 5.08mm between rows for easy PCB integration.

Actuator color is black, with a height of 6.47mm and depth of 9.2mm.

This Rotary Switch is ideally suited for industrial electrical applications, automation systems, and electronic control panels that demand compact yet reliable switching components. Its small form factor combined with a strong mechanical and electrical rating makes it a versatile choice for electronic designers and manufacturers.
