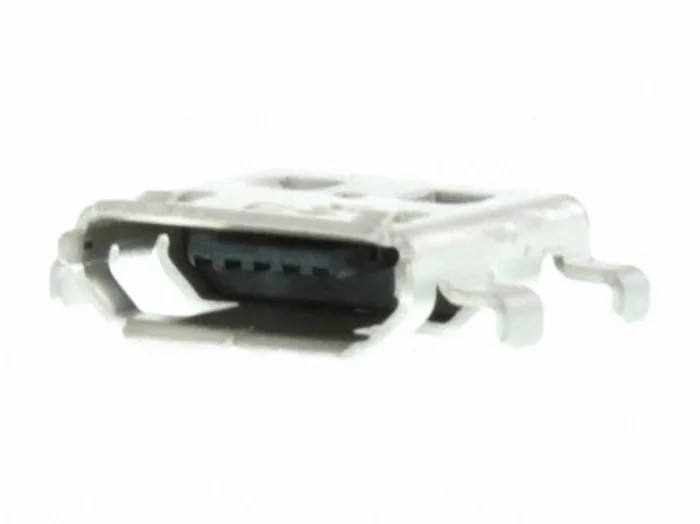

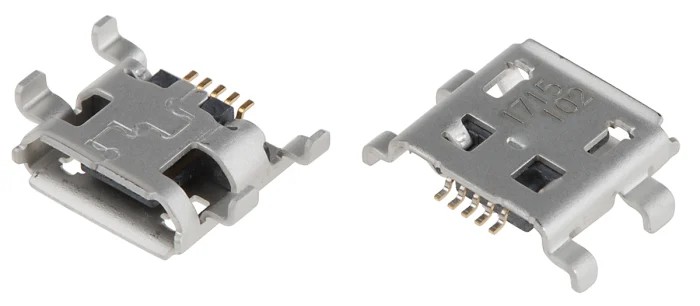

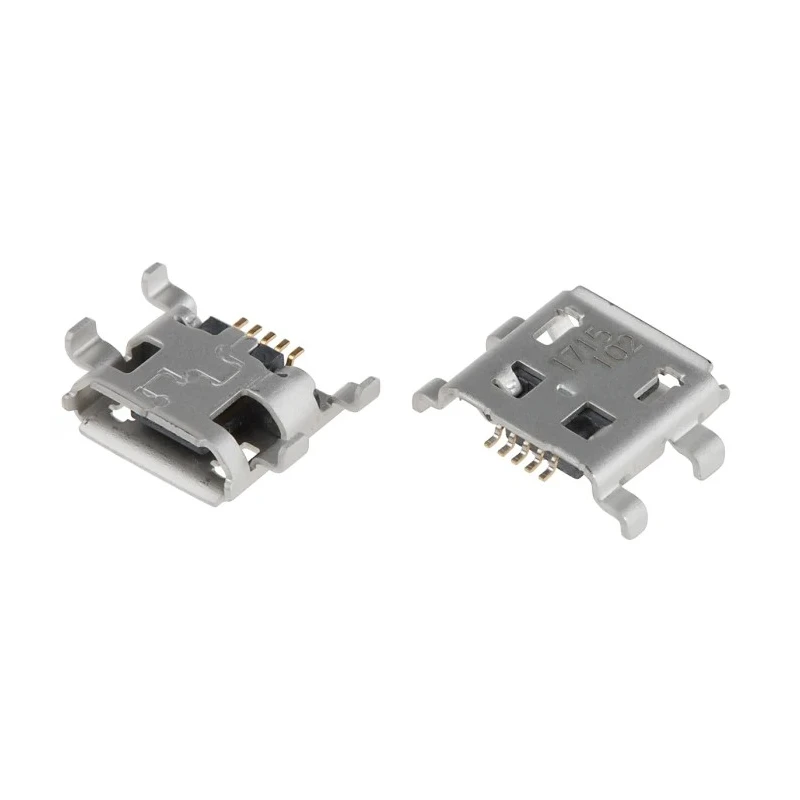

Molex Right Angle Through Hole Female 1 Port Micro USB Type B USB Connector USB 2.0 47642-0001

Molex 47642-0001 is a right angle, through hole mounted female USB connector designed for Micro USB Type B applications supporting USB 2.0 data transfer and power supply.

This connector features a compact 0.65 mm pitch suitable for PCB applications with limited space. The robust liquid crystal polymer (LCP) housing offers strong impact resistance, making it ideal for industrial and harsh environments.

The laser-welded stainless steel shell ensures mechanical strength and provides full EMI shielding to maintain signal integrity in electrically noisy settings. The gold-plated copper alloy contacts optimize electrical performance by ensuring excellent conductivity and corrosion resistance.

Rated for 1.8 A current and up to 30 V operating voltage, this unit supports a wide operating temperature range from -30°C to +85°C, allowing reliable functionality in demanding thermal conditions.

This connector supports On-The-Go (OTG) technology, enabling portable devices such as digital still/video cameras, handheld devices, and flash drives to communicate directly without needing a host PC.

The design includes a lead-in feature to facilitate blind mating to cable plugs and latching tabs that guarantee secure mating connections. The edge contact beam geometry ensures high-speed data transmissions required for modern digital applications.

This product is flame-retardant, ceasing to burn within 10 seconds upon flame exposure, contributing to overall system safety.

The connector’s mechanical lifespan exceeds 10,000 insertion cycles, offering durability and long service life in industrial, laboratory, commercial electronics, and consumer electronic devices.

Compact through hole mount Micro USB Type B connector. Robust construction with stainless steel shielding for EMI protection. Gold-plated copper alloy contacts for corrosion resistance. Supports USB 2.0 standard for high speed data transfer.

Wide operating temperature from -30°C to 85°C for industrial use. Flame-retardant material with self-extinguishing capability. On-The-Go (OTG) compliant for direct device communications. Mechanical durability rated for 10,000 mating cycles.

Right angle orientation optimizes PCB space.

Ideal for use in industrial electronics, personal handheld devices, digital cameras, and flash memory equipment. Molex connectors are trusted components for reliable performance and long-term connectivity in demanding applications.
