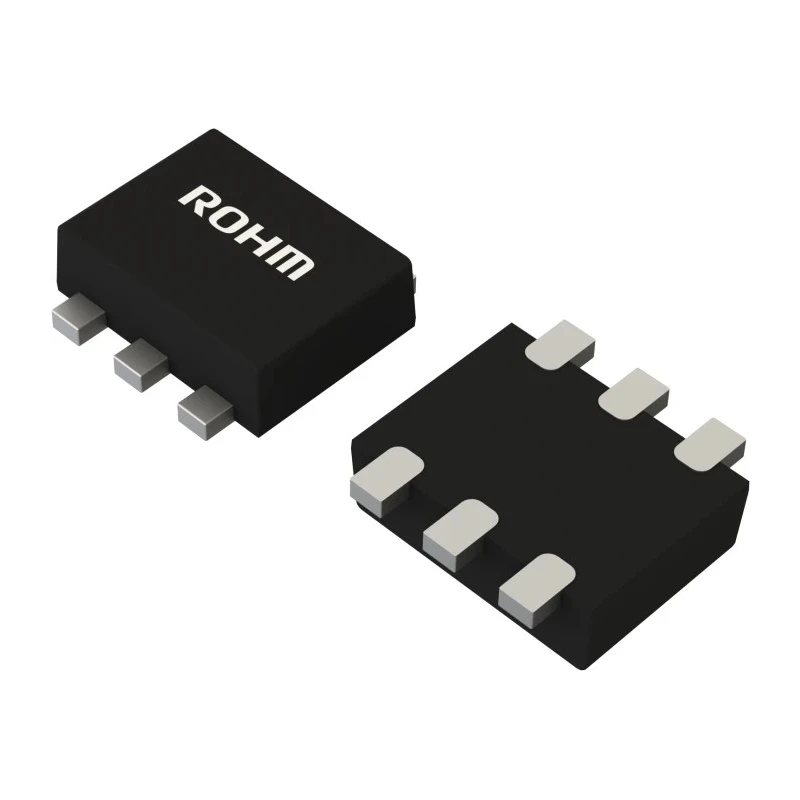

ROHM Digital Transistor Dual NPN/PNP 50 V 100 mA Surface Mount SOT-563 6-Pin EMD72T2R

ROHM EMD72T2R digital transistor is a dual NPN/PNP bipolar transistor designed for surface mount applications in compact electronic circuits. It is housed in a space-saving SOT-563 package featuring six pins, enabling versatile dual-transistor configurations on a single small component footprint.

The device is capable of handling a maximum collector emitter voltage (Vceo) of 50 volts and a continuous collector current (Ic) up to 100 mA. It has a power dissipation rating (Pd) of 150 mW, ensuring efficient operation without overheating under typical use conditions.

The transistor features a minimum DC current gain (hFE) of 68, supporting reliable amplification and switching performance in digital and analog circuits. Its independent transistor elements reduce signal interference and enable simplified PCB layout, cutting down mounting cost and assembly area.

Physical package dimensions measure 1.7 mm in width, 1.7 mm in length, and 0.55 mm in height. This miniature form factor suits applications in compact industrial, laboratory, automotive (non-AEC-Q100 grade), and consumer electronics.

The EMD72T2R operates reliably within a wide storage temperature range of -55°C to 150°C. Equivalent part numbers include the DTA043Z and DTC043Z series, offering design flexibility for electronic engineers and manufacturers.

Supports maximum collector emitter voltage of 50 V. Maximum continuous collector current is 100 mA. Power dissipation rating is 150 mW. Minimum DC current gain (hFE) is 68. Compact SOT-563 surface mount package with 6 pins.

Independent transistor elements for reduced interface and mounting cost. Package size 1.7 mm × 1.7 mm × 0.55 mm. Operating and storage temperatures -55°C to 150°C. Equivalent to DTA043Z and DTC043Z.

This ROHM digital transistor is ideal for industrial automation, power management circuits, consumer electronics, and laboratory instrumentation. Its efficient surface mount design allows for high-density PCB layouts and thermal stability in demanding applications.
