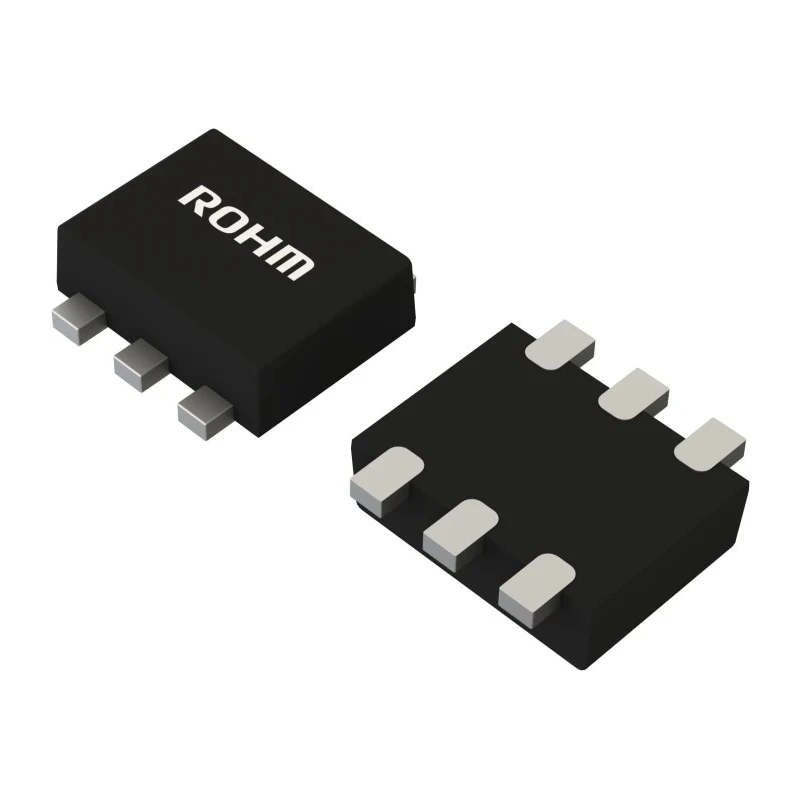

ROHM Digital Transistor Dual NPN/PNP 50 V 100 mA Surface Mount SOT-563 6-Pin EMD52T2R

ROHM EMD52T2R digital transistor is a precision dual NPN/PNP transistor housed in a compact SOT-563 surface mount package with 6 pins. It is optimized for low-power switching and amplification tasks with a maximum collector emitter voltage rating of 50 V and a continuous collector current of 100 mA. The independent transistor elements eliminate interface complexity and reduce PCB footprint, making it ideal for high-density electronic applications.

This device features a power dissipation capability of 150 mW and a minimum DC current gain of 68, providing reliable performance in signal processing circuits. Compact physical dimensions of 1.7 mm length, 1.7 mm width, and 0.55 mm height enable space-saving designs in modern electronics.

It operates reliably within a wide storage temperature range from -55°C to 150°C, ensuring durability across industrial and commercial electronics. The EMD52T2R transistor is suitable for a variety of applications including consumer electronics, industrial control systems, and instrumentation circuits.

The transistor elements function independently, allowing reduced mounting cost and PCB area. Surface mount SOT-563 package supports automated assembly processes. Power dissipation rating ensures stable operation within specified limits.

Compact form factor supports miniaturized electronic designs. Ideal for low power switching and amplification needs in digital circuits. Compatible replacement for DTA024E and DTC024E transistor families. No automotive standard certifications; designed for general-purpose industrial use.

Wide operational and storage temperature range for enhanced reliability.

This Digital Transistor from ROHM is integral to electronic designs requiring compact, reliable dual transistor functionality with moderate voltage and current ratings. It is widely used across electronics manufacturing, industrial automation, laboratory instruments, and consumer device assembly.
