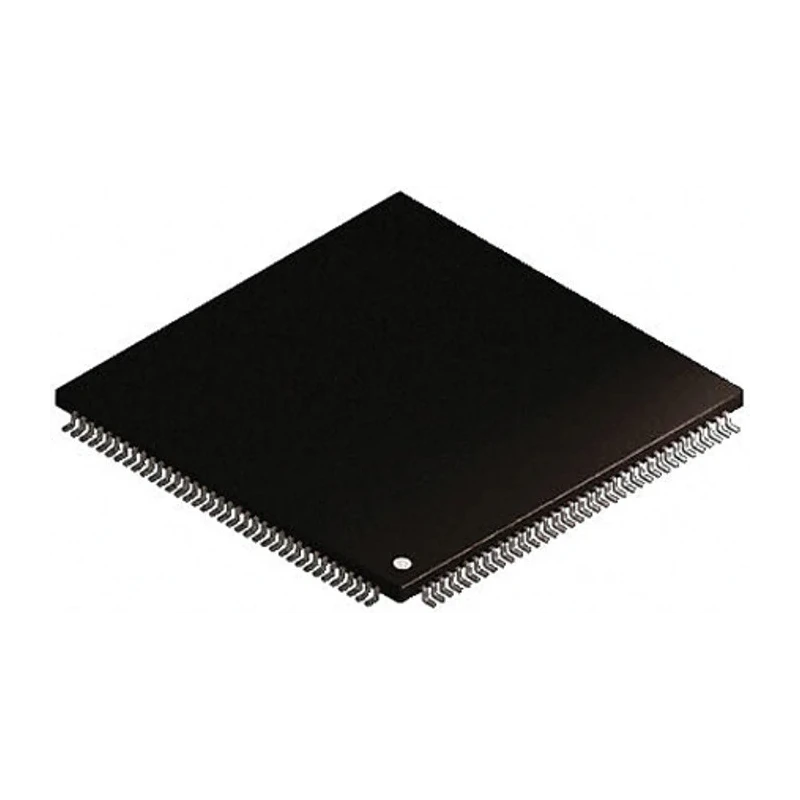

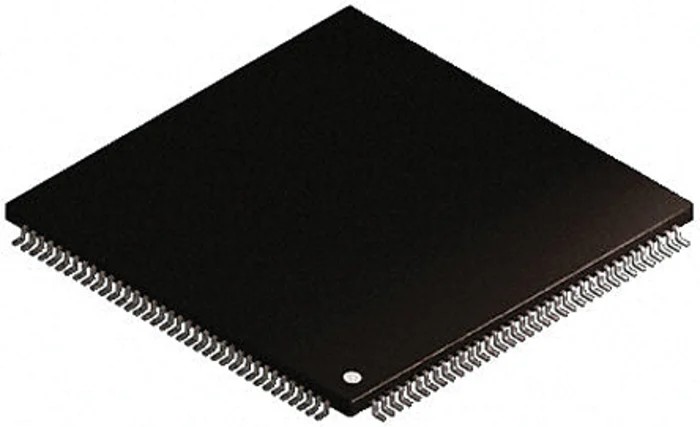

STMicroelectronics STM32F4 Series 32-Bit ARM Cortex-M4 Microcontroller, 180 MHz, 1.024MB FLASH, 144-Pin LQFP STM32F427ZGT6

STMicroelectronics STM32F427ZGT6 is a 32-bit ARM Cortex-M4 microcontroller featuring a 180 MHz processor speed and 1.024MB of Flash memory, packaged in a 144-pin LQFP surface mount.

This microcontroller incorporates an ARM Cortex-M4 core with a floating point unit (FPU), providing efficient digital signal processing and enhanced performance for embedded applications. It offers 256 kB of SRAM along with 24 x 12-bit analog-to-digital converters (ADCs) and 2 x 12-bit digital-to-analog converters (DACs) to support sophisticated analog interfacing.

The STM32F427ZGT6 supports a versatile set of communication interfaces, including USARTs, UARTs, SPI, I2C, CAN, and SDIO, making it adaptable for diverse embedded system requirements. It is designed to operate at a maximum clock frequency of 180 MHz while maintaining a maximum power dissipation of 500 mW, supporting low-power modes to extend battery life in portable devices.

Robust in harsh environments, this microcontroller operates over a wide temperature range of -40°C to 125°C, facilitating industrial and automotive use cases. Its 168 programmable I/O pins and 14 timers provide extensive control and timing capabilities, suitable for complex user interfaces, control systems, and sensor management.

With an extensive set of features such as a true random number generator, real-time clock, and extendable memory interfaces including CompactFlash, SRAM, PSRAM, NOR, NAND, and SDRAM, the STM32F427ZGT6 is engineered for embedded applications in medical equipment, alarm systems, programmable logic controllers (PLCs), and user interfaces.

Integrated ARM Cortex-M4 CPU with FPU and DSP instructions. 1.024MB Flash and 256kB SRAM memory for advanced application needs. Wide operating voltage from 1.7 V to 3.6 V and low power consumption. Rich set of communication peripherals and I/O pins for flexible connectivity.

Extended industrial operating temperature for demanding environments. Compact and robust 144-pin LQFP package. Multiple timers and ADC/DAC channels enable precise control and data acquisition. Includes audio connectivity support and cryptographic acceleration on STM32F437 variant.

Supports extended external memory through flexible memory controller interfaces.

This STMicroelectronics microcontroller is ideal for high-performance embedded solutions, combining power efficiency with extensive peripheral connectivity. Explore more STM32F4 series Microcontrollers and components at EnvMart for diverse industrial, medical, and consumer electronics applications.
