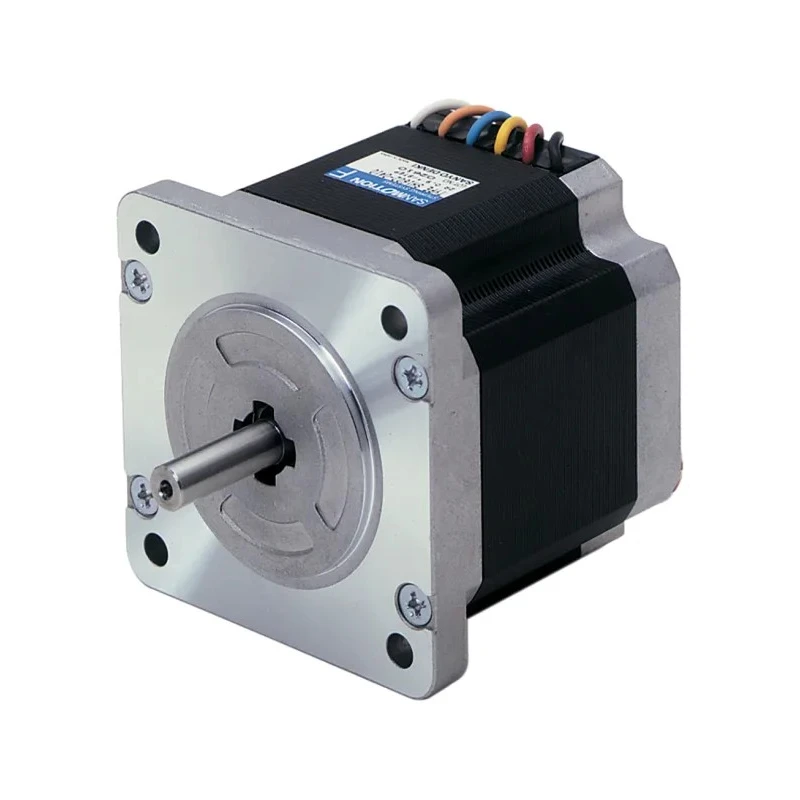

Sanyo Denki SM2863 Series Stepper Motor 100V, 9Nm Holding Torque, 1.8° Step Angle, 85.5 x 85.5 mm Frame, 14 mm Shaft SM2863

Sanyo Denki SM2863 series stepper motor SM2863-5151 offers a reliable and powerful solution for industrial automation with a holding torque of 9Nm and operating voltage of 100V. Its bipolar winding design utilizes both coils to maximize torque output, making it suitable for demanding applications such as CNC machines, robotics, and process automation.

The motor frame measures 85.5 x 85.5 mm with a depth of 128.5 mm, making it compact enough for tight spaces while maintaining robust performance. It has a shaft diameter of 14 mm and shaft length of 30 mm to ensure stable mechanical coupling and transfer of rotary motion. The step angle of 1.8° allows for precise incremental motion control which is critical in high-accuracy industrial equipment.

This stepper motor supports vertical and horizontal mounting options, further increasing its versatility in various machine designs. It is rated IP40, providing protection against solid objects greater than 1 mm and against water spray up to 60 degrees from vertical, making it suitable for typical industrial environments. The low resistance per phase of 1Ω improves electrical efficiency, reducing operational losses.

Sanyo Denki ensures that this motor meets international quality and safety standards, with certifications including CE, RoHS compliance, TUV, and UL approvals. Applications for the SM2863 series include process automation, robotics systems, printing, and scanning equipment, where precise and reliable motion control is essential.

Stepper motors like the SM2863 offer advantages over DC brushed motors by eliminating brushes which reduces maintenance requirements and increases operational lifespan. This motor runs on 100V supply voltage suitable for low-power industrial systems.

This stepper motor has a compact 85.5 x 85.5 mm frame size suitable for constrained installation spaces. Step angle of 1.8° provides smooth and accurate incremental rotation. The motor features a 14 mm diameter shaft with 30 mm length for robust mechanical coupling.

IP40 rating protects internal components from solid objects and limited moisture exposure. Designed for vertical or horizontal mounting configurations enhancing installation flexibility. Four lead wires allow easy electrical connection in bipolar winding setup.

This motor is CE, RoHS compliant and carries TUV and UL approvals ensuring high safety and quality standards. Discover more high-quality Stepper Motors and industrial automation components at EnvMart for your precision engineering needs.
