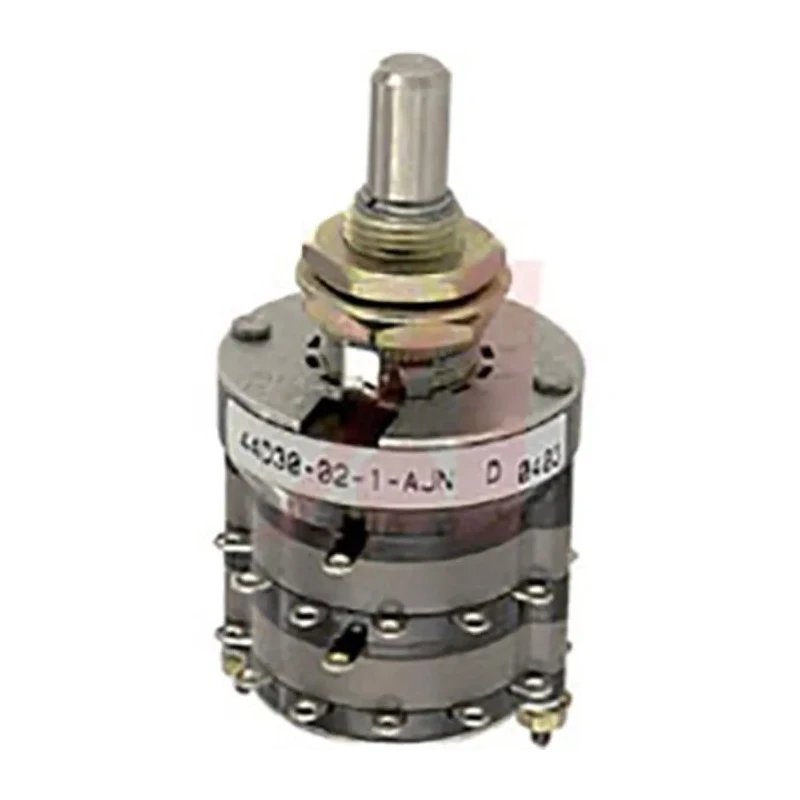

Grayhill 10-Position Rotary Switch, 1A, Zinc and Stainless Steel Housing, Solder Lug DP10T

Grayhill DP10T Rotary Switch is a rugged, 10-position rotary switch designed for reliable operation in electrical and automation applications. With a robust construction featuring zinc, stainless steel, and thermosetting materials, this switch is built to last and perform consistently under demanding conditions.

This single-pole switch handles a contact current of 1 Amp and is suitable for both AC and DC voltages up to 125V ac and 28V dc respectively. The solder lug terminal type facilitates secure soldered connections, making it ideal for PCB mounting configurations.

The silver actuator offers precise control with a 36-degree angle of throw and is non-illuminated. This switch operates reliably across a broad temperature range from -65°C to 85°C, making it suitable for various industrial environments. Its mechanical life rating of 100,000 cycles promises extended service life.

The 29.51 mm width, 25.4 mm diameter, and 11.1 mm height provide a compact form factor suitable for tight spaces. This product complies with RoHS and UL standards, ensuring adherence to environmental and safety requirements. It is manufactured in the United States, reflecting high quality and reliability standards.

Grayhill's 42 & 44 series rotary switches, including this DP10T model, feature adjustable stops and are available in multi-deck versions for complex circuit designs. This product is an excellent choice for industrial electrical applications requiring precise and durable rotary switching solutions.

Constructed with zinc, stainless steel, and thermosetting housing materials. Single pole with 10 switching positions for versatile application. Operates within a wide temperature range of -65°C to 85°C. Equipped with solder lug terminals for reliable electrical connections.

Rated for 1 Amp contact current, suitable for AC and DC use. Compact size with 29.51 mm width and 25.4 mm diameter. Mechanical life of 100,000 cycles for extended durability. Certified to RoHS and UL standards for safety and environmental compliance.

Manufactured in the United States to ensure quality standards.

Ideal for industrial, commercial, and laboratory electrical control systems, this Grayhill DP10T rotary switch supports precise circuit control and reliable switching. Explore more Rotary Switches and related components for your electronic and automation needs on EnvMart.
