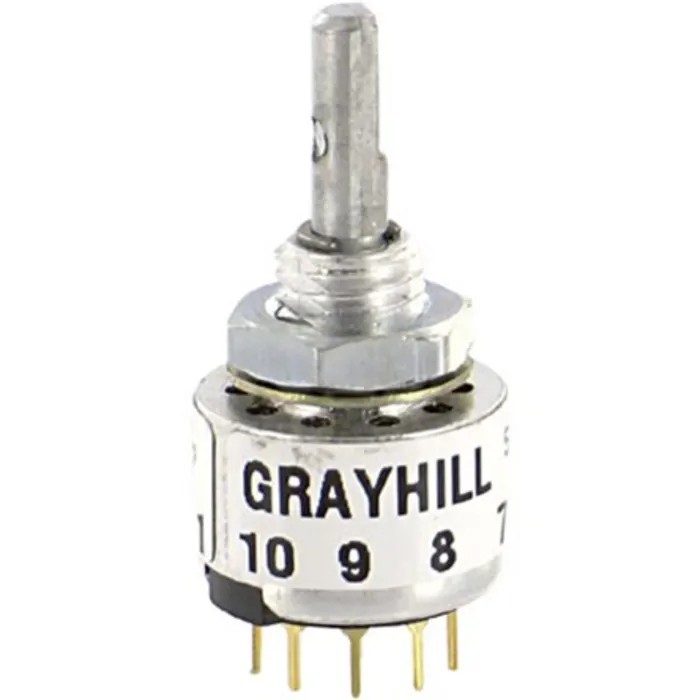

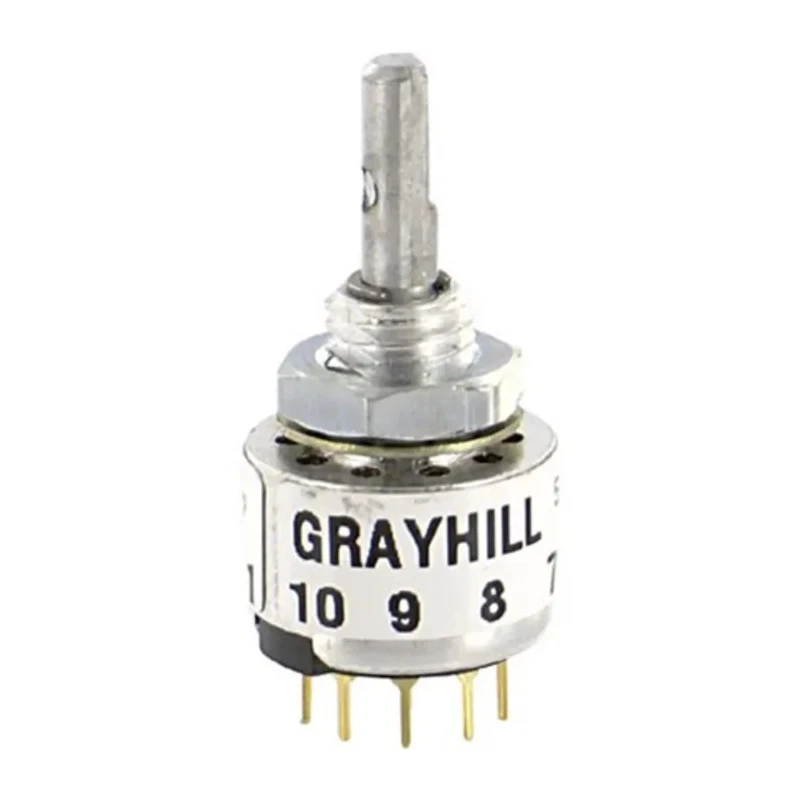

Grayhill 56 Series 10 Position DP10T Single Deck Rotary Switch 200mA PCB Terminal
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 12.7mm |
| Brand | Grayhill |
| Height | 9.53mm |
| Model | DP10T |
| Depth | 12.19mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Housing Material | Tin Zinc Plated, Die Cast Zinc |
| Series | 56 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DP10T |
| Number of Positions | 10 |
| Minimum Operating Temperature | -65°C |
| Terminal type | PCB Terminal |
| Maximum dc Voltage | 30V dc |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Switch Operation | Single Deck Rotary Switches |
| Actuator Colour | Silver |
| Switch Contact Current | 200mA |
| Mechanical Life | 1000Cycles |
| Maximum AC Voltage | 125V ac |
| Angle of Throw | 36 ° |
Key Features
- Constructed with tin zinc plated and die cast zinc housing for durability.
- Designed for PCB mounting with PCB terminals for easy installation.
- Supports maximum 125V AC and 30V DC operating voltages.
- Operates reliably between -65°C and 85°C temperature range.
- Mechanical life rating of 1000 cycles ensures long service.
- Silver actuator color and 36° angle of throw provide precise control.
- Compact dimensions with 12.7mm diameter and width, and 9.53mm height.
- RoHS compliant environmentally friendly design.
Product Description
Grayhill 56DP36-01-1-AJN is a 10-position single deck rotary switch built to offer reliable switching performance for industrial and electronic applications. This switch is part of the Grayhill 56 Series, known for robust construction with a tin zinc plated and die cast zinc housing, enhancing durability and resistance.
With a double pole 10 throw (DP10T) contact configuration, it supports switching currents up to 200mA and can handle a maximum AC voltage of 125V and DC voltage of 30V, making it versatile in low current circuits.
Designed for PCB mounting with PCB terminals, the switch integrates easily into printed circuit boards, optimizing space with a compact form factor featuring dimensions of 12.7mm in diameter and width and 9.53mm height.
Operating temperature range spans from -65°C to +85°C, ensuring reliable function across various environmental conditions.
The switch actuator is silver colored, featuring a 36° angle of throw for accurate position switching. It boasts a mechanical life of 1000 cycles, indicating strong durability under repeated use.
The Grayhill 56DP36-01-1-AJN complies with RoHS standards, supporting environmentally compliant electronic manufacturing. Requires minimal distance behind the panel for installation. Offers shorting and non-shorting contact options.
Available in 1 to 4 pole versions for flexibility. Ideal for industrial automation, electronic equipment, control panels, and instrumentation applications. PCB terminal type enables reliable solder connections for stable circuit integration.
This rotary switch provides precision, reliability, and ease of integration for industrial and electronic design engineers. Explore a wide selection of electronic switches and Rotary Switch components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Grayhill 56 Series DP10T rotary switch supports a maximum AC voltage of 125V and a maximum DC voltage of 30V.
It has a mechanical life rating of 1000 cycles, indicating its durability under repeated use.
This rotary switch has a diameter and width of 12.7mm and a height of 9.53mm.
The operating temperature range for this switch is from -65°C to +85°C, ensuring reliable performance in various environments.
It is designed for PCB mounting with PCB terminals, allowing for easy integration into printed circuit boards.
The switch features a double pole 10 throw (DP10T) contact configuration, making it versatile for low current circuits.
The actuator is silver in color and has a 36° angle of throw for precise control during operation.
This model is RoHS compliant, supporting environmentally friendly electronic manufacturing practices.
The Grayhill DP10T rotary switch can handle switching currents up to 200mA.
It is constructed with tin zinc plated and die cast zinc housing, enhancing its durability and resistance.
Yes, this switch is available in 1 to 4 pole versions, providing flexibility for various applications.
This rotary switch is ideal for industrial automation, electronic equipment, control panels, and instrumentation applications.
