STMicroelectronics Surface Mount 3-Pin TRIAC 600 V Gate Trigger 1 V T3035H-6G

STMicroelectronics T3035H-6G is a surface mount 3-pin TRIAC rated for 600 V with a gate trigger voltage of 1 V, designed specifically for robust and efficient control of AC power in industrial and consumer electronics.

With a rated average on-state current (Irms) of 30 A and a high surge current capability of 284 A, this TRIAC can withstand demanding transient loads, making it suitable for controlling inductive loads and universal motors commonly used in power tools and household appliances.

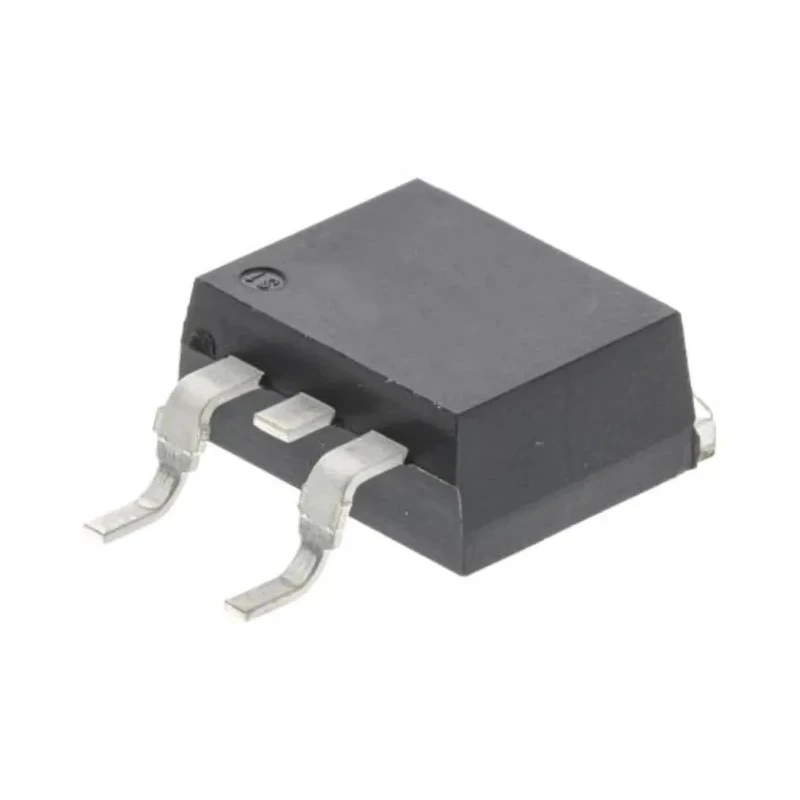

The device features a TO-263 package which facilitates surface mounting and ensures a compact design. The maximum gate trigger current (Igt) of 35 mA and low gate trigger voltage (Vgt) of 1 V provide sensitive and reliable switching performance.

Designed to operate over a wide temperature range from -40°C to 150°C, the T3035H-6G offers high noise immunity and minimal commutation losses, enabled by ST’s Snubberless™ technology, reducing heat dissipation and optimizing heatsink size, ultimately improving system cost and size efficiency.

It incorporates an internal ceramic pad offering voltage insulation rated at 2500 VRMS, providing electrical safety and durability. The device supports very high 3-quadrant commutation at elevated temperature, increasing its reliability in challenging industrial environments.

Rated average on-state current of 30 A for efficient load control. TO-263 surface mount package for compact assembly. Maximum gate trigger current 35 mA ensuring reliable switching. High surge current rating of 284 A for transient tolerance.

Wide operating temperature range from -40°C to 150°C. Low thermal resistance with clip bonding for effective heat dissipation. Internal ceramic pad with 2500 VRMS insulation voltage. Designed based on ST Snubberless™ technology for enhanced performance.

RoHS compliant for environmental safety. Ideal for motor and inductive load control in industrial and consumer products.

This TRIAC is especially suited for industrial, HVAC, manufacturing, and power tool applications requiring efficient and reliable AC load switching. It offers a high-performance solution to replace electromechanical relays with benefits of reduced size, lower power loss, and improved longevity.
