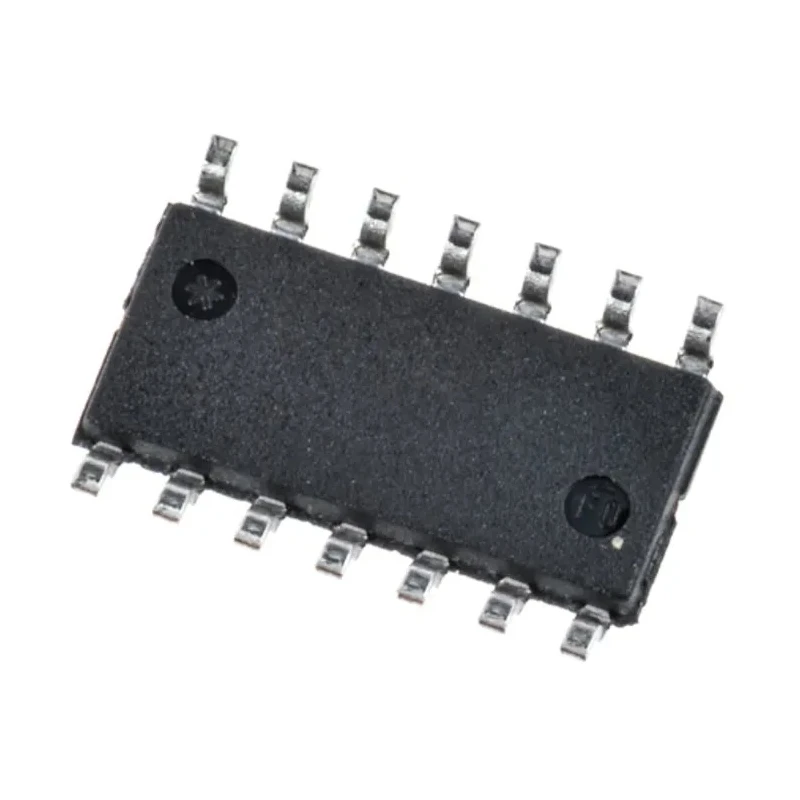

STMicroelectronics Operational Amplifier 12 MHz Gain Bandwidth, 4-Channel, 14-Pin SOIC, 2.7V-10V TS974IDT
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 8.75mm |
| Model | TS974IDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TS974 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 10V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 12MHz |
| Input Bias Current | 1000 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 4V/μs |
| Input Offset Current | 150 nA |
| Low distortion | 0.003% |
| Low noise level | 4 nV/√Hz |
| High dynamic features | 12 MHz, 4 V/μs |
Key Features
- Features a gain bandwidth product of 12 MHz for high dynamic performance.
- Operates with a supply voltage range from 2.7 V to 10 V.
- Includes four amplifier channels in one package.
- Low noise level of 4 nV/√Hz ensures signal integrity.
- Compliance with automotive standard AEC-Q100 ensures reliability.
- Input bias current is low at 1000 nA, promoting efficiency.
- Minimum operating temperature of -40°C and maximum of 125°C for broad environmental tolerance.
- Input offset voltage and current are low at 7 mV and 150 nA respectively.
Product Description
STMicroelectronics TS974IDT is a high-performance operational amplifier featuring a 12 MHz gain bandwidth product and four independent channels housed within a 14-pin SOIC surface-mount package. This operational amplifier operates efficiently within a supply voltage range of 2.7 V to 10 V, making it highly versatile for various electronic circuit designs.
Designed to support portable and battery-powered equipment, the TS974IDT delivers very low noise levels of 4 nV/√Hz and exceptionally low distortion of 0.003%, ensuring high-fidelity amplification in sensitive applications. It supports an output current of up to 100 mA and offers a slew rate of 4 V/μs, contributing to fast transient response and signal integrity.
The device is AEC-Q100 compliant, meeting demanding automotive standards for reliability and robustness in extreme operating temperatures from -40°C to 125°C. The compact SOIC package dimensions (14 pins, length 8.75 mm, width 4 mm, height 1.65 mm) complement space-constrained applications. Its low input bias current (1000 nA) and input offset current (150 nA) further enhance its suitability for precision applications.
This operational amplifier is ideal for use in industrial, automotive, portable instrumentation, communication equipment, and general-purpose amplification tasks. It supports various design requirements where noise, distortion, and power efficiency are critical parameters.
Features a gain bandwidth product of 12 MHz for high dynamic performance. Operates with a supply voltage range from 2.7 V to 10 V. Includes four amplifier channels in one package. Low noise level of 4 nV/√Hz ensures signal integrity.
Compliance with automotive standard AEC-Q100 ensures reliability. Input bias current is low at 1000 nA, promoting efficiency. Minimum operating temperature of -40°C and maximum of 125°C for broad environmental tolerance.
Input offset voltage and current are low at 7 mV and 150 nA respectively. Compact dimensions: 14-pin SOIC package with 8.75 mm length, 4 mm width, and 1.65 mm height. Suitable for portable and battery-powered equipment due to very low noise and distortion.
Explore the Electronics & Electricals category at EnvMart for premium semiconductor components like the TS974IDT Operational Amplifier and enhance your electronic circuit designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS974IDT features a gain bandwidth product of 12 MHz, which contributes to its high dynamic performance.
It operates efficiently within a supply voltage range of 2.7 V to 10 V.
This operational amplifier includes four independent channels in one package.
The TS974IDT can deliver an output current of up to 100 mA.
The SOIC package has dimensions of 8.75 mm in length, 4 mm in width, and a height of 1.65 mm.
It has a minimum operating temperature of -40°C and a maximum of 125°C, allowing for broad environmental tolerance.
The input bias current is low at 1000 nA, promoting efficiency in applications.
The input offset voltage is specified at 7 mV, ensuring precision in amplification.
It features a slew rate of 4 V/μs, contributing to fast transient response.
The TS974IDT complies with the automotive standard AEC-Q100, ensuring reliability in automotive applications.
It has a low noise level of 4 nV/√Hz, which helps maintain signal integrity.
This operational amplifier is suitable for industrial, automotive, portable instrumentation, and communication equipment applications.
