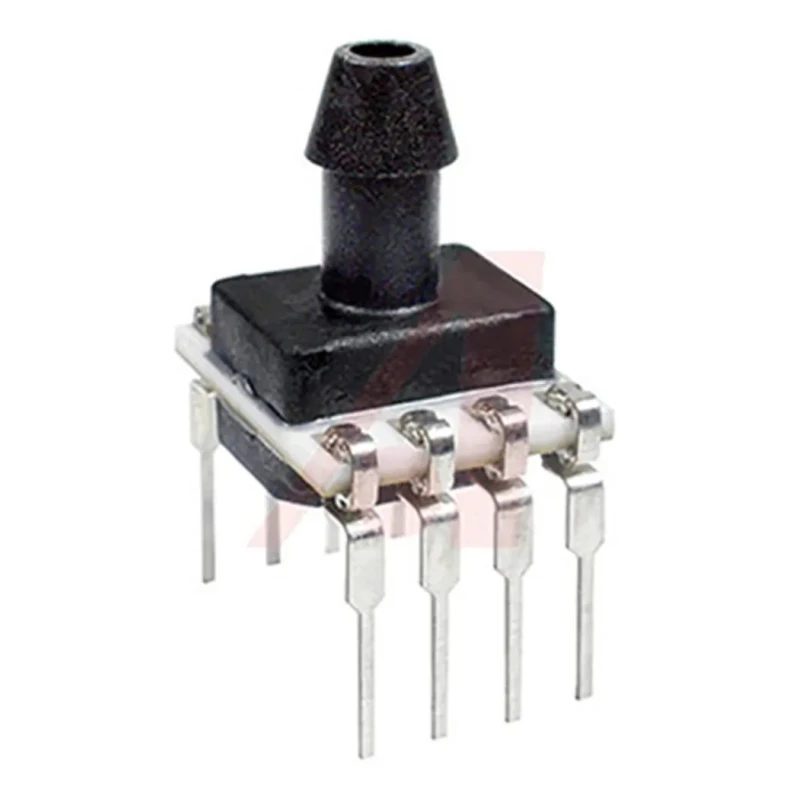

Honeywell Technologies Absolute Pressure Sensor Through Hole 8 PDIP 3.3-5.25 V SSCDANN015PAAA5
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 15 psi |
| Height | 13.75mm |
| Length | 10mm |
| Model | SSCDANN015PAAA5 |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Through Hole |
| Series | SSC |
| Maximum Operating Temperature | 85°C |
| Port Type | Single Axial Barbed |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 3.3V |
| Minimum Output Voltage | 4.75V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 30psi |
Key Features
- This sensor offers a maximum operating pressure of 15 psi.
- Designed with ±0.25% full scale span accuracy for precise pressure measurement.
- Operates within a supply voltage range of 3.3 V to 5.25 V DC.
- Features an 8-pin PDIP package with single axial barbed port type.
- Compatible with operating temperatures from -40°C to 85°C.
- Maximum overload pressure capability is 30 psi ensuring durability.
- Calibrated output values update approximately at 2 kHz for responsive readings.
- Suitable for diverse applications including medical devices and HVAC systems.
Product Description
Honeywell SSCDANN015PAAA5 is an advanced Absolute Pressure Sensor designed in a through-hole 8 PDIP package, delivering high accuracy with ±0.25% full scale span. The device operates from a single power supply within 3.3 to 5.25 V DC and provides precise pressure sensing within the range of 0 to 15 psi, with a maximum overload pressure of 30 psi.
Manufactured in China, this sensor integrates Honeywell TruStability® SSC Series technology, leveraging piezo-resistive silicon ceramic construction. Its onboard ASIC calibrates and compensates for offset, sensitivity, temperature, and non-linearity during fabrication, ensuring consistent performance.
The sensor's compact dimensions (13.75 mm height, 10 mm length) fit versatile industrial and laboratory setups. It supports continuous pressure updates at about 2 kHz frequency, yielding real-time readings.
Typical use cases span medical equipment such as ventilators and nebulizers, industrial HVAC systems including variable air volume controls and filter detection, and other applications requiring accurate absolute pressure measurement.
This sensor offers a maximum operating pressure of 15 psi. Designed with ±0.25% full scale span accuracy for precise pressure measurement. Operates within a supply voltage range of 3.3 V to 5.25 V DC. Features an 8-pin PDIP package with single axial barbed port type.
Compatible with operating temperatures from -40°C to 85°C. Maximum overload pressure capability is 30 psi ensuring durability. Calibrated output values update approximately at 2 kHz for responsive readings. Suitable for medical, industrial, and HVAC applications.
Explore a wide range of Honeywell pressure sensors at EnvMart for your industrial and laboratory sensing needs.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 15 psi.
This model features an accuracy of ±0.25% full scale span for precise pressure measurement.
It operates within a supply voltage range of 3.3 V to 5.25 V DC.
The sensor has a height of 13.75 mm and a length of 10 mm.
The maximum overload pressure capability of this sensor is 30 psi.
It features an 8-pin PDIP package with a single axial barbed port type.
The operating temperature range is from -40°C to 85°C.
Calibrated output values update approximately at 2 kHz for responsive readings.
It is suitable for applications including medical devices and HVAC systems.
This model is an absolute pressure sensor.
The sensor is manufactured in China.
The minimum operating pressure is 0 psi.
