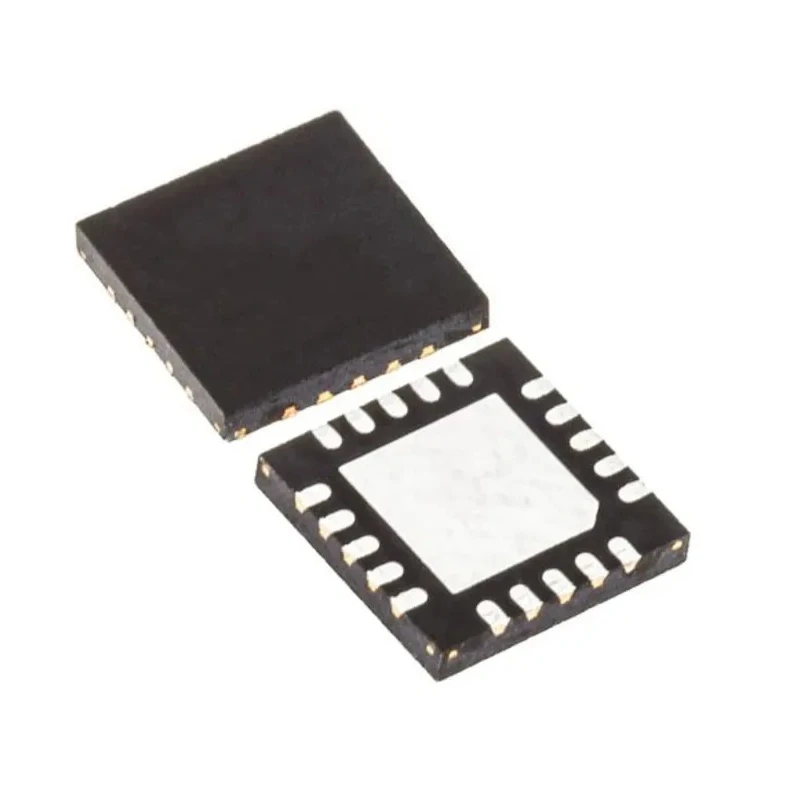

Maxim Integrated Line Transceiver CMOS/TTL Inverting 20-Pin TQFN MAX3225EETP+

Maxim Integrated MAX3225EETP+ line transceiver CMOS/TTL inverting 20-pin TQFN is engineered for efficient data communication in space-constrained applications. Integrating driver and receiver functionality, this line transceiver provides reliable CMOS and TTL logic compatibility while operating within a voltage range of 3V to 5.5V. The device's inverting polarity and low supply current of 1μA make it ideal for battery-powered and automotive applications where power saving is critical.

The compact 5.1mm by 5.1mm TQFN package with a height of 800μm enables easy surface mounting on printed circuit boards, contributing to miniaturized electronic solutions. The device supports a maximum output current of -1mA (high level) and 1.6mA (low level), offering robust data transmission capabilities with a maximum propagation delay of 0.15 microseconds.

Operating reliably over the industrial temperature range of -40°C to 85°C, the MAX3225EETP+ supports applications in automotive systems, cellular phones, handheld devices, notebooks, subnotebooks, palmtop computers, and peripherals such as printers. The integrated ESD protection features found in related series further assure robust performance in challenging environments.

This line transceiver IC belongs to the MAX3225E series, known for excellent ESD protection and low-power operation, making it suitable for sensitive electronic components and interfaces involving CMOS and TTL logic types. The surface mount TQFN package facilitates compact design implementations in modern electronic device manufacturing.

CMOS logic family ensures low power consumption and compatibility. Inverting line transceiver with CMOS/TTL output types. 20-pin TQFN package ideal for space-constrained layouts. Operates with supply voltage range between 3V and 5.5V.

Supports a maximum propagation delay of 0.15 microseconds for fast signal transmission. Wide operating temperature range from -40°C to 85°C suitable for industrial environments. Low supply current of 1 microampere helps in battery-powered equipment.

Designed for use in automotive, cellular phones, notebook computers, and peripherals. Surface mount type ensures easy PCB assembly and reliability. Pin count of 20 supports complex interfacing requirements. Explore more products in the Line Transceiver IC category at EnvMart for robust semiconductor solutions.
