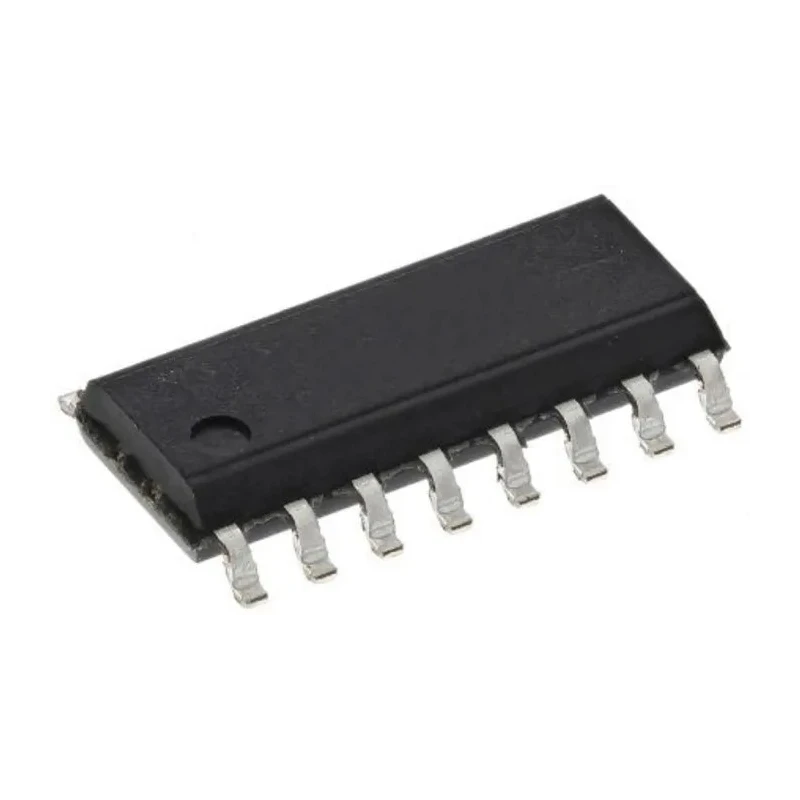

Maxim Integrated 4-Channel Line Transceiver BiCMOS Inverting 16-Pin QSOP MAX3095EEE+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.75mm |
| Length | 4.98mm |
| Model | MAX3095EEE+ |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | BiCMOS |
| Series | MAX3095 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | QSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 7V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Driver, Driver, Converter |
| Minimum Supply Voltage | -0.3V |
| Maximum High Level Output Current | 75mA |
| Maximum Propagation Delay Time @ CL | 98ns |
| Supply Current | 3.5mA |
| Maximum Low Level Output Current | 7mA |
Key Features
- The device operates with CMOS/TTL logic family compatible inputs.
- It provides differential input and BiCMOS output types.
- Designed for surface mount with a 16-pin QSOP package type for compact PCB layouts.
- Suitable for single +5V supply operation with supply current of 3.5mA.
- Supports data rates up to 10 Mbps with a maximum propagation delay of 98 ns.
- Operates reliably from -40°C to 85°C temperature range for industrial environments.
- Includes robust ESD protection standards with ±15kV air-gap discharge.
- Pin-compatible upgrades available for easier system design and maintenance.
Product Description
Maxim Integrated's MAX3095EEE+ model is a high-performance 4-channel line transceiver with BiCMOS technology, featuring inverting polarity and packaged in a compact 16-pin QSOP footprint. It operates at single +5V supply with low supply current of 3.5mA and supports data transmission speeds up to 10 Mbps, making it ideal for telecommunications and data communication interfaces.
This line transceiver features CMOS/TTL logic input compatibility and differential input types, offering efficient signal conversion and driving capabilities. Its robust design supports industrial temperature ranges from -40°C to 85°C, ensuring reliability in harsh environments.
The MAX3095EEE+ includes comprehensive ESD protection rated for ±15kV air-gap and human body model discharges, improving durability and system robustness. Its pin-compatible upgrades facilitate easy replacements and system upgrades with minimal redesign efforts.
Typical applications for this IC include level translation, bus transceivers, and receivers for ESD-sensitive environments in telecommunications and industrial control systems. The device has a low-power shutdown mode with only 1nA current draw.
Guaranteed propagation-delay tolerance between ICs is ±8 ns. Physical dimensions include a height of 1.75 mm, length of 4.98 mm, and width of 6.2 mm, which suit compact surface-mount PCB layouts. The pin count is 16 with QSOP surface-mount package type.
The product does not carry automotive standards approval but is suited for a wide range of industrial applications.
This product is supplied new, with a country of origin as India. For engineers and designers seeking reliable, compact 4-channel line transceivers, the MAX3095EEE+ offers a balance of speed, low power, and robust industrial features.
Explore more in our Semiconductor category or search by Maxim Integrated products for compatible line interface ICs and transceivers.
Explore more products in our Line Transceiver IC category.
