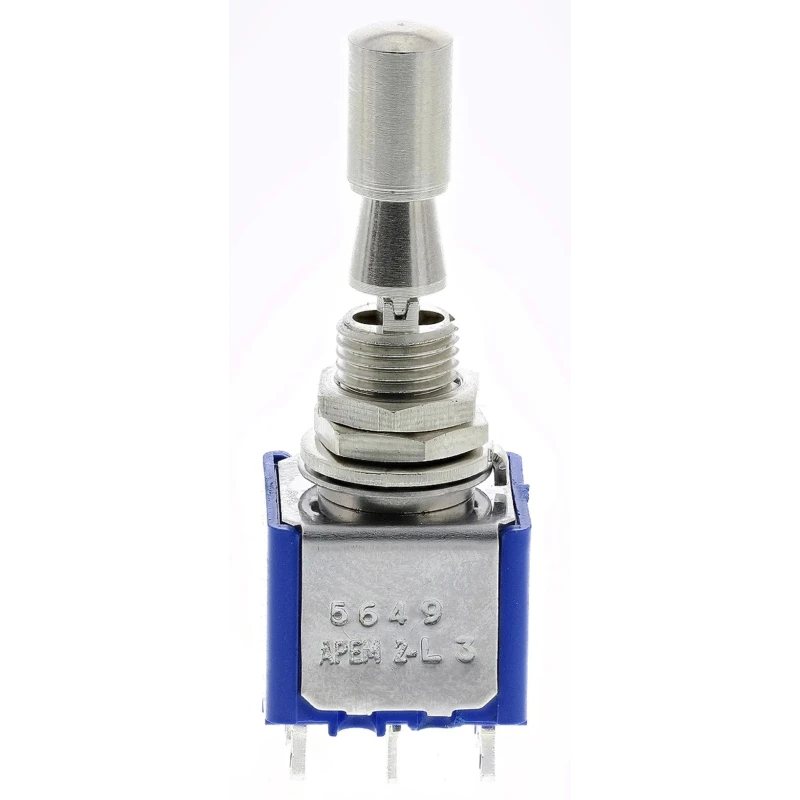

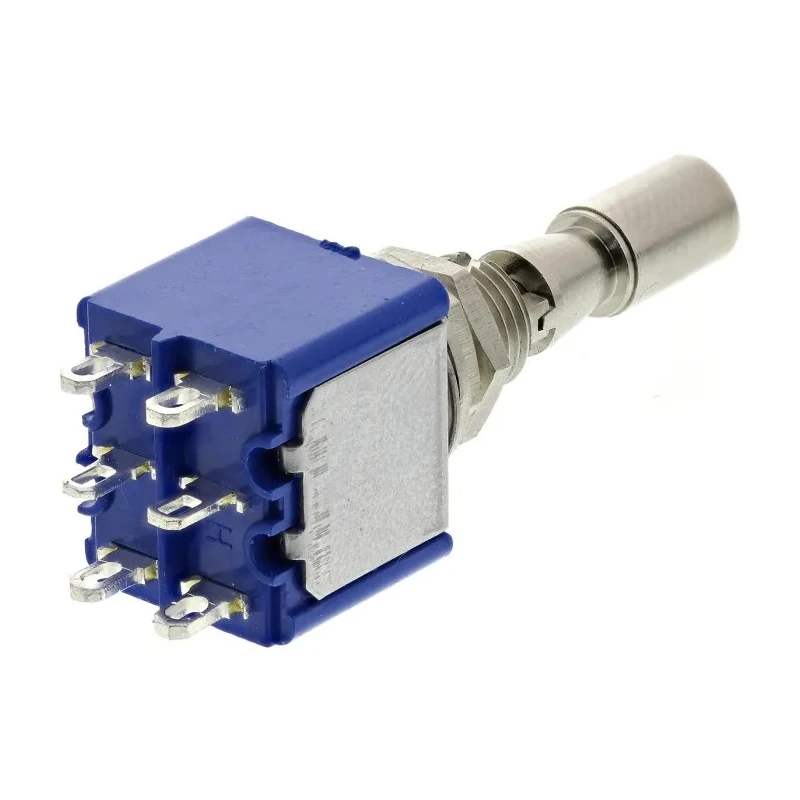

APEM Toggle Switch Panel Mount On-Off-On DPDT 30 V dc 250 V ac Solder Terminal 5649A.3V

APEM 5649A.3V toggle switch is a high-quality panel mount switch designed for industrial and commercial electrical applications. With a double-pole double-throw (DPDT) contact configuration and On-Off-On switch operation, it allows versatile control of electrical circuits with two active positions and a central off state.

The switch is rated for 30 V dc and 250 V ac contact voltages, supporting a maximum contact current of 4 amperes. It features solder terminals for secure and stable wiring connections, making it suitable for panel assemblies requiring robust mechanical and electrical properties.

Constructed with a nickel-plated brass actuator, this toggle switch offers enhanced corrosion resistance and durability, ensuring long service life even in demanding environments. The device operates reliably within a temperature range from -40°C to 85°C, suitable for varied ambient conditions.

Its compact dimensions - 34.2 mm height, 12 mm width, and 13.2 mm length - facilitate easy installation into panels with a 6.5 mm cutout, optimizing space without compromising performance. The switch’s mechanical life is rated for 100,000 operations, making it ideal for intensive use in systems requiring frequent switching cycles.

APEM 5649A.3V complies with multiple international standards and approvals, including CECC, CSA, RoHS, and UL certifications, assuring quality, safety, and environmental compliance.

This toggle switch is an excellent choice for electrical control panels, automation systems, instrumentation, and other industrial or commercial applications requiring precise, reliable manual switching.

DPDT double-pole double-throw switch configuration for versatile circuit control. On-Off-On operation provides two active states with a center off position. Solder terminal type ensures durable electrical connections. Nickel-plated brass actuator offers corrosion resistance and durability.

Wide operating temperature range from -40°C to 85°C. Compact size with 6.5 mm panel cutout facilitates easy mounting. Complies with CECC, CSA, RoHS, and UL standards for safety and quality. Rated for 4A contact current at 30 V dc and 250 V ac.

Mechanical life expectancy up to 100,000 switch operations. Explore further APEM Toggle Switches and related electrical components in the Electronics & Electricals category at EnvMart for your industrial and automation needs.
