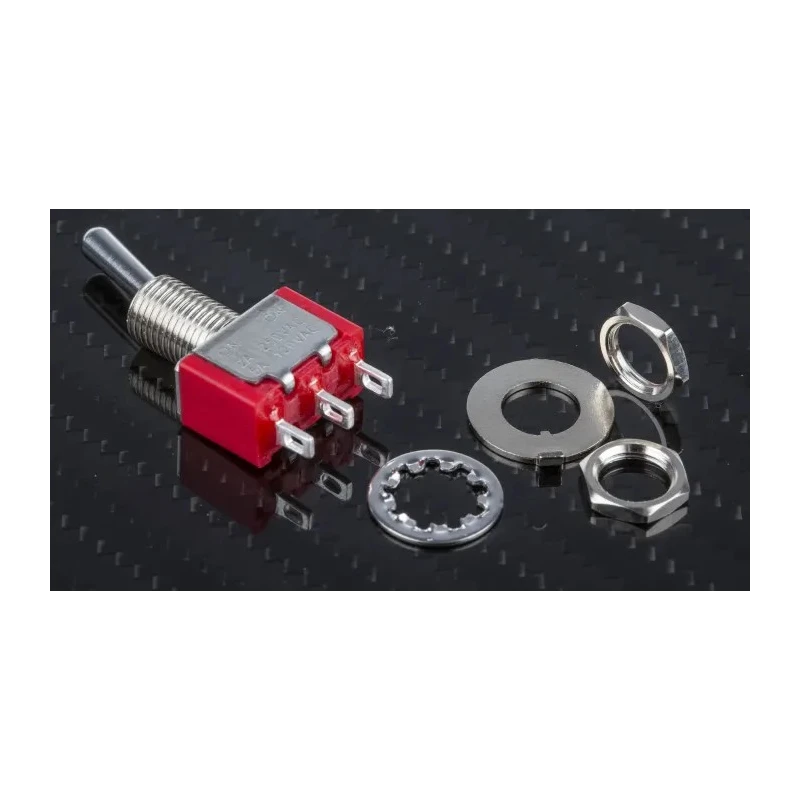

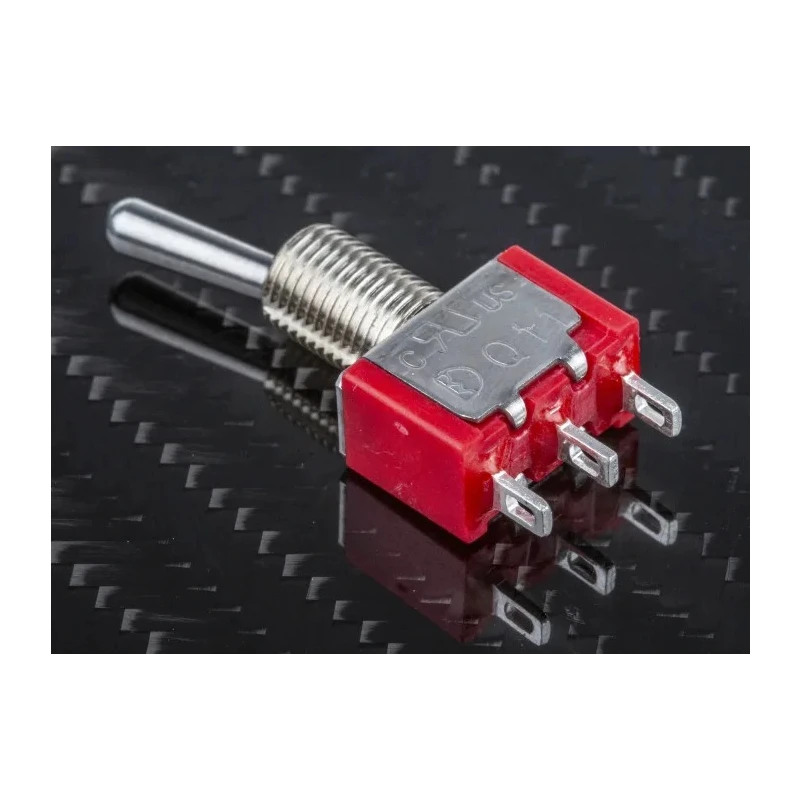

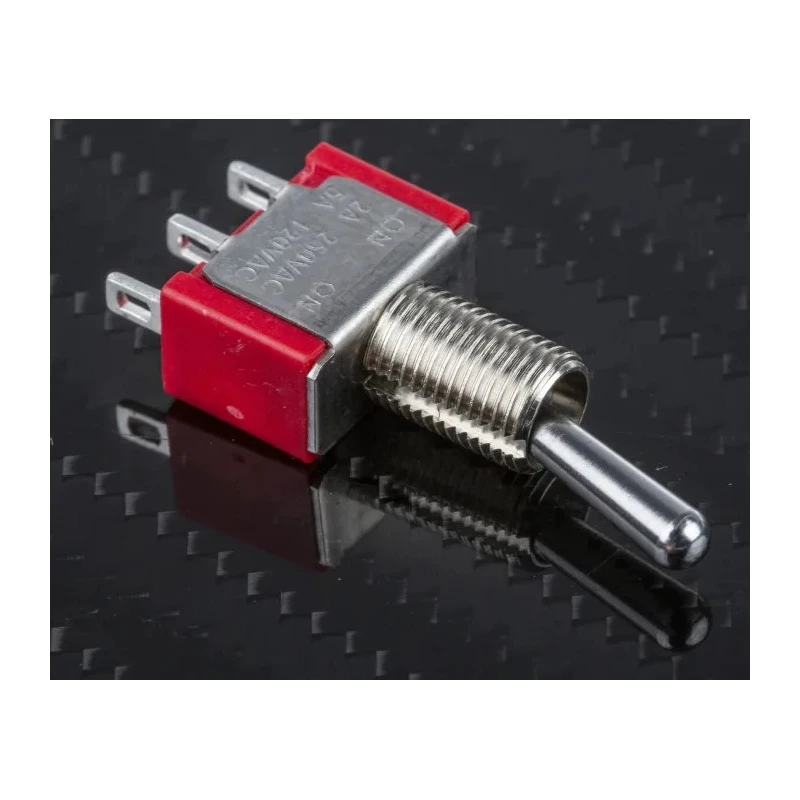

RS PRO Toggle Switch Panel Mount On-On SPDT Solder Terminal 28 V dc 112 V ac 734-7062

RS PRO 734-7062 Toggle Switch is a high-quality panel mount On-On SPDT electrical switch designed for versatile industrial and automation applications. Rated for 28 V dc and 112 V ac, this latching switch allows the user to energize two different circuits from a single source efficiently.

Constructed with a chromium-plated brass actuator and silver-plated brass contacts, this toggle switch combines mechanical durability with excellent electrical conductivity. The solder terminal type enables solid and secure electrical connections, suitable for panel-mounted installations.

With a low contact resistance of 10 milliohms and a contact current rating of 2 amperes, the switch ensures efficient power transfer and reliable switching. Its mechanical life is rated for 40,000 cycles, supporting long-term usage in demanding environments.

The switch supports a panel cutout size of 6.35 mm and has an actuator length of 10.41 mm, designed for easy and ergonomic operation. The operating temperature range of -30°C to +85°C gives this product robust performance in extreme thermal conditions.

This RS PRO toggle switch complies with industry standards CE, UL, RoHS, and CSA, ensuring safety and environmental compliance. Its lead-free manufacturing and RoHS certification underline its suitability for modern environmentally conscious applications.

This SPDT toggle switch is miniature and latching, perfect for precise electrical control. Panel mount with solder terminals allows easy installation in control panels. Low contact resistance of 10 mΩ ensures minimal power loss.

Durable chromium-plated brass actuator and silver-plated contacts for extended life. Wide operating temperature range from -30°C to +85°C for versatile environments. Certified to CE, UL, RoHS, and CSA standards for safety and compliance.

Mechanical life of 40,000 cycles appoints high reliability in usage. Rated for 2A contact current for dependable electrical switching. Panel cutout size and actuator dimensions designed for easy integration. Lead-free design supports eco-friendly applications.

This toggle switch is ideally suited for industrial automation, electrical control panels, manufacturing systems, HVAC controls, and other applications requiring reliable manual circuit control. RS PRO products are trusted worldwide for their rigorous testing and high quality, making this toggle switch a dependable component in your electrical assemblies.
