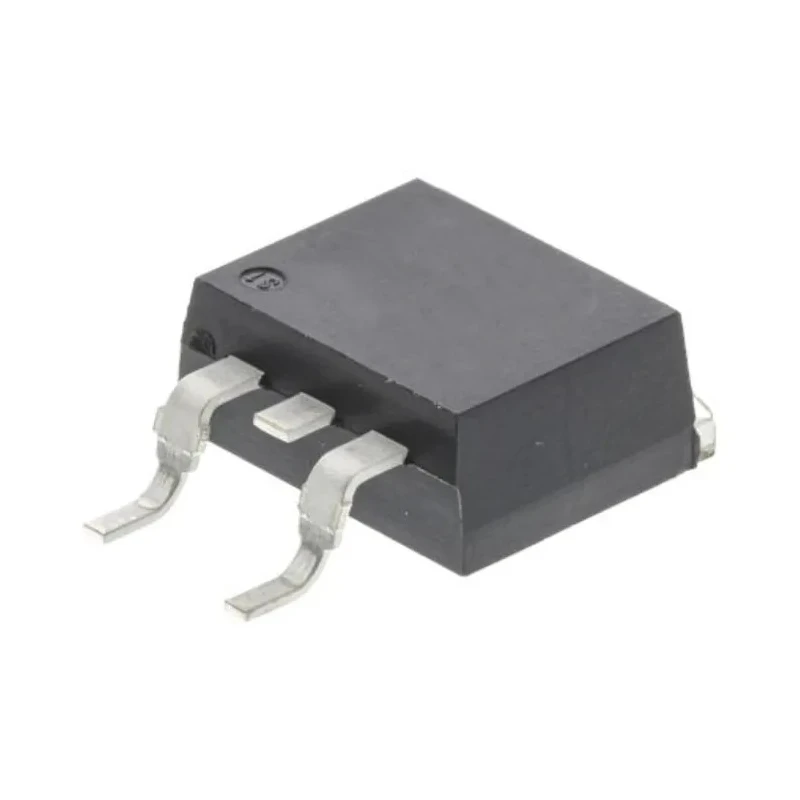

STMicroelectronics Surface Mount 3-Pin TRIAC 600 V Gate Trigger 1 V T1635H-6G-TR

STMicroelectronics T1635H-6G-TR is a surface mount 3-pin TRIAC designed for medium current AC power switching applications requiring reliable operation up to 16 A with a peak repetitive voltage of 600 V. Packaged in a TO-263 format, this TRIAC integrates a gate trigger voltage of 1 V and a gate trigger current of 50 mA, allowing for precise triggering in power control circuits.

Its surge current rating of 168 A makes it robust during transient conditions, while the maximum holding current of 35 mA provides stable latching characteristics for motor and heater control applications. The TRIAC safely operates in temperatures ranging from -40°C up to 150°C, suitable for demanding industrial and household appliance environments.

The device benefits from low thermal resistance due to clip bonding technology and an internal ceramic pad providing electrical insulation rated at 2500 V rms, which enhances device reliability and reduces heatsink requirements. This allows for a more compact design and cost savings in application circuitry.

The T1635H-6G-TR TRIAC is especially suited to universal motor controls found in vacuum cleaners and washing machines, delivering superior high-density switching performance with very high three-quadrant commutation capability.

The compact dimensions of 10.28 mm length and 4.37 mm height facilitate easy integration into PCB layouts. The product meets RoHS environmental directives, ensuring compliance with international regulations.

Surface mount TO-263 package for ease of assembly. Rated average on-state current 16 A for reliable AC load switching. Repetitive peak reverse voltage 600 V to withstand mains voltage spikes. Maximum operating temperature up to 150°C junction temperature.

Designed for high power density and universal motor control applications. Low thermal resistance design minimizes heatsink needs. RoHS compliant for environmental safety.

This TRIAC is ideal for industrial, household appliance, HVAC, and manufacturing applications requiring efficient and reliable AC load switching solutions. Browse the Electronics & Electricals Semiconductor category for additional STMicroelectronics TRIAC models and related components on EnvMart.
