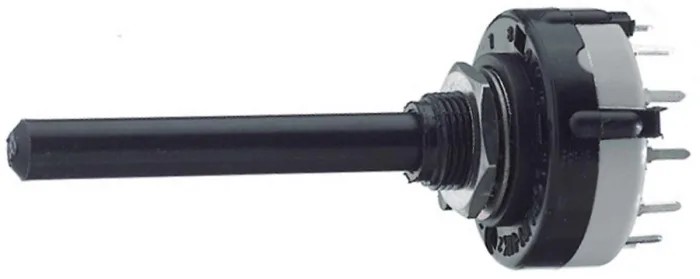

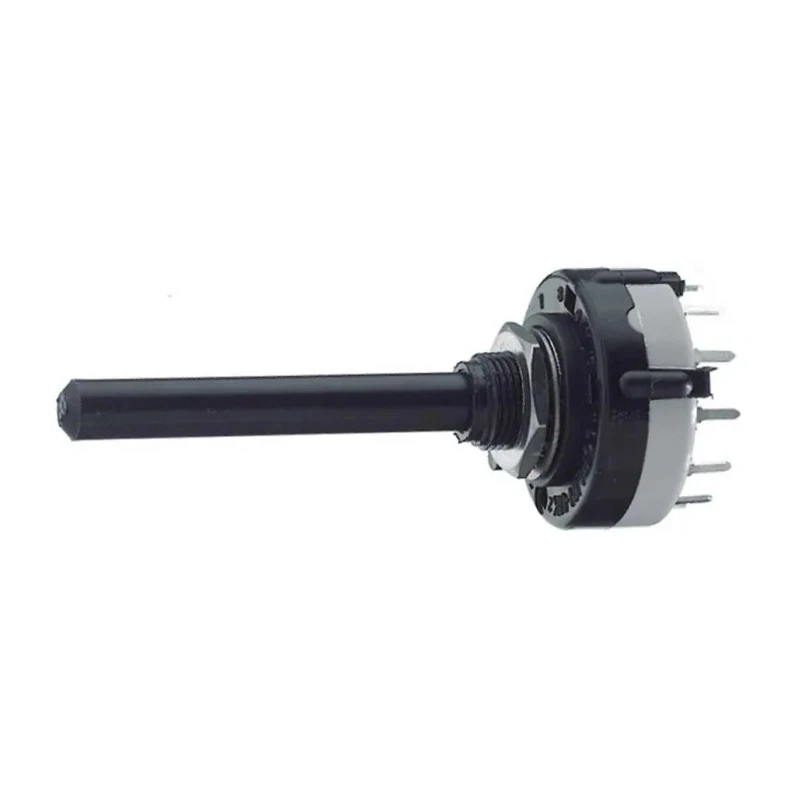

Lorlin 12 Position SPST Rotary Switch, 150mA Current Rating, Polyamide 66 Housing, Solder Terminals CK1054

Lorlin CK1054 12 Position SPST Rotary Switch is a precision-engineered electrical component ideal for various industrial, automation, and control applications. This rotary switch features a single-pole single-throw (SPST) contact configuration rated at 150mA, supporting a maximum alternating current voltage of 250V and direct current voltage up to 24V.

The switch is housed in robust polyamide 66 material, ensuring durability and resistance to environmental stress. It is designed for panel mounting with solder terminal connections, providing secure and reliable electrical contacts. The compact rotary switch measures 27.5mm in diameter and 59.1mm in height, making it suitable for use in restricted panel spaces.

Operating within a temperature range from -30°C to 85°C, the switch maintains consistent electrical performance under varied environmental conditions. Its mechanical endurance is rated at 10,000 cycles, offering dependable operational longevity. The 90° angle of throw provides precise control for switching positions, and the 12 available positions allow versatile circuit configuration.

The spindle length is 1.5 inches with a diameter of 0.25 inch, including a 30mm flat designed for ergonomic mounting of grub screws and knobs. The bush measures 8mm in length with a 9.52x32TPI thread, facilitating secure and accurate installation.

The Lorlin CK1054 rotary switch complies with RoHS environmental standards and has a proof voltage of 1500Vac, ensuring safe operation. Manufactured in the United Kingdom, it is suitable for use in electrical, automation, HVAC, and manufacturing industries where compact and reliable switching solutions are required.

Features polyamide 66 housing for durable performance. Equipped with solder terminals for secure connectivity. Accommodates up to 12 switching positions with single-pole single-throw configuration. Supports maximum AC voltage of 250V and DC voltage of 24V.

Operates reliably within temperature range of -30°C to 85°C. Compact dimensions with 27.5mm diameter and 59.1mm height for panel mounting. Mechanical life rated at 10,000 cycles ensuring long service life. Offers a 90° angle of throw, suitable for precise switching.

Compliant with RoHS standards for environmental safety. Manufactured in the United Kingdom with high-quality standards.

This rotary switch is an essential component for industrial, laboratory, and commercial electrical systems requiring precise and reliable switching action. Explore more Lorlin Rotary Switches and components on EnvMart for comprehensive switching solutions.
