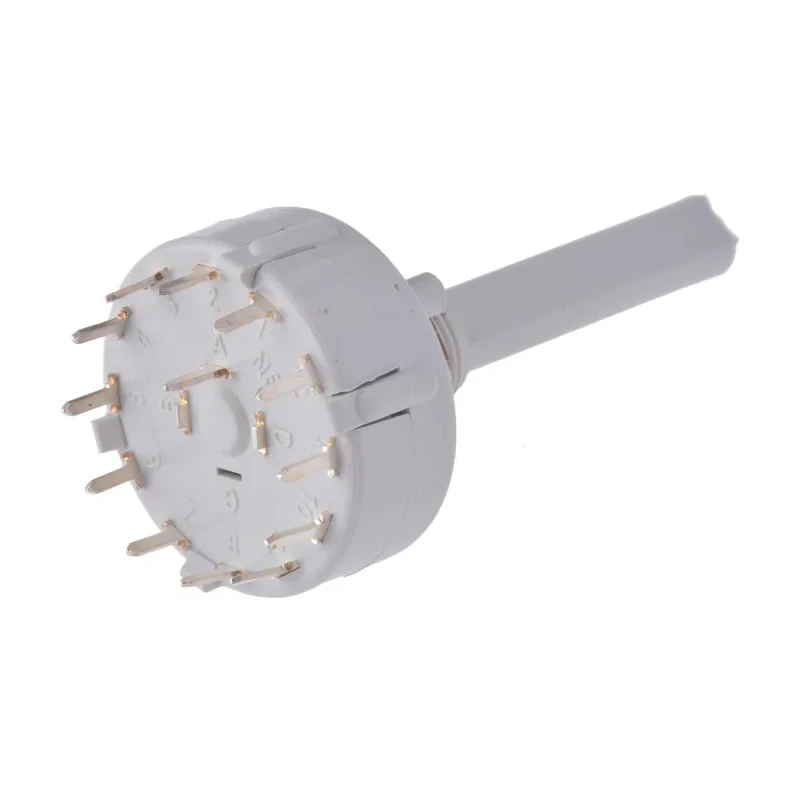

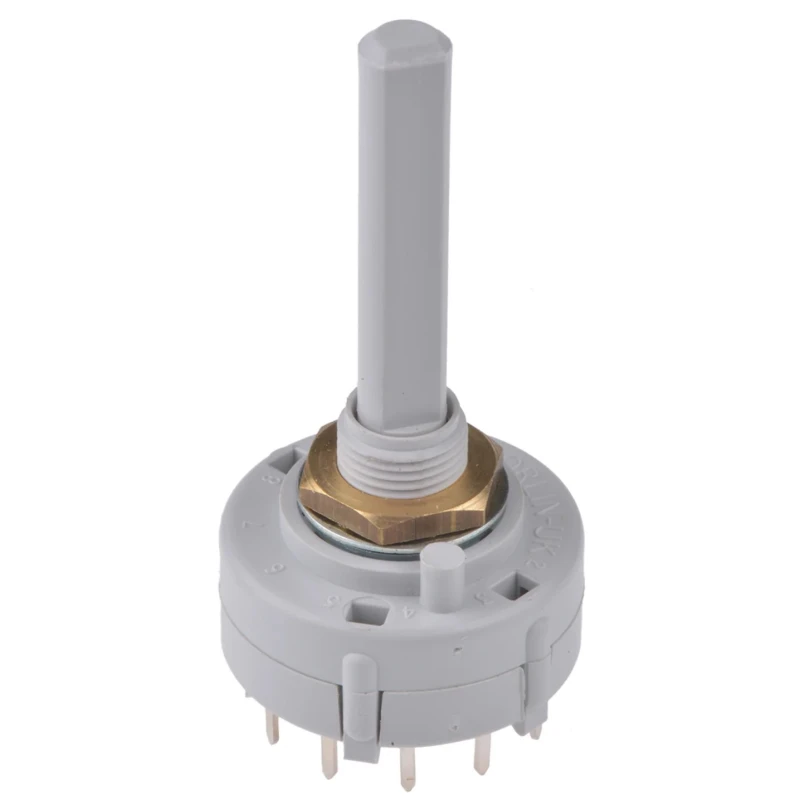

Lorlin 12 Position SPST Rotary Switch, 150mA, Solder Terminals, Panel Mount, Polyamide 66 Housing CK1044
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread |
| Height | 59.1mm |
| Model | CK1044 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide 66 |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Number of Positions | 12 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
Key Features
- Features 12 switch positions with a single pole single throw (SPST) configuration.
- Rated for a switch contact current of 150mA at 250V AC and 24V DC.
- Constructed with durable polyamide 66 housing material ensuring robustness.
- Compact size with 27.5mm diameter and 59.1mm height for panel mounting.
- Operates reliably between -30°C and 85°C and has a mechanical life of 10,000 cycles.
- Solder terminal type connections providing secure electrical contact.
- 90° angle of throw with MBB and BBM contact options.
- Proof voltage rating of 1500V AC for enhanced safety.
Product Description
Lorlin CK1044 12 Position SPST Rotary Switch is an industrial-grade rotary switch designed for diverse electrical and automation control applications. It features a robust polyamide 66 housing combined with a panel mount design and solder terminals to provide secure and stable electrical connections.
The switch offers a single pole single throw (SPST) contact configuration with 12 selectable positions, enabling precise control over circuit routing. Rated for a switch contact current of 150mA at a maximum AC voltage of 250V and DC voltage up to 24V, it supports low power switching in various industrial and commercial contexts.
The device is engineered to endure harsh operating conditions ranging from -30°C to +85°C and a mechanical life cycle of 10,000 operations, ensuring reliability and durability in demanding environments. Its compact dimensions, including a 27.5mm diameter body and 59.1mm height, facilitate easy integration into panel assemblies.
The CK1044 model includes a 90-degree angle of throw and offers shorting make-before-break and non-shorting break-before-make contact options for versatile switching modes. The switch withstands a proof voltage of 1500V AC, providing enhanced safety and insulation capabilities.
Manufactured in the United Kingdom, the rotary switch complies with RoHS directives confirming environmental and safety standards. It is ideal for use in industrial machinery control panels, automation systems, electronics equipment, and other technical applications requiring reliable rotary switching functionality.
Features 12 switch positions with a single pole single throw (SPST) configuration. Rated for a switch contact current of 150mA at 250V AC and 24V DC. Constructed with durable polyamide 66 housing material ensuring robustness.
Compact size with 27.5mm diameter and 59.1mm height for panel mounting. Operates reliably between -30°C and 85°C and has a mechanical life of 10,000 cycles. Solder terminal type connections providing secure electrical contact.
90° angle of throw with MBB and BBM contact options. Proof voltage rating of 1500V AC for enhanced safety. Meets RoHS compliance and is manufactured in the United Kingdom. Explore EnvMart for a comprehensive range of Rotary Switches and related electrical components designed for industrial, automation, and commercial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rotary switch has a maximum AC voltage rating of 250V and a maximum DC voltage rating of 24V.
This model has a mechanical life of 10,000 cycles, ensuring reliable operation over time.
It operates reliably between -30°C and 85°C, making it suitable for various environmental conditions.
The switch features solder terminal type connections, providing secure electrical contact.
This rotary switch has 12 selectable positions, allowing for versatile control of circuit routing.
It has a diameter of 27.5mm and a height of 59.1mm, designed for panel mounting.
The housing is constructed from durable polyamide 66, ensuring robustness in various applications.
The switch operates with a 90° angle of throw, which is suitable for its contact configuration.
Yes, it complies with RoHS directives, confirming adherence to environmental and safety standards.
The contact configuration is single pole single throw (SPST), suitable for various switching applications.
This rotary switch is manufactured in the United Kingdom.
It is suitable for use in industrial machinery control panels, automation systems, and electronics equipment.
