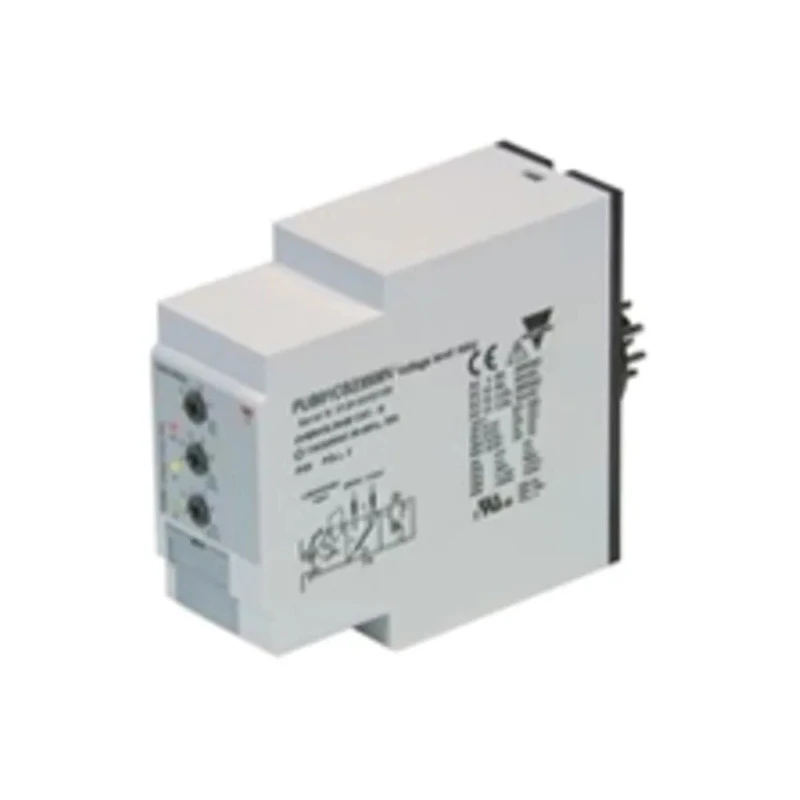

Carlo Gavazzi Multifunction Timer Relay 4-Contact DPDT 24 V dc/24 V ac, 240 V ac, 0.1 s to 100 h PMB01DM24

Carlo Gavazzi PMB01DM24 multifunction timer relay is a compact and precise electromechanical device designed for varied industrial automation and control applications. It provides a wide range of timing functions with a time setting flexibility from 0.1 seconds up to 100 hours, making it suitable for complex process control tasks.

This timer relay features a 4-contact double pole double throw (DPDT) contact configuration with a relay output current capability of 8 amps. The device supports a broad supply voltage range of 24 V DC, 24 V AC, and up to 240 V AC, enhancing its adaptability to different systems.

Time ranges are selectable via a rotary knob with 7 distinct ranges to accommodate precise time delay functions such as delay on, delay on release, double interval, interval, and other multifunctional modes. It includes both manual and automatic start options for timing control and provides LED indications to display relay status and power supply condition.

The relay is designed for plug-in mounting and enclosed in an IP20 rated case, suitable for typical industrial and factory floor environments with operating temperatures from -20°C to 60°C. Construction is robust and reliable, ensuring repeatability with less than or equal to 0.2% variation.

Typical applications of this timer relay include textiles, chemical processing, mining operations, irrigation control, raw material handling, food and beverage processing, and general industrial process control environments.

Compact electromechanical timer with multifunctional operations and high precision. 7 selectable time ranges covering 0.1 seconds to 100 hours for versatile timing. 4-contact DPDT switch configuration rated at 8A relay contact current.

Knob-adjustable time setting with manual and automatic start modes. Wide supply voltage range from 24 V DC to 240 V AC with LED status indication. Plug-in terminal type for straightforward installation and replacement. IP20 enclosure rating with operating temperature from -20°C to 60°C.

Ideal for industrial automation, process control, mining, irrigation, and chemical industries. Explore more Timer Relays and related automation components in the Electronics & Electricals category at EnvMart for your industrial and control system needs.
