TE Connectivity mSATA/mini PCI-E Series Right Angle Edge Connector Female, Surface Mount, 52-Contacts, 0.8 mm 2041119-1

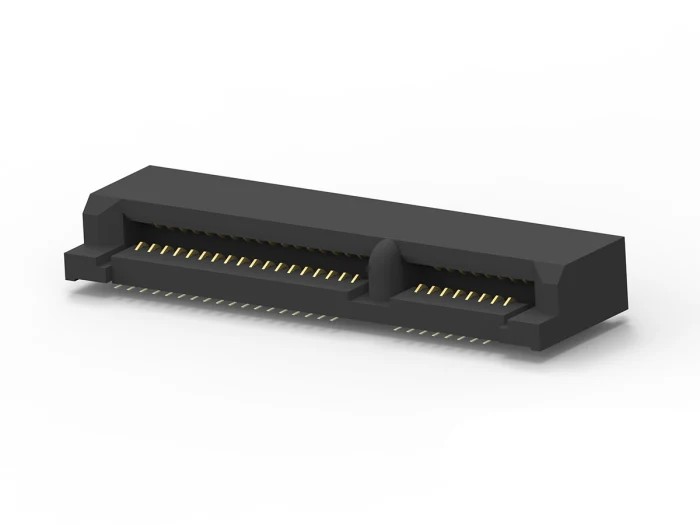

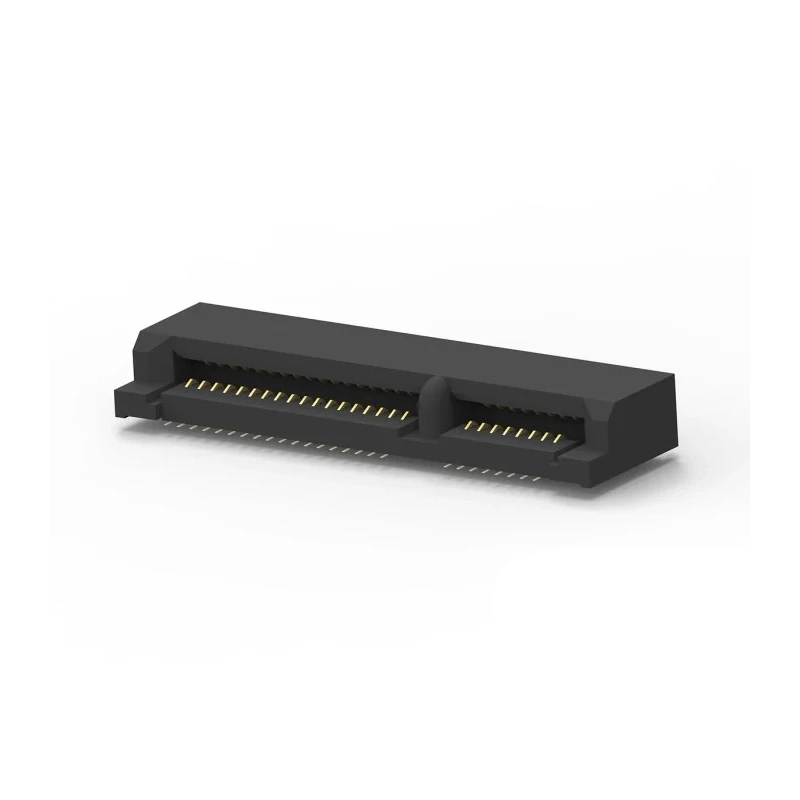

TE Connectivity 2041119-1 mSATA/mini PCI-E Series Right Angle Edge Connector Female, Surface Mount, 52-Contacts, 0.8 mm Pitch, 2 Row is designed to meet interconnect requirements for expansion cards used in various electronic platforms. Its right angle, surface mount design allows for efficient PCB assembly in compact electronic devices such as notebook PCs, desktop PCs, and wireless communication equipment.

The connector has 52 gold and nickel-plated copper alloy contacts arranged in 2 rows with a 0.8 mm pitch, offering reliable electrical performance at a current rating of 500mA and operating voltage of 1.5V. The thermoplastic housing ensures durability while maintaining a lightweight form factor. It features solder termination for secure and stable mounting on printed circuit boards.

Operating reliably in temperatures ranging from -55°C to 85°C, it withstands challenging industrial and commercial environments. The product incorporates a keying mechanism to prevent incorrect mating and supports mechanical robustness by withstanding 50G shock testing. TE Connectivity’s mSATA/mini PCI-E Series addresses demanding applications in industrial, laboratory, construction, and manufacturing sectors requiring compact, high-performance edge connectors.

The connector features a right angle orientation for optimal PCB layout. It has 52 contacts arranged in 2 rows with a 0.8 mm pitch ensuring precise connection. Constructed with a thermoplastic housing and copper alloy contacts plated with gold and nickel for durability.

Rated for a current of 500mA and voltage of 1.5V, suitable for low power applications. Designed for surface mounting, supporting solder termination type for secure installation. Operating temperature range from -55°C to 85°C makes it suitable for harsh environments.

The keying feature prevents mis-mating and ensures correct connector orientation. Applications include notebook PCs, desktop PCs, and wireless communication equipment. The connector series supports expansion cards across server, desktop, consumer devices, and notebook platforms.

Capable of withstanding 50G mechanical shock testing for robust performance.

Set contains one edge connector optimized for secure and reliable electronic expansions. Explore more TE Connectivity components and Edge Connectors for comprehensive industrial applications at EnvMart.
