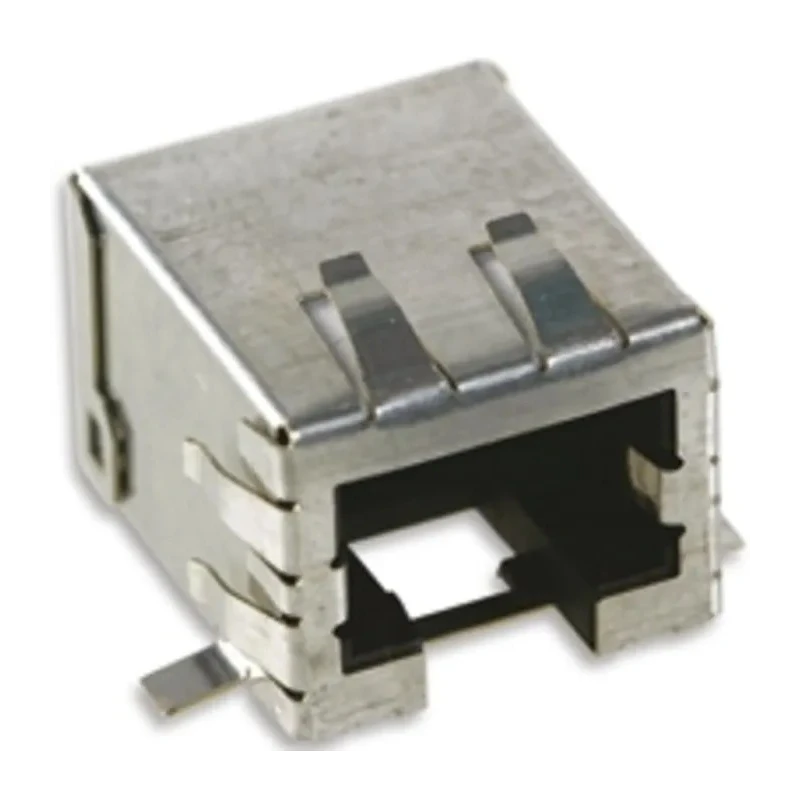

Molex 85543 Series Cat5e Shielded RJ45 Female Surface Mount Right Angle Connector 1 Port 8 Way RJ45

Molex RJ45 Connector RJ45 model from the 85543 Series is a high-performance Cat5e shielded female modular jack made for surface mount applications. This right angle orientation connector supports 1 port and 8 ways, suitable for Ethernet and LAN networking implementations requiring robust interference protection.

The connector features phosphor bronze contacts with gold over nickel plating ensuring long-lasting reliability and optimal electrical conductivity. Its shielded design offers enhanced EMI and RFI shielding performance, critical for maintaining signal integrity in industrial and commercial environments.

Engineered for surface mounting, the 85543 series provides PCB retention with SMT compatibility. The solder termination type ensures stable attachment and connectivity on printed circuit boards.

With an operating temperature spanning from -40°C up to +85°C, this connector can withstand harsh industrial and environmental conditions, ideal for networking equipment used in telecommunications, construction, and manufacturing sectors.

The compact dimensions of 22.5 mm length, 20.9 mm width, and 13.9 mm depth facilitate installation in space-constrained setups without compromising connection quality. The design includes one port with eight ways configured at a right angle, facilitating efficient space use and cable management on circuit boards.

No integral magnetic or LED features are included, emphasizing its use as a straightforward modular jack tailored for stable Ethernet connections in Cat5e category networking systems.

The Molex 85543 Series RJ45 Connector interfaces with compatible RJ45 plugs such as the Molex 95043 Series, ensuring system versatility and broad adoption. This connector is suitable for use across electronic components, networking, and telecom applications found in industrial, commercial, and laboratory settings.

Compatible with Cat5e LAN category networks ensuring high speed data transmission. Constructed with phosphor bronze contacts plated with gold over nickel for durability and reliable conductivity. Right angle connector orientation facilitates compact PCB layouts.

Features shielded protection to reduce EMI/RFI interference. Surface mount type supports through-hole and SMT compatible PCB retention. Operating temperature range from -40°C to 85°C for extended environmental tolerance.

Measures 22.5 mm length, 20.9 mm width, and 13.9 mm depth providing compact form factor. Termination is solder type ensuring secure electrical connection. Lacks magnetic and LED indicators, focusing on robust network coupling.

Designed as per 85543 series standards to interface with mating RJ45 plugs, 95043 series recommended. Explore more reliable Connectors and electronic components with EnvMart to meet industrial, commercial, and laboratory networking needs.
