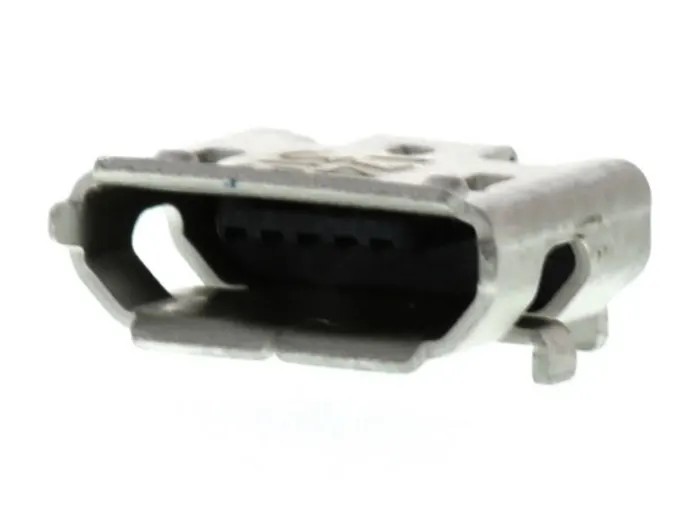

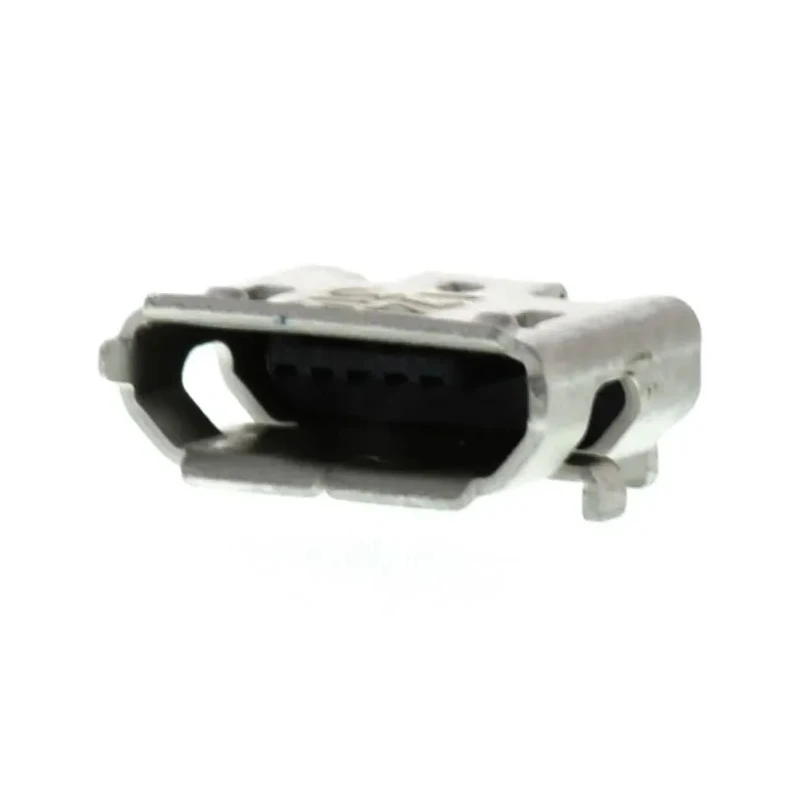

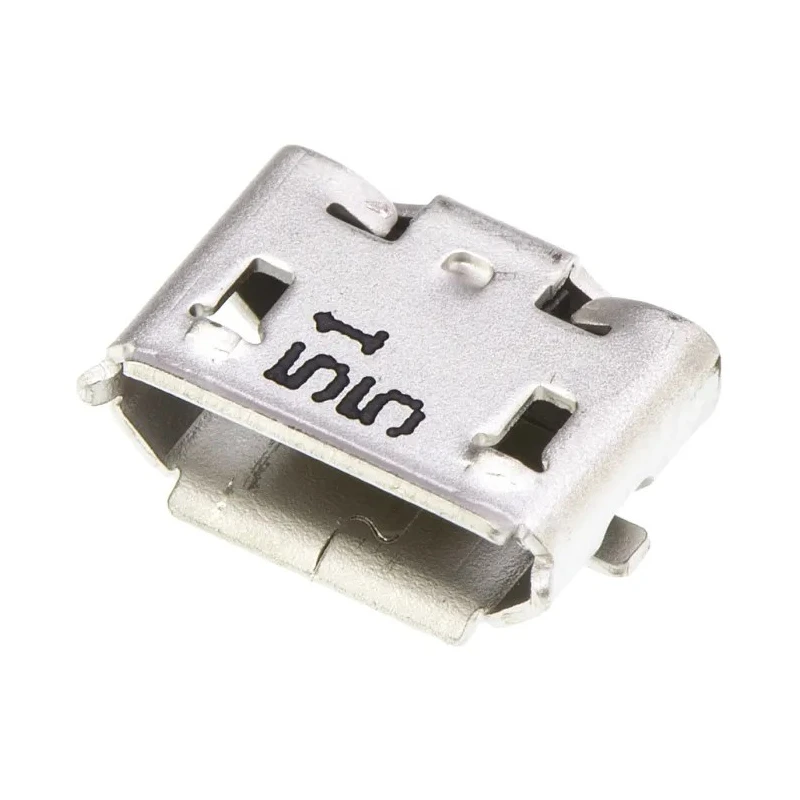

Molex Right Angle Surface Mount Female 1 Port Micro USB Type B USB Connector USB 2.0 105017-0001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.8A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 1050 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| USB Type | Micro USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Supports USB 2.0 data transfer and 1.8A current capacity.
- Surface mount type ideal for compact PCB applications.
- Wide operating temperature range from -30°C to 85°C for industrial use.
- Constructed with copper alloy contacts providing reliable conductivity.
- Features solder termination for durable connections.
- Includes latching tabs for secure mating with plugs.
- Fully shielded laser-welded stainless steel shell offers excellent EMI protection.
- Supports OTG technology allowing device-to-device communication without host.
Product Description
Molex 105017-0001 is a right angle, surface mount female USB connector engineered to the Micro USB Type B and USB 2.0 standards. This connector supports a current rating of 1.8A and voltage of 30V, making it suitable for power and data transmission in demanding environments.
Its thermoplastic housing ensures high impact resistance and tolerance to high temperatures up to 85°C, while maintaining functionality down to -30°C, ensuring operational stability in harsh industrial conditions. The copper alloy contacts provide high conductivity and low electrical resistance for reliable signal integrity.
The connector features solder termination, facilitating secure and long-lasting PCB connections. It incorporates latching tabs which hold mating plugs firmly in place to prevent accidental disconnections during use.
With a fully shielded and laser-welded stainless steel shell, the connector effectively blocks electromagnetic interference (EMI) and enhances mechanical robustness. The edge contact beam geometry supports high-speed data transfer aligned with USB 2.0 performance expectations.
This Micro USB connector incorporates OTG (On-The-Go) functionality, enabling portable devices like smartphones and tablets to communicate directly without a host computer. Its compact, space-saving right angle design is well-suited for applications where board space is limited.
Supports USB 2.0 data and power transfer. Surface mount design for efficient PCB assembly. Wide temperature range ensures use in industrial, automotive, and IT equipment. Durable construction with over 10,000 insertion cycles.
EMI shielding for interference-free operation. Ideal for smartphones, tablets, IT hardware, and vehicle battery charging applications.
This connector is manufactured in China under the Molex 1050 series, embodying quality and robust performance. For more USB Connectors and related components, explore the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 1.8A, making it suitable for power and data transmission.
It operates within a wide temperature range from -30°C to 85°C, suitable for industrial applications.
This connector is engineered to the USB 2.0 specification, supporting both data and power transfer.
It features solder termination, which facilitates secure and long-lasting connections on PCBs.
The contacts are made of copper alloy, and it has a fully shielded laser-welded stainless steel shell for EMI protection.
This model has a right angle orientation, which is ideal for compact PCB applications.
Yes, it incorporates OTG (On-The-Go) functionality, allowing direct device-to-device communication without a host.
It has 1 port, designed for single connections in applications where space is limited.
The maximum voltage rating is 30V, suitable for various power applications.
This connector is designed for over 10,000 insertion cycles, ensuring longevity in use.
It is manufactured in China, under the Molex 1050 series.
It is ideal for applications in smartphones, tablets, IT hardware, and vehicle battery charging.
