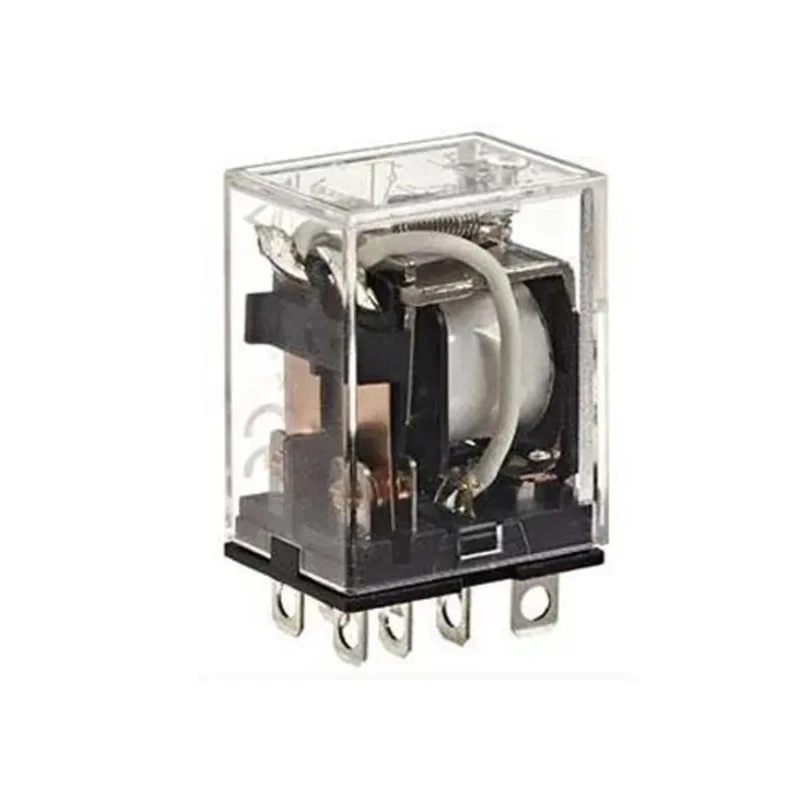

Omron Power Relay 110V DC Coil, 10A Switching Current, DPDT Contact Configuration LY2N-D2 100/110VDC

Omron LY2N-D2 100/110VDC Power Relay is a compact, electromechanical relay designed for control circuits in industrial automation, electrical systems, and HVAC applications. It features a 110V DC coil with low power consumption of 900mW, providing efficient operation in control panels. This relay utilizes a double pole double throw (DPDT) contact configuration, enabling two independent circuits to be switched simultaneously or independently.

It supports a switching current of 10A and can handle both AC and DC voltages up to 125V, making it versatile for moderate load switching needs such as motor starter interlocks, auxiliary switching tasks, and signal routing within test and measurement equipment. The silver alloy contacts contribute to low contact resistance (50mΩ), ensuring reliable and long-lasting performance.

The relay is designed for quick installation and maintenance with plug-in terminal style, suitable for panel- or socket-mounting. Its compact dimensions (28mm height, 36mm width, 21.5mm length) allow for efficient use of space in control cabinets. The coil resistance of 11kΩ defines the current drawn at the rated coil voltage and influences the driver circuitry design.

Operating within the temperature range of -25°C to 40°C, this relay is well-suited for indoor industrial environments without extreme temperature fluctuations. It conforms to international safety and performance standards with CSA and CE approvals, ensuring regulatory compliance for use in regulated installations.

Applications include industrial automation control panels requiring multiple outputs, motor starter controls, building management systems, and signal conditioning equipment. Manufactured in Japan, it provides proven quality and durability for demanding use cases.

110V DC coil voltage with 900mW power consumption. DPDT contact arrangement for controlling two circuits. Rated switching current of 10A for moderate load applications. Supports switching up to 125V AC and DC loads. Silver alloy contacts provide low resistance and reliable switching.

Plug-in terminal design for quick installation and maintenance. Operating temperature from -25°C to 40°C suitable for indoor environments. Compact dimensions: 28mm x 36mm x 21.5mm. Coil resistance of 11kΩ defines coil current requirements.

Certified with CSA and CE approvals for safety compliance. Explore the full range of Omron Power Relays and related automation control components at EnvMart for reliable industrial automation solutions.
